Creating Agent Networks

Create an agent network to connect brokers, agents, MCP servers, and LLMs into a coordinated workflow. Choose from MuleSoft Vibes, the visual canvas and code editor in Anypoint Code Builder, or the Anypoint CLI for CI/CD environments.

Before You Begin

Make sure you review the prerequisites.

Create a Network Using MuleSoft Vibes

Details

Use natural language prompts in MuleSoft Vibes to create your project. For more information, see MuleSoft Vibes Overview.

  1. In the Anypoint Code Builder activity bar, click the agent icon .

  2. Describe your agent network, including the brokers, agents, MCP servers, and LLMs you want to connect. MuleSoft Vibes generates the agent-network.yaml file, the exchange.json file, and the corresponding .agent files in the /brokers directory.

To get started, try one of these suggested prompts:

  • Create a new agent network project called "Employee Onboarding." Add a broker that coordinates an HR agent and a CRM agent, and use OpenAI as the LLM.

  • Build a Travel Planner broker that plans multi-city trips, calls a Flights MCP server for booking, and uses an LLM to generate itineraries.

  • Generate an agent network project for incident management. Include a broker that coordinates the resolution of incidents reported by customers, with subagent and orchestrator nodes.

Create a Network Using a Coding Agent

Details

Use a coding agent of your choice, like Claude or Cursor, with these publicly available MuleSoft skills on MuleSoft Developer Hub.

Create a Network Using Anypoint Code Builder

Details

If you prefer not to use MuleSoft Vibes, create a new agent network project directly from the Anypoint Code Builder UI.

  1. If you’re not logged in, log in to your Anypoint Platform account.

  2. In Anypoint Code Builder, choose one of the following:

    • In Create, select Create an Agent Network.

    • From the Command Palette, run this command: MuleSoft: Create an Agent Network Project.

  3. Enter a name for the project and select the location to create the project.

  4. Select the business group associated with the target space you created in Get Started with Agent Networks. The business group you select must be the same business group you selected when you created the target space.

  5. Select Create Project.

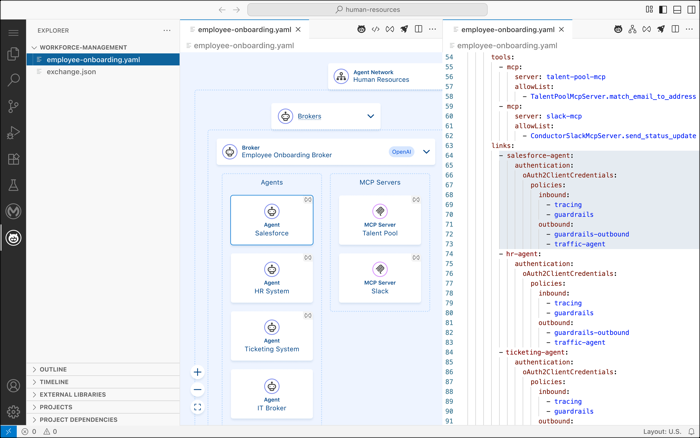

When the project opens, the agent-network.yaml file opens in the code view editor. Open the graph canvas from the action bar. For more information, see Define Your Agent Network.

Convert an Agent Network 1.0 Project to a 2.0 Project

If you have an existing agent network 1.0 project, use natural language prompts in MuleSoft Vibes to convert it to a 2.0 project. Agent network 2.0 projects use guided determinism to separate workflow steps requiring probabilistic LLM reasoning from those requiring deterministic control-flow logic.

To get started, try this suggested prompts:

  • Help me convert my V1 agent network project in this folder to a new V2 agent network project as one orchestrator node.

Agent Network Project Files

Anypoint Code Builder creates these files and directories as part of your agent network project. Together, these files define the brokers, nodes, assets, connections, and policies that make up your agent network. For full schema details, see Agent Network Project File Reference.

/my-agent-network-project
├── agent-network.yaml
├── exchange.json
└── /brokers
    ├── broker1.agent
    └── broker2.agent

  • agent-network.yaml

    The top-level configuration file for the project. This file contains:

    • A registry section that declares the assets (LLMs, MCP servers, agents) used by the project, including assets created locally and assets imported from Anypoint Exchange.

    • A context section that defines the connections (URLs, authentication) and policies that apply to those assets.

  • exchange.json

    The Anypoint Exchange manifest for the project. This file lists the project’s metadata and the Exchange assets added as dependencies. When you publish your project, Exchange uses this file to register the assets. When you add an Exchange asset to your project, its asset ID and version are recorded in this file.

  • /brokers directory

    Contains one .agent file per broker in your network. Each .agent file is an Agent Script file that defines one broker and the nodes inside it (for example, trigger, subagent, orchestrator, generator, executor, echo, and router nodes), along with the transitions between those nodes. A project can contain multiple .agent files. Each file appears as its own graph on the visual canvas.

For a complete, working example you can use as a starting point for your own agent network project, see Example: Building an IT Investigation Broker. The example walks through a fully configured agent-network.yaml, exchange.json, and /brokers directory that you can adapt to your own brokers, agents, MCP servers, and LLMs.

Create a Network Using the Anypoint CLI

If you run operations within a CI/CD environment, use Anypoint CLI’s plugin to set up, create, build, publish, and deploy agent networks. For more information, see Build Agent Networks in a CI/CD Environment.
