To Get a SOAP Header

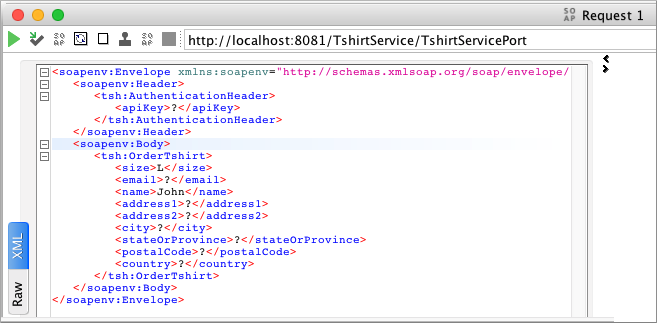

In this procedure, you retrieve a SOAP header from the request. In the SoapUI, the request window shows the soap Envelope header.

apikit-for-soap-53dc2
  1. In the SoapUI, modify the OrderTshirt request by entering a value for the API key. For example, enter 987654321 between the <apiKey> tags.

  2. In Studio, in the OrderTshirt:\soapkit-config flow, click Transform Message.

  3. Edit the DataWeave code to get the API key, which is an header property:




    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14

    %dw 2.0
    output application/java
    ns ns0 http://mulesoft.org/tshirt-service
    ---
    {
          body : {
             ns0#OrderTshirtResponse: {
               orderId: "I got a request from "
               ++ payload.body.ns0#OrderTshirt.name
               ++ " using the following auth header"
               ++ payload.headers.header.ns0#AuthenticationHeader.apiKey
            }
        } write "application/xml"
    }
  4. Save and rerun the project.

  5. In SoapUI, send a request to the OrderTshirt endpoint, and check that the response appears as follows:




    1
    2
    3
    4
    5
    6
    7

    <soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
       <soap:Body>
          <ns0:OrderTshirtResponse xmlns:ns0="http://mulesoft.org/tshirt-service">
             <orderId>I got a request from John, using the following auth header 987654321</orderId>
          </ns0:OrderTshirtResponse>
       </soap:Body>
    </soap:Envelope>
