Upgrading and Migrating Microsoft Dynamics NAV Connector to Version 3.0

Upgrade Anypoint Connector for Microsoft Dynamics NAV Connector to version 3.x.

Supported Upgrade Paths

From Version	To Version
2.x	3.x

From Version

To Version

2.x

3.x

Changes in This Release

To support Microsoft Dynamics NAV Connector in CloudHub 2.0, the client must provide SOAP requests in raw XML format instead of using Plain Old Java Objects (POJOs).

Follow these steps to send or receive SOAP requests in raw XML format:

Make sure you have the prerequisites, such as Mule 4.6.6 or later, and obtain the WSDL file.
Identify all Mule flows that use Microsoft Dynamics NAV SOAP operations.

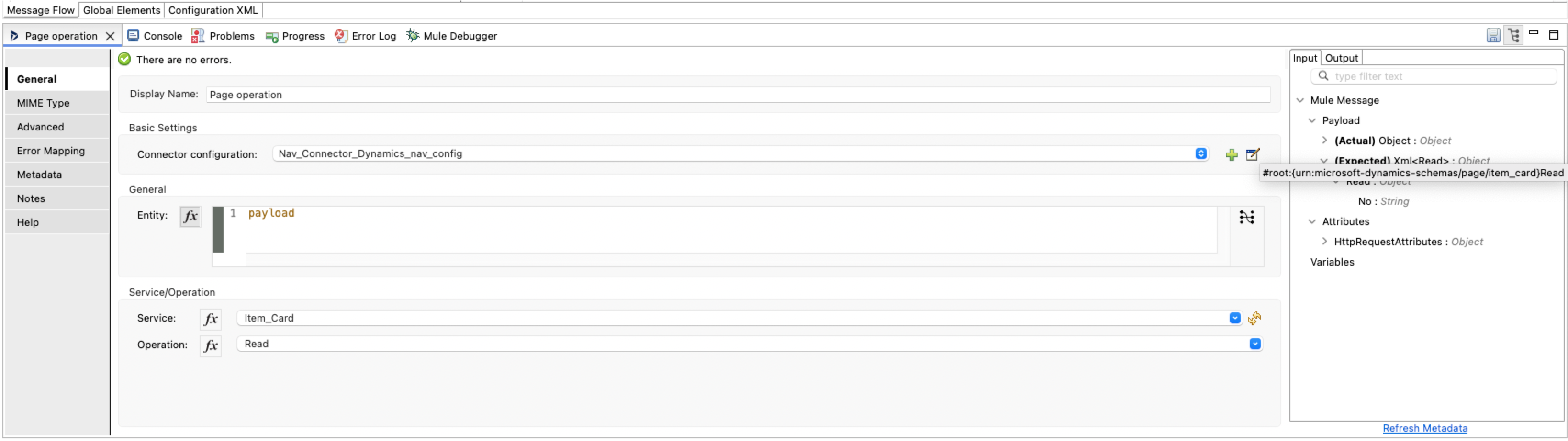

For the request body, update the content type to application/xml and provide SOAP requests in raw XML format instead of using POJOs.

XML for sending SOAP requests directly:

<item:Read xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:item="urn:microsoft-dynamics-schemas/page/item_card">
      <item:No>1000</item:No>
   </item:Read>xml

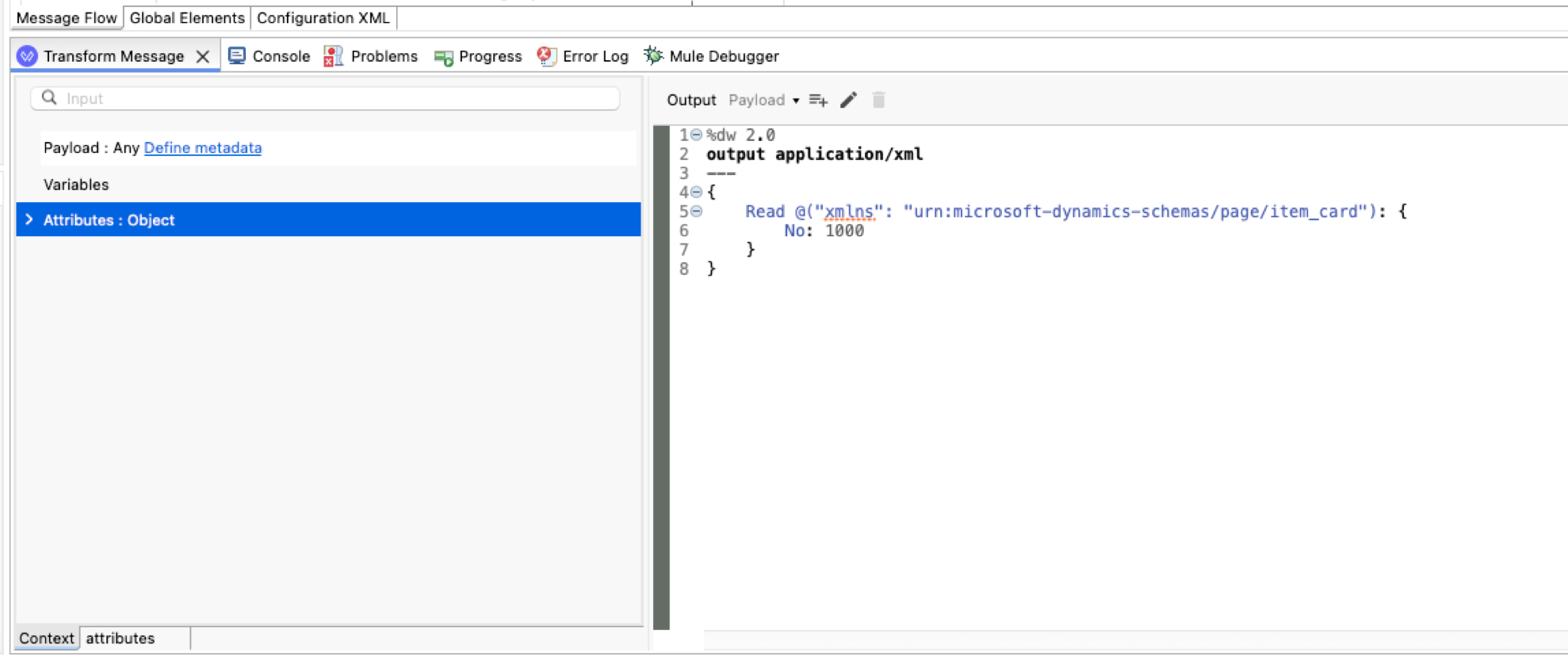

XML for using the DataWeave transform method to convert JSON to XML payload:

<ee:transform doc:name="Transform Message" doc:id="52c376d8-70de-44b3-b388-4837f0790795">
       <ee:message>
           <ee:set-payload><![CDATA[%dw 2.0
   output application/xml
   ---
   {
       Read @("xmlns": "urn:microsoft-dynamics-schemas/page/item_card"): {
           No: 1000
       }
   }]]></ee:set-payload>
       </ee:message>
   </ee:transform>xml

For the response body, you will receive SOAP responses in raw XML format and must handle these responses accordingly.

XML of a SOAP response:

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:item="urn:microsoft-dynamics-schemas/page/item_card">
   <soapenv:Header/>
   <soapenv:Body>
      <item:Read_Result>
         <item:Item>
            <item:No>Returned_1000</item:No>
            <item:Description>Returned_Awesome_Product</item:Description>
            <item:UnitPrice>100.00</item:UnitPrice>
         </item:Item>
      </item:Read_Result>
   </soapenv:Body>
</soapenv:Envelope>xml

XML for using the DataWeave method to transform XML payload:

<ee:transform doc:name="Transform Response">
    <ee:message>
        <ee:set-payload><![CDATA[%dw 2.0
output application/java
ns soapenv http://schemas.xmlsoap.org/soap/envelope/
ns item urn:microsoft-dynamics-schemas/page/item_card
---
payload.soapenv#Envelope.soapenv#Body.item#Read_Result.item#Item
]]></ee:set-payload>
    </ee:message>
</ee:transform>xml

Upgrade Prerequisites

Before you perform the upgrade, you must create a backup of your files, data, and configurations in case you need to restore to them.

Upgrade Steps

Follow these steps to perform the upgrade:

In Anypoint Studio, create a Mule project.
In the Mule Palette view, click Search in Exchange.
In Add Dependencies to Project, enter dynamics nav in the search field.
In Available modules, select Microsoft Dynamics NAV and click Add.
Click Finish.
Verify that the Microsoft Dynamics NAV Connector dependency version is 3.0.0 in the pom.xml file in the Mule project.

Studio upgrades the connector automatically.

Verify the Upgrade

After you install the latest version of the connector, follow these steps to verify the upgrade:

In Studio, verify that there are no errors in the Problems or Console views.
Verify that there are no problems in the project pom.xml file.
Test the connection to verify that the operations work.

Troubleshoot

If there are problems with caching the parameters and caching the metadata, try restarting Anypoint Studio.

Revert the Upgrade

If it is necessary to revert to the previous version of Microsoft Dynamics NAV Connector, change the ms-dynamics-nav-connector dependency version 3.0.0 in the project’s pom.xml to the previous version.

You must update the project’s pom.xml in Anypoint Studio.
