Scalability Benchmarks

Runtime Fabric is a core Kubernetes (K8s) software and works alike in all K8s environments which comply with Runtime Fabric hardware and software requirements.

These scalability benchmarks are applicable starting with Runtime Fabric 2.7.0.

Scale Limits

The following scale limits are benchmarked on Amazon Elastic Kubernetes Service (Amazon EKS) cluster.

Limitation	Description	Enforced by Runtime Fabric
Deployments per Runtime Fabric	The maximum number of deployments being managed by Runtime Fabric at any instance should not exceed 8000 for optimal performance.	Recommended
Horizontal Pod Autoscaling (HPA)	With Runtime Fabric on Amazon EKS, occasional traffic failures of approximately 0.09% may occur when scaling replicas from 1 to 8. These errors are specific to the pod scaling window, so you may experience traffic failure during scaling operations.

Limitation

Description

Enforced by Runtime Fabric

Deployments per Runtime Fabric

The maximum number of deployments being managed by Runtime Fabric at any instance should not exceed 8000 for optimal performance.

Recommended

Horizontal Pod Autoscaling (HPA)

With Runtime Fabric on Amazon EKS, occasional traffic failures of approximately 0.09% may occur when scaling replicas from 1 to 8. These errors are specific to the pod scaling window, so you may experience traffic failure during scaling operations.

Runtime Fabric functionality and management of application deployments is not affected by the following:

Size of individual applications
Size of worker nodes
Number of pods running per work node

Because Runtime Fabric is K8s based and uses cloud-native orchestration principals, it works according to the specified configuration of deployments.

Benchmarked Metrics

Review the following benchmarked metrics to understand various management metrics when compared between a nearly empty cluster and a cluster running 8000 deployments. The cluster configuration used is Runtime Fabric on AWS EKS cluster:

Configuration	Description
VPC and node groups	Default configuration done from eksctl. 3 subnets (one subnet per node group), NAT Gateway.
AWS NLB	Equipped via helm chart at nginx creation.
Node Auto Scaler	Recommended 3 GB (Memory)/200m vCore (req==limit)
Workers	m5.4x large, worker node group
Monitoring	Fixed, 1 Node, Prometheus, monitoring node group, m5.2x large
Ingress	Fixed, 2 Nodes, Nginx, ingress node group, m5.4xlarge

Configuration

Description

VPC and node groups

Default configuration done from eksctl. 3 subnets (one subnet per node group), NAT Gateway.

AWS NLB

Equipped via helm chart at nginx creation.

Node Auto Scaler

Recommended 3 GB (Memory)/200m vCore (req==limit)

Workers

m5.4x large, worker node group

Monitoring

Fixed, 1 Node, Prometheus, monitoring node group, m5.2x large

Ingress

Fixed, 2 Nodes, Nginx, ingress node group, m5.4xlarge

Runtime Fabric Restart Latency

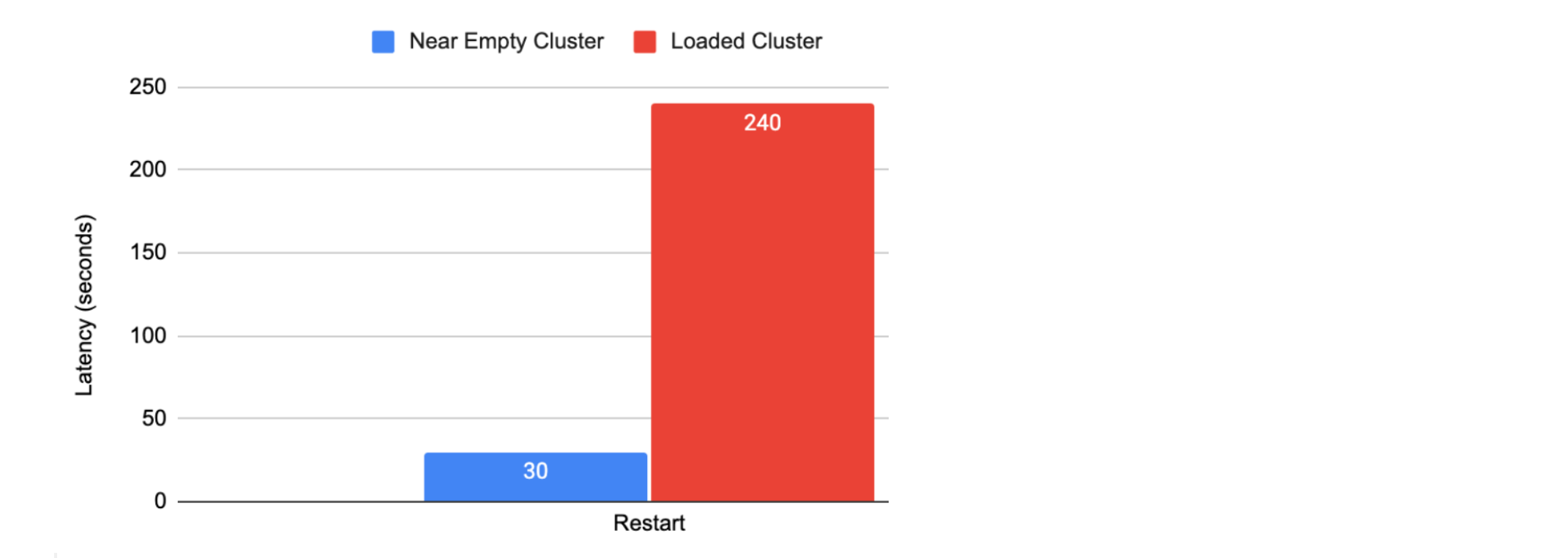

The following graphic shows how long the Runtime Fabric agent takes to restart if invoked by the customers or cluster upgrade:

Diagram that shows restart latency between near empty cluster and loaded cluster

Runtime Fabric takes approximately 190 seconds to create the apps irrespective of deployment volume. The following table shows how long it takes for a Mule app to start, stop, or delete:

App Operations	Near Empty Cluster	Loaded
Start Latency	~110 seconds	158 seconds
Stop Latency	~10 seconds	20 seconds
Delete Latency	~9 seconds	~28 seconds

App Operations

Near Empty Cluster

Loaded

Start Latency

~110 seconds

158 seconds

Stop Latency

~10 seconds

20 seconds

Delete Latency

~9 seconds

~28 seconds

The following table shows how long a node cordon operation takes to restart if there is a bad node:

Node Operation	Empty Cluster	Loaded Cluster
Cordon	~2 seconds	~2 seconds
Drain process	~4 seconds	~35 seconds

Node Operation

Empty Cluster

Loaded Cluster

Cordon

~2 seconds

Drain process

~4 seconds

~35 seconds

Considerations

Review the following scale considerations:

Runtime Fabric agent requires more than default memory and CPU to manage clusters with large-scale deployments, you can modify such values using the information in the following table. For a cluster with 8000 deployments, use at least:

Cluster Recommendations	Default	200 Node/8000 App Resource Settings
Agent Resources	Memory 200Mi request, 500Mi limit. CPU 100m request, 1vCore limit.	1000Mi (Memory)/1vCore (request == limit)
Daemon Resources	Memory 200Mi request, 300Mi limit. CPU 150m request, 200m limit.	1200Mi (Memory)/500m (request == limit)

Cluster Recommendations

Default

200 Node/8000 App Resource Settings

Agent Resources

Memory 200Mi request, 500Mi limit. CPU 100m request, 1vCore limit.

1000Mi (Memory)/1vCore (request == limit)

Daemon Resources

Memory 200Mi request, 300Mi limit. CPU 150m request, 200m limit.

1200Mi (Memory)/500m (request == limit)

The performance of large-scale deployment orchestration through Runtime Fabric is inversely proportional to the volume of deployments.
RTFCTL clusters are supported only for certain benchmarks.
Using Helm enables you to manage any cluster that requires customized resources for Runtime Fabric agent due to the size of the cluster.
When scaling up Runtime Fabric agent resource limit, consider increasing the request accordingly.
Try not to run a container unbounded by removing the limit completely. For OpenShift operators, removing the limit sets the agent to the default limit setting.
resource-cache and mule-clusterip-service services can be scaled horizontally because they are stateless.
