Receiving AS2 Messages and Sending Back MDNs

These examples show how to use Anypoint Connector for AS2 (AS2 Connector) to receive AS2 messages from a trading partner and send MDNs (Message Disposition Notifications) to that partner in response:

Receiving AS2 Messages

Creating this example involves creating a new Mule project and configuring the As 2 Listener source and Logger component.

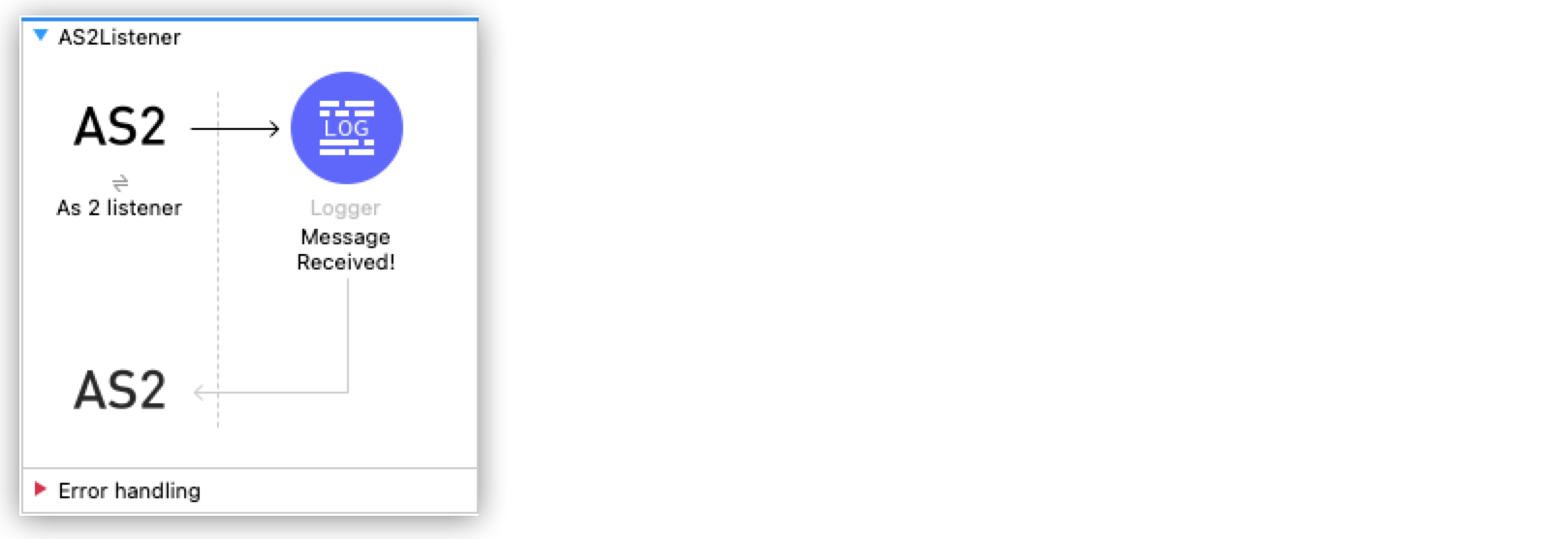

The following screenshot shows the Anypoint Studio app flow for this example:

Receive AS2 Messages App Flow

Create a Flow to Receive the Message

Configure the AS 2 Listener source to initiate a Mule flow when a call is made to the /as2-receive path on local host port 8081:

  1. In Anypoint Studio, create a new Mule project.

  2. In the Mule Palette view, select the As 2 listener source and drag it to the canvas.

  3. On the As 2 listener properties screen, optionally change the value of the Display Name field.

  4. Set the Path field to /as2-receive.

  5. Click the plus sign (+) next to the Connector configuration field to configure a global element that can be used by all instances of the As 2 listener source in the app.

  6. On the General tab, click the plus sign (+) next to the HTTP Listener field.

  7. Accept the defaults and click OK.

  8. On the General tab, configure the keystore that contains the certificates and keys:

    Field Value

    Keystore Password

    test

    Keystore Path

    as2/partnera.p12

    Private Key Password

    test

  9. On the Partners tab, specify the self and partner credentials.

    For the self credentials, configure these fields:

    Field Value

    AS2 Partner Name

    partnera

    x509 Alias

    partnera

    email

    support@partnera.com

    For the partner credentials, configure these fields:

    Field Value

    AS2 Partner Name

    partnerb

    x509 Alias

    partnerb

    email

    support@partnerb.com

Add the Logger Component

Add the Logger component to the flow and configure it to log a message that includes the payload of the received message:

  1. From the Mule Palette view, select Core and drag the Logger component next to As 2 listener.

  2. In the Logger properties screen, set the Message field to Message Received: #[payload].

Save and Test the Mule App

  1. Save the project.

  2. Run the app by clicking the project name in Package Explorer and then clicking Run > Run As > Mule Application.

    If the application starts correctly, the console displays this message:

    Mule is up and kicking

  3. Test the app by opening http://localhost:8081/as2-receive from a browser or an app like Postman and adding the required credentials.

    For each new request, the Studio console displays the received message. For example:

INFO  2022-09-09 17:15:46,409 [[MuleRuntime].uber.06: [as2-basic-example].AS2Listener.CPU_LITE @1369de96] [processor:
AS2Listener/processors/0; event: 30609f70-307c-11ed-8f5a-38f9d3713331] org.mule.runtime.core.internal.processor.
LoggerMessageProcessor: Message Received: Test Message

XML for the Receiving AS2 Messages Example

Paste this code into your Studio XML editor to quickly load the flow for this example into your Mule app:

<?xml version="1.0" encoding="UTF-8"?>
<mule xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns:as2-mule4="http://www.mulesoft.org/schema/mule/as2-mule4" xmlns="http://www.mulesoft.org/schema/mule/core"
	xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/as2-mule4 http://www.mulesoft.org/schema/mule/as2-mule4/current/mule-as2-mule4.xsd">
	<http:listener-config name="HTTP_Server_Config" doc:name="HTTP Listener config" >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>
	<as2-mule4:listener-config name="AS2_Server_Listener" doc:name="AS2 Connector Listener config" httpListenerConfig="HTTP_Server_Config" securityLevel="SIGNED_ENCRYPTED">
		<as2-mule4:self-config as2Name="partnera" x509Alias="partnera" email="support@partnera.com"/>
		<as2-mule4:partner-config as2Name="partnerb" x509Alias="partnerb" email="support@partnerb.com" />
		<as2-mule4:key-store-config keystorePassword="test" keystorePath="as2/partnera.p12" privateKeyPassword="test" />
	</as2-mule4:listener-config>
	<flow name="AS2Listener" >
		<as2-mule4:as2-listener doc:name="As 2 listener" config-ref="AS2_Server_Listener" path="/as2-receive"/>
		<logger level="INFO" doc:name="Message Received!" message="Message Received: #[payload]"/>
	</flow>
</mule>

Sending Synchronous AS2 MDNs

When your trading partner uses an AS2 listener, like in the Receiving AS2 Messages example, the listener’s MDN mode controls when a synchronous MDN is returned. The AS2 listener supports these configurations for managing synchronous MDN delivery timing:

  • Immediate

    The listener returns the MDN as soon as the incoming message is parsed and validated. The receiver’s business flow continues as a separate process after the MDN is sent. This is the default MDN Mode.

  • Auto

    The listener returns the MDN only after its internal business flow completes. This ensures that if the flow fails, a negative MDN is returned to the sender to signal a processing error.

    For this configuration, set the MDN mode to AUTO on the AS2 listener.

<as2-mule4:as2-listener doc:name="As 2 listener" config-ref="AS2_Server_Listener" path="/as2-receive" mdnMode="AUTO"/>

Sending Asynchronous AS2 MDNs

The AS2 listener validates the presence of the Disposition-Notification-To and Receipt-Delivery-Option headers when receiving an asynchronous MDN request. The listener immediately returns an HTTP 200 OK to acknowledge the inbound message. The listener uses the URL in the Receipt-Delivery-Option header to return the MDN via a new HTTP connection.

The AS2 listener supports these configurations for managing asynchronous MDN delivery timing:

  • Immediate

    The listener posts the MDN to the Receipt-Delivery-Option URL as soon as the inbound message is parsed and validated. This is the default MDN Mode.

  • Auto

    The listener posts the MDN to the Receipt-Delivery-Option URL only after its business flow completes, allowing a negative MDN to be sent if the flow fails.

    For this configuration, set the MDN mode to AUTO on the AS2 listener.

<as2-mule4:as2-listener doc:name="As 2 listener" config-ref="AS2_Server_Listener" path="/as2-receive" mdnMode="AUTO"/>
