大きなメッセージの送受信例 - Mule 4

<mule xmlns:sqs="http://www.mulesoft.org/schema/mule/sqs" xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
	xmlns:file="http://www.mulesoft.org/schema/mule/file"
	xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/file http://www.mulesoft.org/schema/mule/file/current/mule-file.xsd
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
  http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
  http://www.mulesoft.org/schema/mule/ee/core
  http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
  http://www.mulesoft.org/schema/mule/file
  http://www.mulesoft.org/schema/mule/file/current/mule-file.xsd
  http://www.mulesoft.org/schema/mule/sqs
	http://www.mulesoft.org/schema/mule/sqs/current/mule-sqs.xsd">
	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>

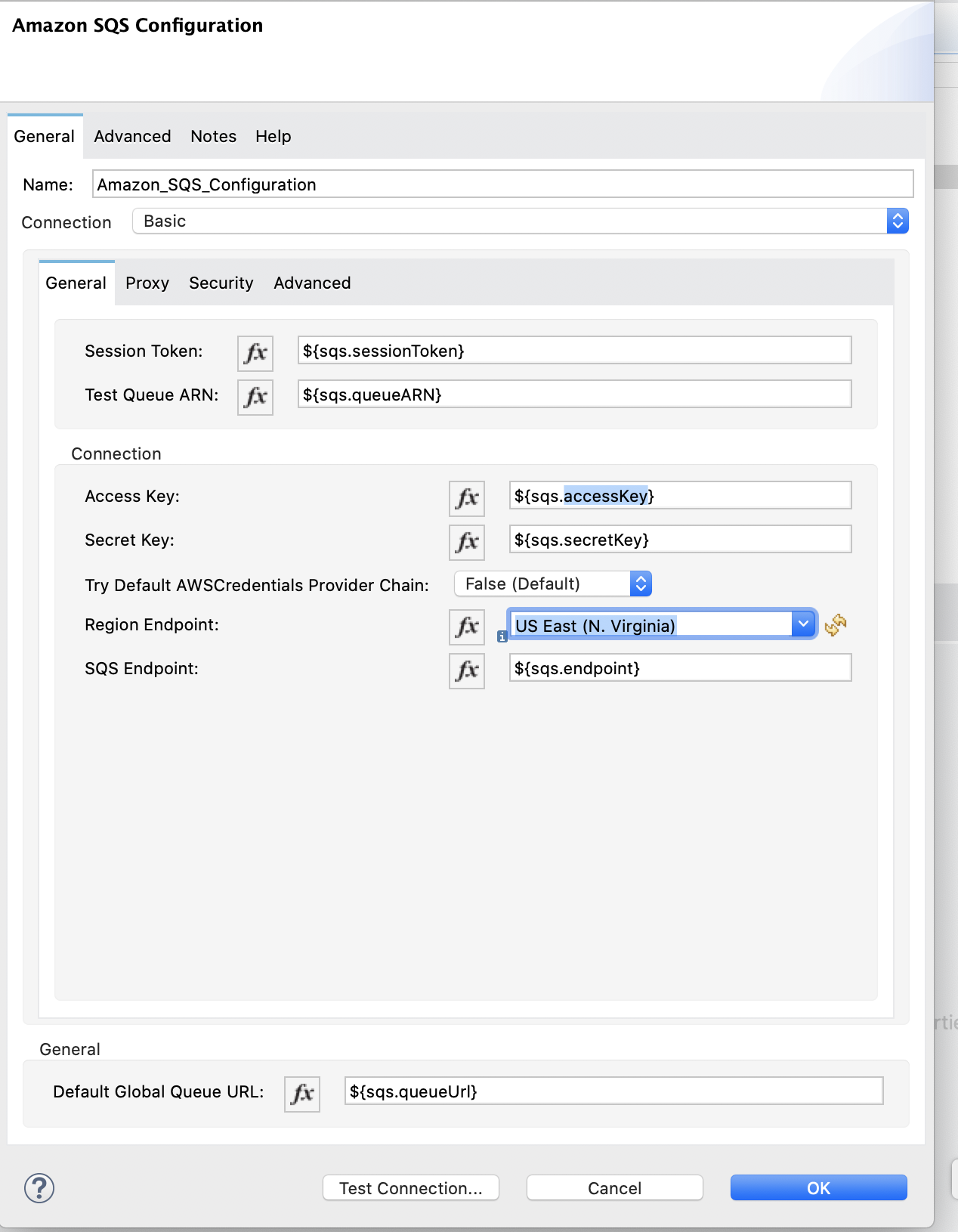

	<sqs:config name="Amazon_SQS_Configuration" doc:name="Amazon SQS Configuration"
	defaultQueueUrl="${sqs.queueUrl}" >
		<sqs:basic-connection accessKey="${sqs.accessKey}" secretKey="$sqs.secretKey}" region="us-east-1" />
	</sqs:config>

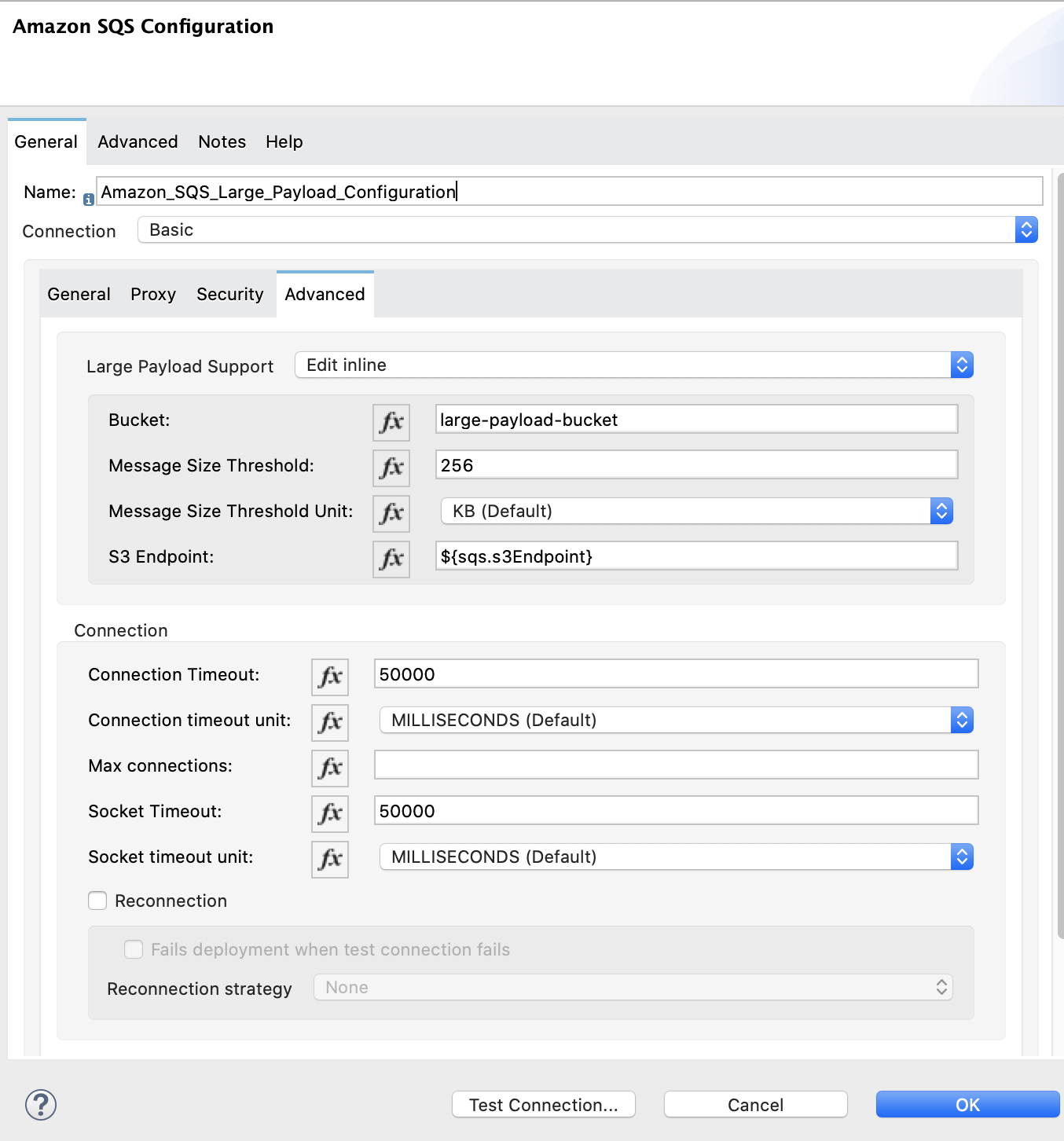

	<sqs:config name="Amazon_SQS_Large_Payload_Configuration" doc:name="Amazon SQS Configuration"
	defaultQueueUrl="${sqs.queueUrl}" >
		<sqs:basic-connection accessKey="${sqs.accessKey}" secretKey="$sqs.secretKey}" region="us-east-1" >
			<sqs:large-payload-support bucket="large-sqs-payload-bucket" messageSizeThreshold="256" messageSizeThresholdUnit="KB" />
		</sqs:basic-connection>
	</sqs:config>

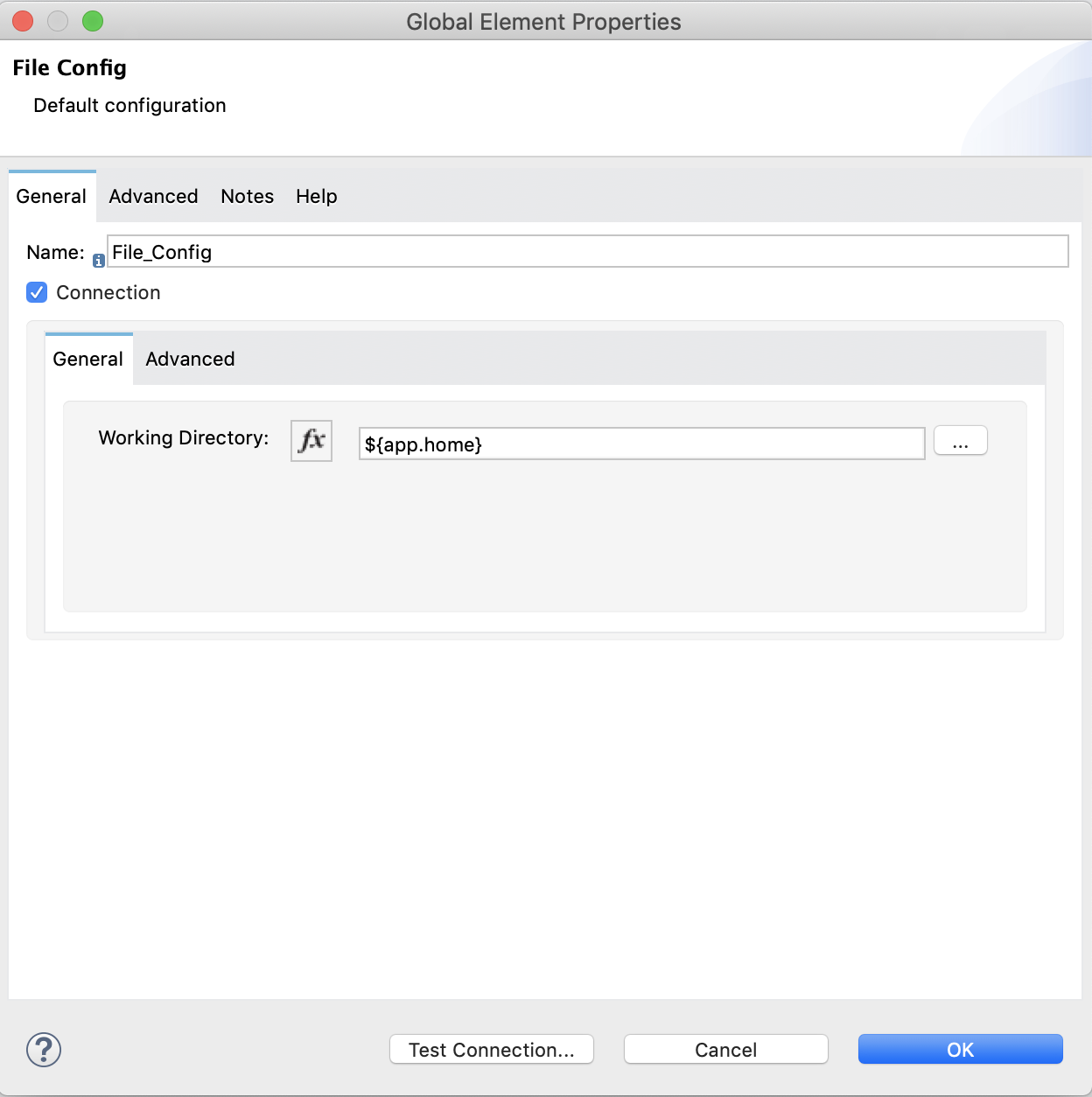

	<file:config name="File_Config" doc:name="File Config" >
		<file:connection workingDir="${app.home}" />
	</file:config>

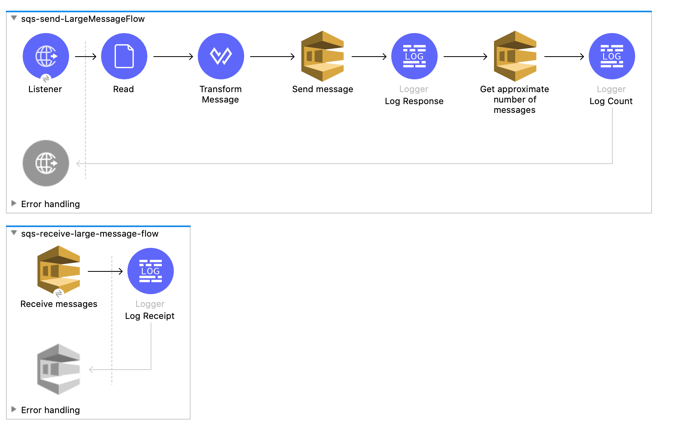

	<flow name="sqs-send-LargeMessageFlow" >

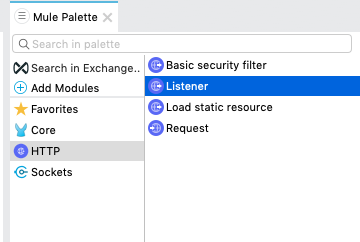

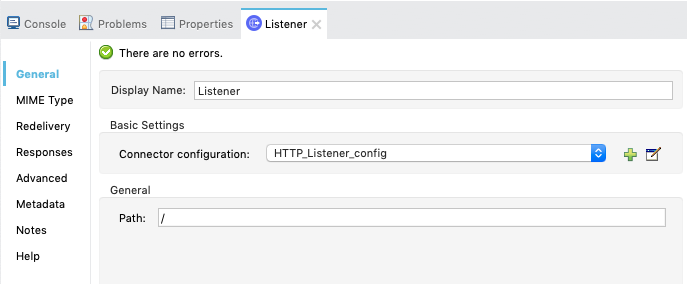

		<http:listener doc:name="Listener"
		config-ref="HTTP_Listener_config"
		path="/largePayload"/>

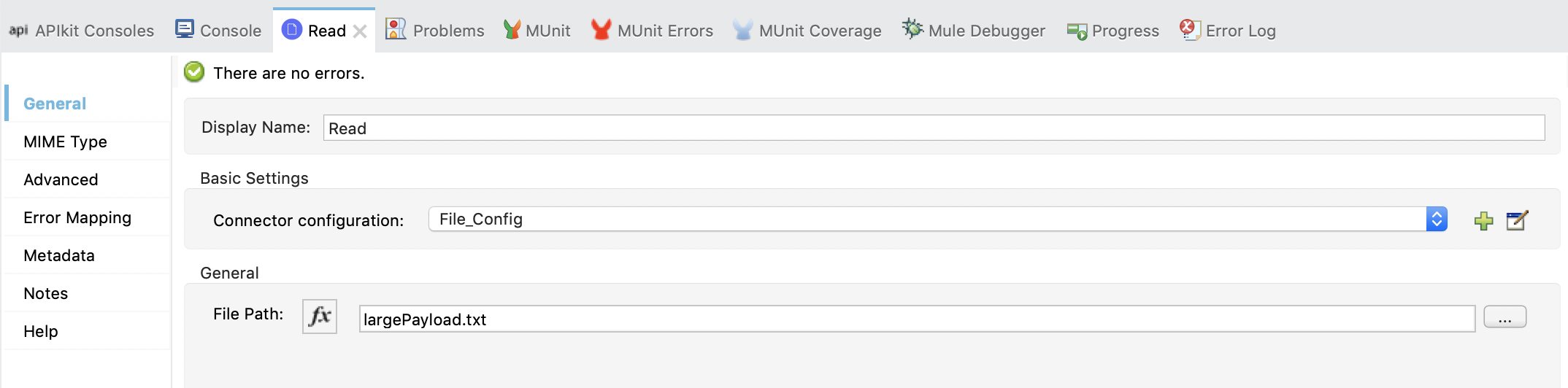

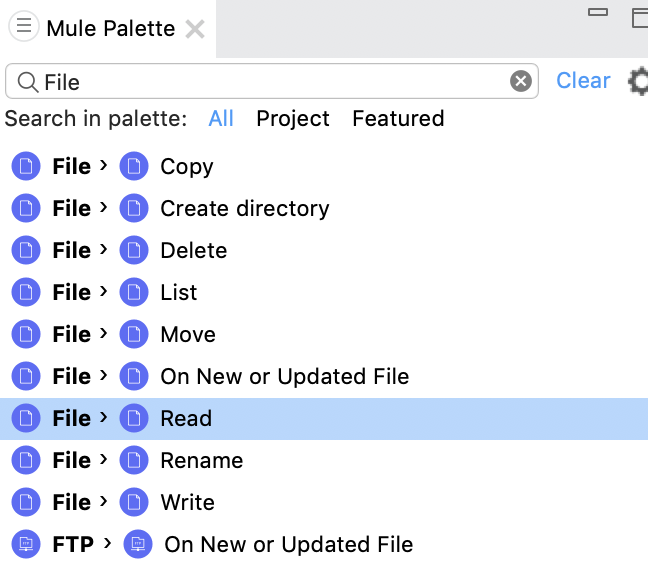

		<file:read doc:name="Read" config-ref="File_Config" path="largePayload.txt"/>

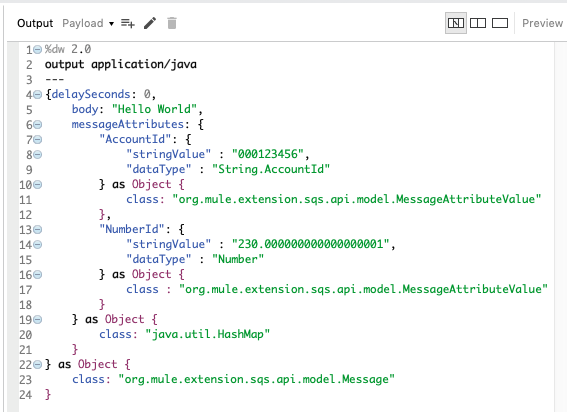

		<ee:transform doc:name="Transform Message" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	delaySeconds: 0,
	body: payload,
	messageAttributes: {
		"AccountId": {
			"stringValue" : "000123456",
			"dataType" : "String.AccountId"
		} as Object {
			class: "org.mule.extension.sqs.api.model.MessageAttributeValue"
		},
		"NumberId": {
			"stringValue" : "230.000000000000000001",
			"dataType" : "Number"
		} as Object {
			class : "org.mule.extension.sqs.api.model.MessageAttributeValue"
		}
	} as Object {
		class: "java.util.HashMap"
	}
} as Object {
	class: "org.mule.extension.sqs.api.model.Message"
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>

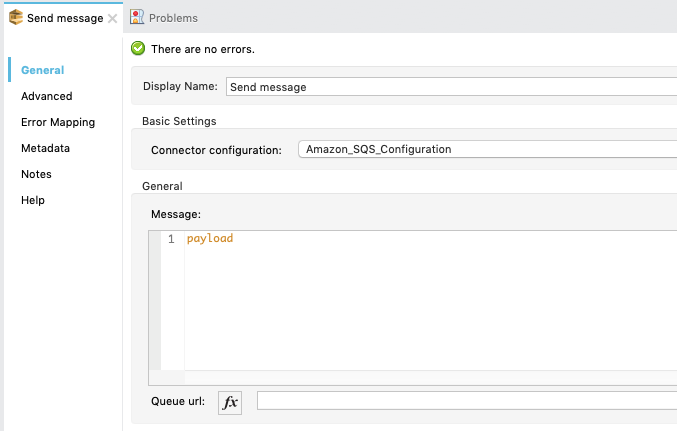

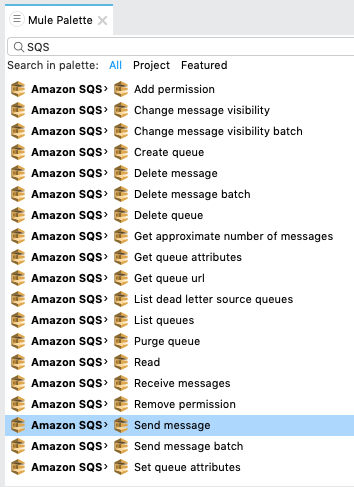

		<sqs:send-message doc:name="Send message" configref="Amazon_SQS_Large_Payload_Configuration" config-ref="Amazon_SQS_Large_Payload_Configuration"/>

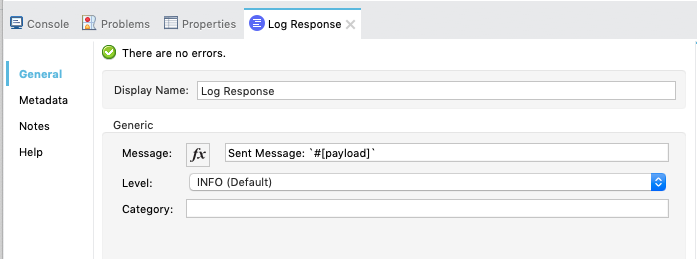

		<logger level="INFO"
		doc:name="Log Response"
		message="payload"/>

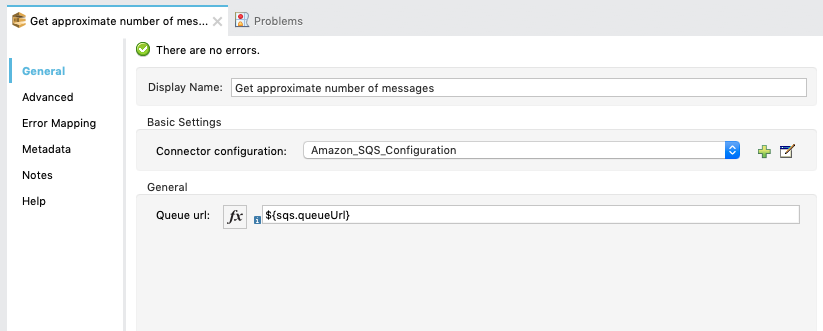

		<sqs:get-approximate-number-of-messages
		doc:name="Get approximate number of messages"
		config-ref="Amazon_SQS_Large_Payload_Configuration"
		queueUrl="${sqs.queueUrl}"/>

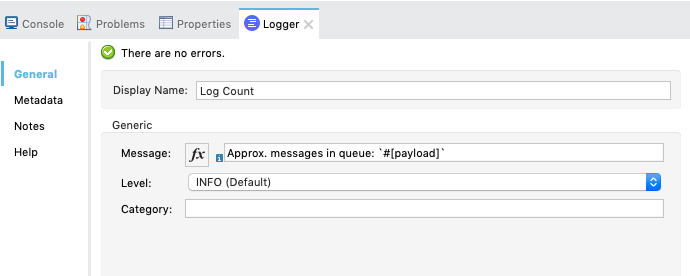

		<logger level="INFO" doc:name="Log Count"
		message="Sent Message: `#[payload]`"/>
	</flow>
	<flow name="sqs-receive-large-message-flow" >

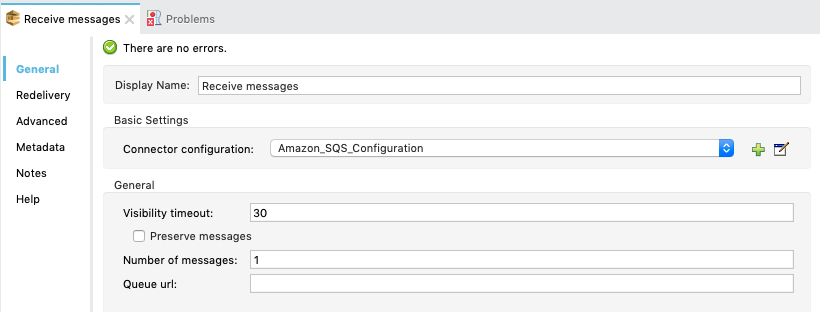

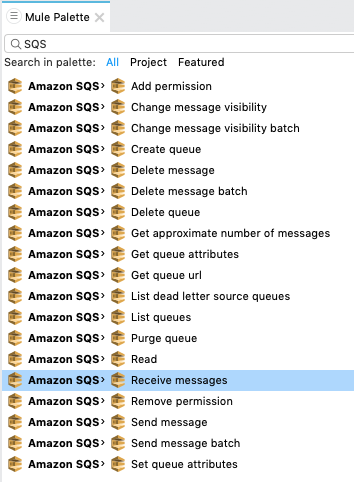

		<sqs:receivemessages doc:name="Receive messages"
		config-ref="Amazon_SQS_Large_Payload_Configuration"/>
		<logger level="INFO" doc:name="Log Receipt" />
	</flow>
</mule>
