SAP S/4HANA OData Connector 2.9 - 例

可能な場合は、Equality の会社の値に一致するように、含めない用語を変更しました。顧客の実装に対する影響を回避するために、一部の用語は変更されていません。

この例では、SAP S/4HANA OData Connector がエンティティの作成と取得、値のクエリ、エンティティの更新、関数の実行に使用されています。

Update entity 操作を使用する場合、エンティティキーをペイロードの一部として指定する必要があります。

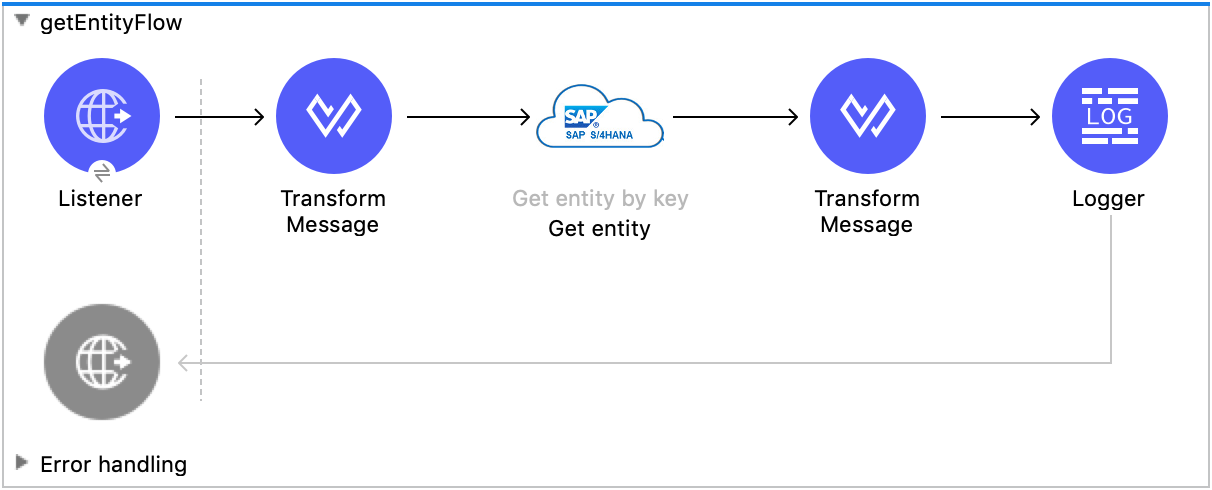

Listener、Transform Message、Get entity、Transform Message、Logger を含む Studio フロー

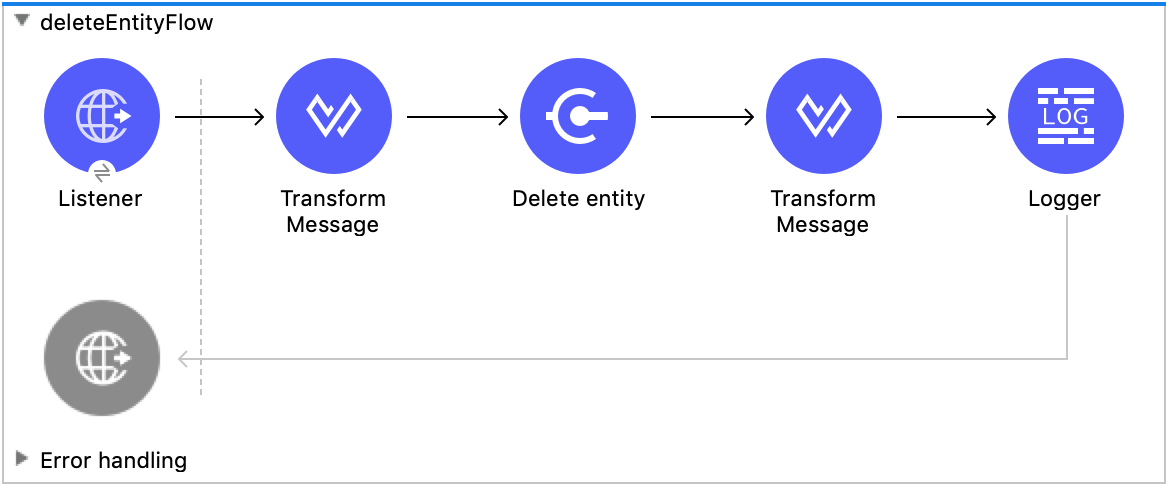

Listener、Transform Message、Delete entity、Transform Message、Logger を含む Studio フロー

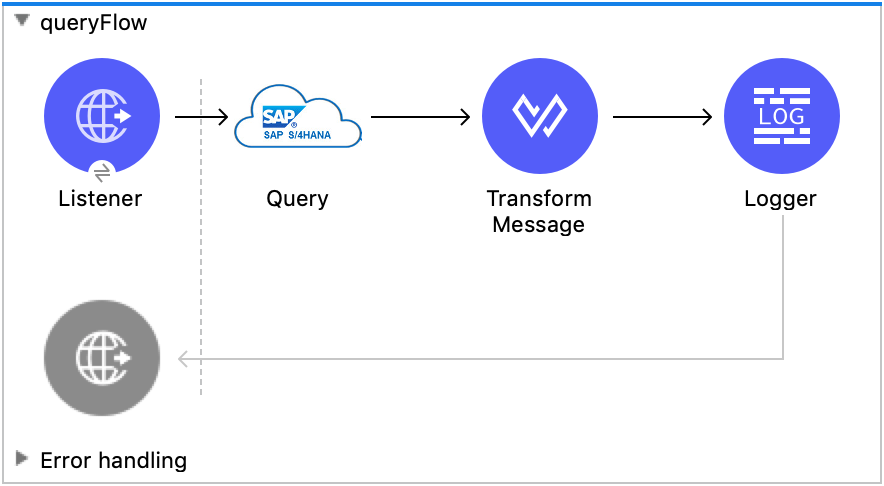

Listener、Query、Transform Message、Logger を含む Studio フロー

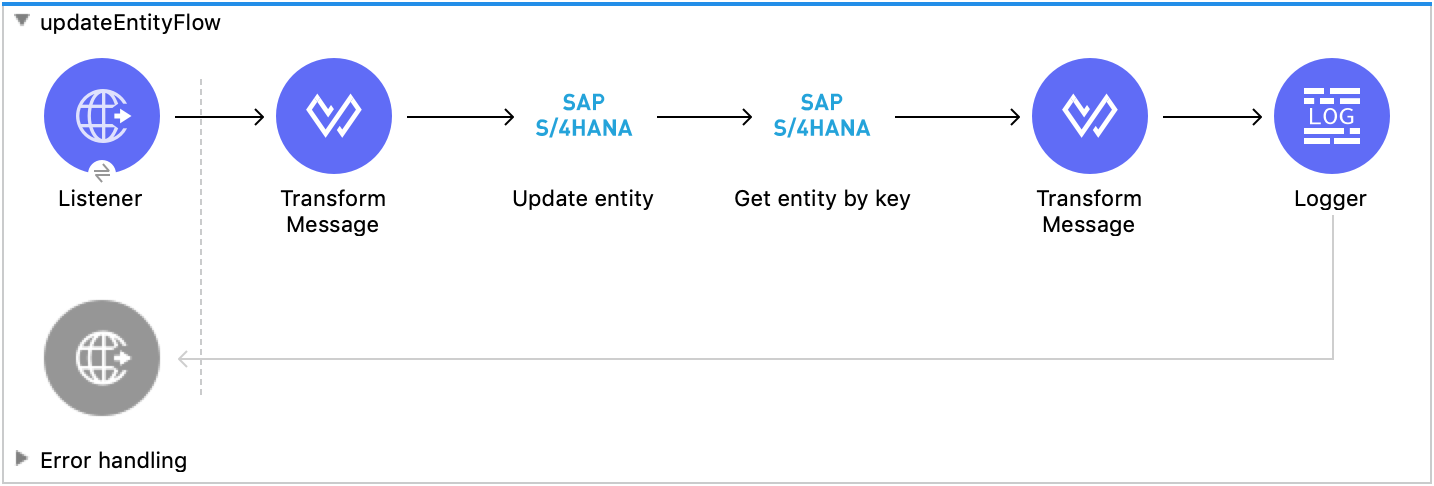

Listener、Transform Message、Update entity、Get entity by key、Transform Message、Logger を含む Studio フロー

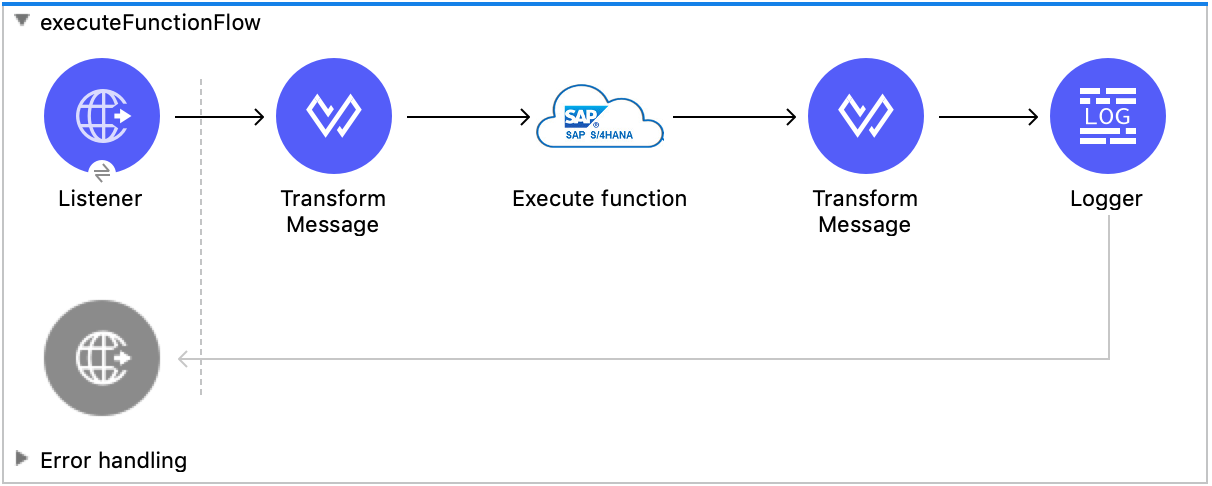

Listener、Transform Message、Execute function、Transform Message、Logger を含む Studio フロー

この例の POM ファイル

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <artifactId>sapdemo</artifactId>
  <groupId>com.mulesoft.connectors.examples</groupId>
  <version>1.0.0-SNAPSHOT</version>
  <packaging>mule-application</packaging>

  <name>mule-saphana-connector-entity-crud-demo</name>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <app.runtime>4.2.1</app.runtime>
    <mule.maven.plugin.version>3.2.8</mule.maven.plugin.version>
  </properties>

  <build>
    <plugins>
      <plugin>
        <groupId>org.mule.tools.maven</groupId>
        <artifactId>mule-maven-plugin</artifactId>
        <version>${mule.maven.plugin.version}</version>
        <extensions>true</extensions>
        <configuration>
          <classifier>mule-application</classifier>
        </configuration>
      </plugin>
    </plugins>
  </build>

  <dependencies>
    <dependency>
      <groupId>org.mule.connectors</groupId>
      <artifactId>mule-http-connector</artifactId>
      <version>1.3.1</version>
      <classifier>mule-plugin</classifier>
    </dependency>
    <dependency>
      <groupId>org.mule.connectors</groupId>
      <artifactId>mule-sockets-connector</artifactId>
      <version>1.1.2</version>
      <classifier>mule-plugin</classifier>
    </dependency>
    <dependency>
      <groupId>com.mulesoft.connector</groupId>
      <artifactId>mule-sap-s4hana-cloud-connector</artifactId>
      <version>2.2.0</version>
      <classifier>mule-plugin</classifier>
    </dependency>
  </dependencies>

  <repositories>
    <repository>
      <id>anypoint-exchange</id>
      <name>Anypoint Exchange</name>
      <url>https://maven.anypoint.mulesoft.com/api/v1/maven</url>
      <layout>default</layout>
    </repository>
    <repository>
        <id>mulesoft-releases</id>
        <name>MuleSoft Releases Repository</name>
        <url>https://repository.mulesoft.org/releases/</url>
        <layout>default</layout>
    </repository>
    <repository>
        <id>mulesoft-snapshots</id>
        <name>MuleSoft Snapshots Repository</name>
        <url>https://repository.mulesoft.org/snapshots/</url>
        <layout>default</layout>
    </repository>
  </repositories>
  <pluginRepositories>
    <pluginRepository>
        <id>mulesoft-releases</id>
        <name>mulesoft release repository</name>
        <layout>default</layout>
        <url>https://repository.mulesoft.org/releases/</url>
        <snapshots>
          <enabled>false</enabled>
        </snapshots>
    </pluginRepository>
  </pluginRepositories>
</project>

この例の XML コード

<?xml version="1.0" encoding="UTF-8"?>

 <mule xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core" xmlns:s4hana="http://www.mulesoft.org/schema/mule/s4hana"
	xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/s4hana http://www.mulesoft.org/schema/mule/s4hana/current/mule-s4hana.xsd
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd">
	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" doc:id="3440aea5-7401-47d6-8b58-ba23046e1cac" basePath="/" >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>
	<s4hana:config name="SAP_S_4HANA_Config" doc:name="SAP S 4HANA Config" doc:id="ef9c8c13-3002-4f50-b366-faa771393929" >
		<s4hana:basic-authentication-connection username="${config.username}" password="${config.password}" baseUrl="${config.serviceBaseUrl}" serviceDirectory="sap/opu/odata/sap">
		<s4hana:unlisted-services >
          		<s4hana:unlisted-service value="API_BUSINESS_PARTNER" />
          		<s4hana:unlisted-service value="API_FINANCIALPLANDATA_SRV" />
          		<s4hana:unlisted-service value="MD_CUSTOMER_MASTER_SRV_01" />
	        </s4hana:unlisted-services>
	        <s4hana:default-query-params>
          		<s4hana:default-query-param key="saml2" value="disabled" />
	        </s4hana:default-query-params>
        </s4hana:basic-authentication-connection>

	</s4hana:config>
	<configuration-properties doc:name="Configuration properties" doc:id="beca6c84-45d8-4a8c-95e7-322a9bbe2e5e" file="mule-artifact.properties" />
	<flow name="htmlFormFlow" doc:id="0380e195-ebb4-4595-8b00-c5018002c714" >
		<http:listener doc:name="Listener" doc:id="8e232545-4ec3-495e-ab9e-1122a9db9ca8" config-ref="HTTP_Listener_config" path="/"/>
		<parse-template doc:name="Parse Template" doc:id="18304b99-add7-4692-a8d0-e70e519044bc" location="form.html"/>
	</flow>
	<flow name="createEntityFlow" doc:id="720fb3fc-b09a-46ed-9949-388aad43ff67" >
		<http:listener doc:name="Listener" doc:id="84f90343-0ed6-45e0-9fa3-aa26cefb08cb" config-ref="HTTP_Listener_config" path="/create"/>
		<ee:transform doc:name="Transform Message" doc:id="ff52de8a-3ffa-4fe8-b59f-2e215af75835" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	"BusinessPartner": attributes.queryParams['business-partner-one'],
	"BankIdentification": attributes.queryParams['bank-identification-one'],
	"BankCountryKey": attributes.queryParams['bank-country-key-one'],
	"BankName": attributes.queryParams['bank-name-one'],
	"BankNumber": attributes.queryParams['bank-number-one'],
	"SWIFTCode": attributes.queryParams['swift-code-one'],
	"BankControlKey": attributes.queryParams['bank-control-key-one'],
	"BankAccountHolderName": attributes.queryParams['bank-account-holder-name-one'],
	"BankAccountName": attributes.queryParams['bank-account-name-one'],
	"IBAN": attributes.queryParams['iban-one'],
	"IBANValidityStartDate": attributes.queryParams['iban-validity-start-date-one'] as DateTime,
	"BankAccount": attributes.queryParams['bank-account-one'],
	"BankAccountReferenceText": attributes.queryParams['bank-account-reference-text-one'],
	"CollectionAuthInd": attributes.queryParams['collection-auth-ind-one'] as Boolean,
	"CityName": attributes.queryParams['city-name-one'],
	"AuthorizationGroup": attributes.queryParams['authorization-group-one']
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<s4hana:create-entity doc:name="Create entity" doc:id="eba9b06d-4834-4577-a6c2-4190a54e18b6" config-ref="SAP_S_4HANA_Config" service="API_BUSINESS_PARTNER" entityType="A_BusinessPartnerBank">
			<s4hana:entity ><![CDATA[#[%dw 2.0
output application/java
---
payload]]]></s4hana:entity>
		</s4hana:create-entity>
		<ee:transform doc:name="Transform Message" doc:id="5a8c4a4b-5efb-49c1-912c-d77b31ecdfe1" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" doc:id="b7e16d01-1741-4f17-8942-a7800877b5d2" message="#[payload]"/>
	</flow>
	<flow name="updateEntityFlow" doc:id="295a4bc8-ba58-4b92-9d05-27e63108b691" >
		<http:listener doc:name="Listener" doc:id="90e2fc87-3b32-4e28-8b32-387d5ab6a95c" config-ref="HTTP_Listener_config" path="/update"/>
		<ee:transform doc:name="Transform Message" doc:id="7be1dff2-c6f1-4075-90c9-dfa58ad6dd64" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	"BusinessPartner": attributes.queryParams['business-partner-three'],
	"BankIdentification": attributes.queryParams['bank-identification-three'],
	"BankCountryKey": attributes.queryParams['bank-country-key-three'],
	"BankName": attributes.queryParams['bank-name-three'],
	"BankNumber": attributes.queryParams['bank-number-three'],
	"SWIFTCode": attributes.queryParams['swift-code-three'],
	"BankControlKey": attributes.queryParams['bank-control-key-three'],
	"BankAccountHolderName": attributes.queryParams['bank-account-holder-name-three'],
	"BankAccountName": attributes.queryParams['bank-account-name-three'],
	"IBAN": attributes.queryParams['iban-three'],
	"IBANValidityStartDate": attributes.queryParams['iban-validity-start-date-three'] as DateTime,
	"BankAccount": attributes.queryParams['bank-account-three'],
	"BankAccountReferenceText": attributes.queryParams['bank-account-reference-text-three'],
	"CollectionAuthInd": attributes.queryParams['collection-auth-ind-three'] as Boolean,
	"CityName": attributes.queryParams['city-name-three'],
	"AuthorizationGroup": attributes.queryParams['authorization-group-three']
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<s4hana:update-entity   doc:name="Update entity" doc:id="6d32c722-f614-43e0-9d06-b8867adc4b4d" config-ref="SAP_S_4HANA_Config" service="API_BUSINESS_PARTNER" entityType="A_BusinessPartnerBank">
			<s4hana:entity ><![CDATA[#[output application/json
---
{
	BankIdentification: payload.BankIdentification,
	BusinessPartner: payload.BusinessPartner,
	AuthorizationGroup: payload.AuthorizationGroup,
	BankAccount: payload.BankAccount,
	BankAccountHolderName: payload.BankAccountHolderName,
	BankAccountName: payload.BankAccountName,
	BankAccountReferenceText: payload.BankAccountReferenceText,
	BankControlKey: payload.BankControlKey,
	BankCountryKey: payload.BankCountryKey,
	BankName: payload.BankName,
	BankNumber: payload.BankNumber,
	CityName: payload.CityName,
	CollectionAuthInd: payload.CollectionAuthInd,
	IBAN: payload.IBAN,
	IBANValidityStartDate: payload.IBANValidityStartDate as DateTime,
	SWIFTCode: payload.SWIFTCode,
}]]]></s4hana:entity>
		</s4hana:update-entity>
		<ee:transform doc:name="Transform Message" doc:id="8ab21233-6396-4039-bc2e-8911f9c0b6a3" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" doc:id="a5bea8a6-1905-4aa6-95a4-1fffb140b541" message="#[payload]"/>
	</flow>
	<flow name="getEntityFlow" doc:id="deffa7d4-da3d-45d8-8528-a579ffbdd021" >
		<http:listener doc:name="Listener" doc:id="a8e27adc-a1ce-4247-8d64-6b5350b26fe5" config-ref="HTTP_Listener_config" path="/get"/>
		<ee:transform doc:name="Transform Message" doc:id="0d8a8421-ec80-4827-9f5b-3db0515db421" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	"BusinessPartner": attributes.queryParams['business-partner-two'],
	"BankIdentification": attributes.queryParams['bank-identification-two']
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<s4hana:get-entity   doc:name="Get entity" doc:id="4244dc06-1185-4b3c-87e3-fc61f57637a1"  config-ref="SAP_S_4HANA_Config" select="*" service="API_BUSINESS_PARTNER" entityType="A_BusinessPartnerBank">
			<s4hana:key ><![CDATA[#[output application/java
---
payload]]]></s4hana:key>
		</s4hana:get-entity>
		<ee:transform doc:name="Transform Message" doc:id="9f94b79f-31a4-4480-9e26-4105d72fd6b1" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" doc:id="0e744bf8-8dc6-4d7b-934f-595bf8ac2e12" message="#[payload]"/>
	</flow>
	<flow name="queryFlow" doc:id="2d7f7e4c-316d-4876-a39c-34d94b1af167" >
		<http:listener doc:name="Listener" doc:id="9993a238-46f7-4317-9f92-4bd45951b16e" config-ref="HTTP_Listener_config" path="/query"/>
		<s4hana:query  doc:name="Query" doc:id="1cf90519-7333-4a9b-8589-eaccf2b29852" filter="#[attributes.queryParams['filter-five']]" config-ref="SAP_S_4HANA_Config" select="*" service="API_BUSINESS_PARTNER" entityType="A_BusinessPartnerBank" orderBy="#[attributes.queryParams['order-by-five']]"/>
		<ee:transform doc:name="Transform Message" doc:id="12b7cc68-7da2-4589-b7e5-3d060162cceb" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" doc:id="6cc92c7b-32c7-49a0-afd2-1c325970653f" message="#[payload]"/>
	</flow>
	<flow name="executeFunctionFlow" doc:id="37321278-e90c-49c3-848b-838f5a1a23ae" >
		<http:listener doc:name="Listener" doc:id="03436cd6-b1eb-4c2c-bad7-2837eea6b590" config-ref="HTTP_Listener_config" path="/execute"/>
		<ee:transform doc:name="Transform Message" doc:id="c72e3dfb-2009-4cf1-9e90-a30d65fb022e" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	"BusinessPartner": attributes.queryParams['business-partner-six'],
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<s4hana:execute-function doc:name="Execute function" doc:id="3b9f1217-05b5-4c10-8138-0208bbe825dd" config-ref="SAP_S_4HANA_Config" function="GET_DATACLOUD_OPURL" service="MD_CUSTOMER_MASTER_SRV_01">
		</s4hana:execute-function>
		<ee:transform doc:name="Transform Message" doc:id="ff2e2bed-ff5b-4e26-b369-79de991a9b0d" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" doc:id="d4e8caa9-a10f-4b33-a778-54a61651e628" message="#[payload]"/>
	</flow>
	<flow name="deleteEntityFlow" doc:id="49c4f82b-c46e-4ffc-ae33-f88aabdeb719" >
		<http:listener doc:name="Listener" doc:id="9997807c-aa61-4ff3-86d8-80671668eb3c" config-ref="HTTP_Listener_config" path="/delete"/>
		<ee:transform doc:name="Transform Message" doc:id="8105e13a-067c-41a0-90ff-4f94e0210e60" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	"BusinessPartner": attributes.queryParams['business-partner-four'],
	"BankIdentification": attributes.queryParams['bank-identification-four']
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<s4hana:delete-entity doc:name="Delete entity" doc:id="86048ebe-fde8-4dde-aa65-c1f322ba5519" config-ref="SAP_S_4HANA_Config" service="API_BUSINESS_PARTNER" entityType="A_BusinessPartnerBank">
			<s4hana:key ><![CDATA[#[output application/java
---
{
	BusinessPartner: payload.BusinessPartner,
	BankIdentification: payload.BankIdentification
}]]]></s4hana:key>
		</s4hana:delete-entity>
		<ee:transform doc:name="Transform Message" doc:id="d08e9a23-cff5-45cc-af5e-78bf9b278fa7" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" doc:id="a2cf1ec8-0cbe-44e1-8612-a629b485dafa" message="#[payload]"/>
	</flow>
</mule>

SAP S/4HANA OData Connector 2.9 - 例

この例の POM ファイル

この例の XML コード

関連情報
