SAP S/4HANA SOAP Connector 2.6 の例- Mule 4

XML 要求を送信して応答を出力する

この例では、XML 要求を SAP S/4HANA の SOAP API に送信して、応答を出力します。

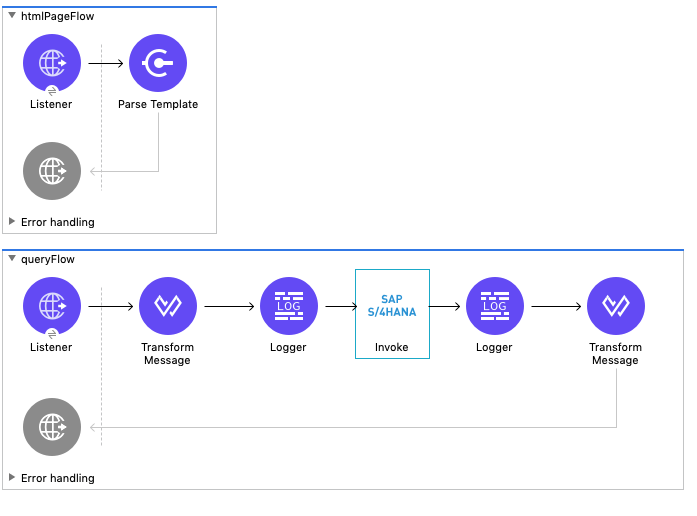

Listener と Parse Template を含む最初のフローと、Listener、Transform Message、Logger、Invoke、Logger、Transform Message を含む 2 番目のフロー

この例の POM ファイル

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.mycompany</groupId>
	<artifactId>sap-hana-soap-demo</artifactId>
    	<version>2.1.0</version>
    	<packaging>mule-application</packaging>

	<name>sap-hana-soap-demo</name>

    <properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>

		<app.runtime>4.2.0</app.runtime>
		<mule.maven.plugin.version>3.2.7</mule.maven.plugin.version>
	</properties>

	<build>
	   <plugins>
	      <plugin>
		 <groupId>org.mule.tools.maven</groupId>
		 <artifactId>mule-maven-plugin</artifactId>
		 <version>${mule.maven.plugin.version}</version>
		 <extensions>true</extensions>
	      </plugin>
	   </plugins>
	</build>

	<dependencies>
        <dependency>
            <groupId>org.mule.connectors</groupId>
            <artifactId>mule-http-connector</artifactId>
            <version>1.5.3</version>
            <classifier>mule-plugin</classifier>
        </dependency>
        <dependency>
            <groupId>org.mule.connectors</groupId>
            <artifactId>mule-sockets-connector</artifactId>
            <version>1.1.5</version>
            <classifier>mule-plugin</classifier>
        </dependency>
    	<dependency>
            <groupId>com.mulesoft.connectors</groupId>
            <artifactId>mule-sap-s4hana-soap-cloud-connector</artifactId>
            <version>2.1.0</version>
            <classifier>mule-plugin</classifier>
        </dependency>
	</dependencies>

	<repositories>
          <repository>
            <id>anypoint-exchange</id>
            <name>Anypoint Exchange</name>
            <url>https://maven.anypoint.mulesoft.com/api/v1/maven</url>
            <layout>default</layout>
        </repository>
        <repository>
            <id>mulesoft-releases</id>
            <name>MuleSoft Releases Repository</name>
            <url>https://repository.mulesoft.org/releases/</url>
            <layout>default</layout>
        </repository>
    </repositories>
    <pluginRepositories>
        <pluginRepository>
            <id>mulesoft-releases</id>
            <name>mulesoft release repository</name>
            <layout>default</layout>
            <url>https://repository.mulesoft.org/releases/</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </pluginRepository>
    </pluginRepositories>

</project>xml
コンテンツを展開する

この例の XML コード

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
	xmlns:s4hana-soap="http://www.mulesoft.org/schema/mule/s4hana-soap"
	xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns="http://www.mulesoft.org/schema/mule/core"
	xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core
	http://www.mulesoft.org/schema/mule/core/current/mule.xsd
	http://www.mulesoft.org/schema/mule/http
	http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
	http://www.mulesoft.org/schema/mule/s4hana-soap
	http://www.mulesoft.org/schema/mule/s4hana-soap/current/mule-s4hana-soap.xsd
	http://www.mulesoft.org/schema/mule/ee/core
	http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd">
	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config">
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>

	<configuration-properties
		doc:name="Configuration properties"
		file="mule-artifact.properties" />

	<s4hana-soap:config
		name="SAP_S4_HANA_SOAP_Config"
		doc:name="SAP S4 HANA SOAP Config" >
		<s4hana-soap:basic-authentication-connection
			baseUrl="${config.serviceBaseUrl}"
			username="${config.username}"
			password="${config.password}" />
	</s4hana-soap:config>
	<flow name="htmlPageFlow" >
		<http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/"/>
		<parse-template doc:name="Parse Template"  location="form.html"/>
	</flow>
	<flow name="queryFlow"  >
		<http:listener doc:name="Listener"  config-ref="HTTP_Listener_config" path="/query"/>
		<ee:transform doc:name="Transform Message"  >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/xml
ns ns0 http://sap.com/xi/SAPGlobal/Global
---
{
	ns0#CreditManagementAccountByIDQuery: {
		MessageHeader: {
			ID: "@" as String,
			CreationDateTime: now()
		},
		Selection: {
			DebtorPartyInternalID: attributes.queryParams['DebtorPartyInternalID'] as String,
			CreditsegmentInternalID: attributes.queryParams['CreditsegmentInternalID'] as String
		},
		LanguageCode: "ZZZ" as String
	}
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO"
			doc:name="Logger"
			message="Request #[payload]"/>
		<s4hana-soap:invoke
			doc:name="Invoke"
			config-ref="SAP_S4_HANA_SOAP_Config"
			service="https://mysap.s4hana.instance.com/sap/bc/srt/wsdl_ext/flv_10002S111AD1/srvc_url/sap/bc/srt/scs_ext/sap/creditmanagementaccountbyidqu1"
			operation="CreditManagementAccountByIDQuery_In">
		</s4hana-soap:invoke>
		<logger level="INFO" doc:name="Logger"  message="Response #[payload]"/>
		<ee:transform doc:name="Transform Message" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/xml
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
	</flow>
</mule>xml
コンテンツを展開する

XML 要求を送信して複製アウトバウンドメッセージを受信する

この例では、XML 要求を SAP S/4HANA の SOAP API に送信して、複製アウトバウンドメッセージを受信し、オブジェクトストアに保存します。

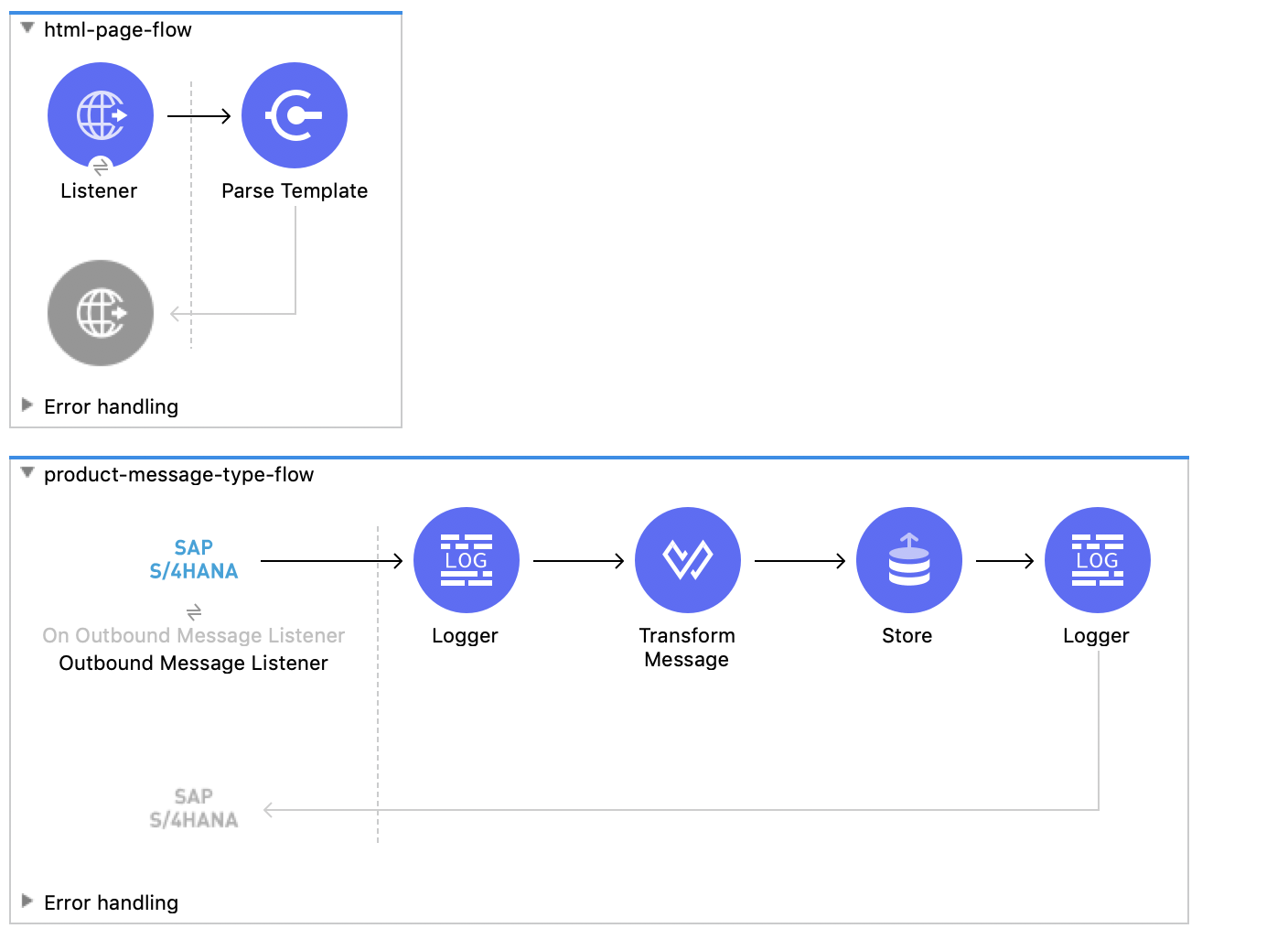

Listener と Parse Template を含む最初のフローと、Outbound Message Listener、Logger、Transform Message、Store、Logger を含む 2 番目のフロー

このフローは、オブジェクトストアからアウトバウンドメッセージを取得します。

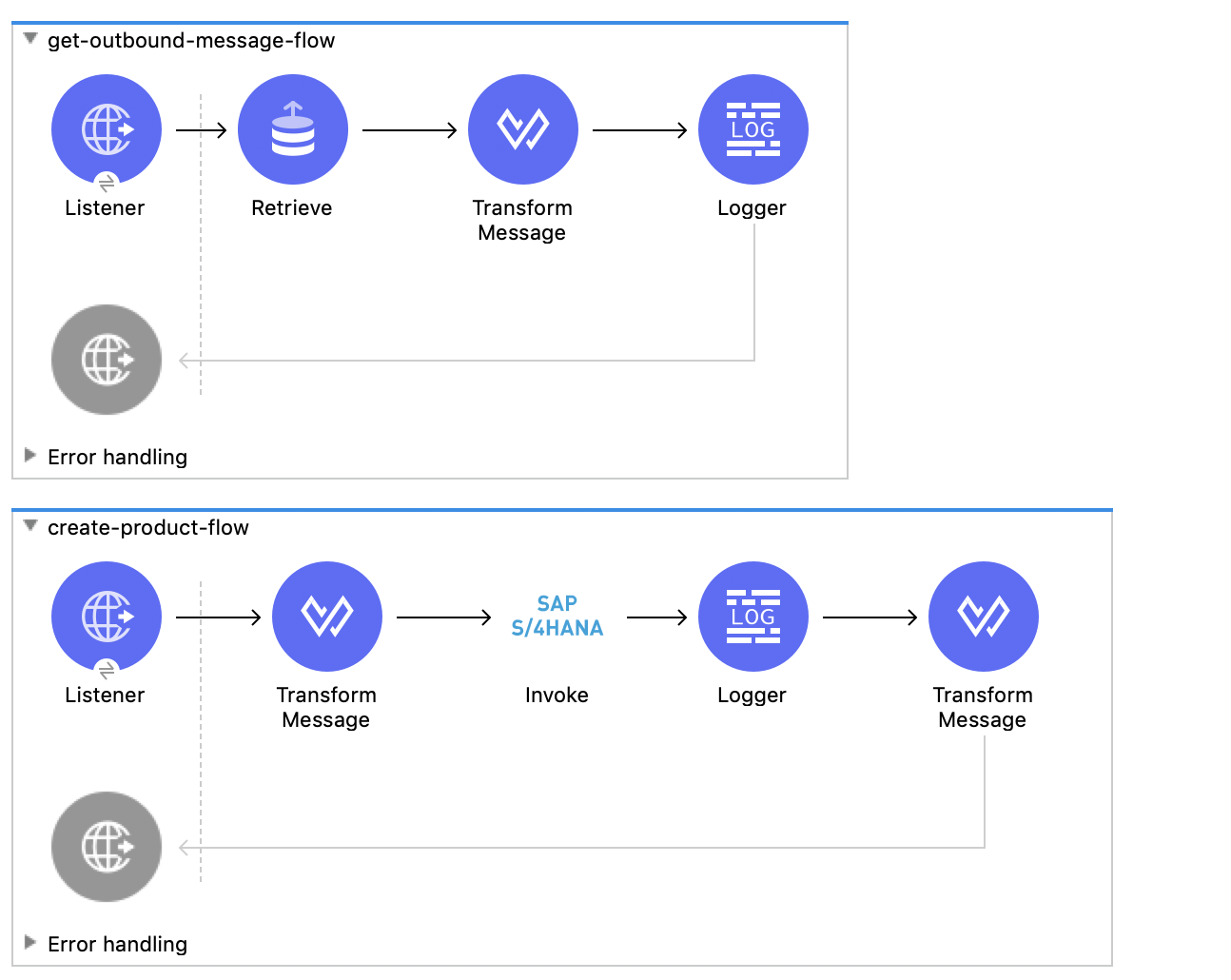

Listener、Retrieve、Transform Message、Logger を含む 1 番目のフローと、Listener、Transform Message、Invoke、Logger、Transform Message を含む 2 番目のフロー

この例の POM ファイル

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>

    <groupId>com.mulesoft.connectors.examples</groupId>
    <artifactId>sap-hana-soap-demo</artifactId>
    <version>2.1.0</version>
    <packaging>mule-application</packaging>

	<name>s4-hana-source-demo</name>

    <properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>

		<app.runtime>4.3.0</app.runtime>
		<mule.maven.plugin.version>3.3.5</mule.maven.plugin.version>
	</properties>

	<build>
		<plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-clean-plugin</artifactId>
				<version>3.0.0</version>
			</plugin>
			<plugin>
				<groupId>org.mule.tools.maven</groupId>
				<artifactId>mule-maven-plugin</artifactId>
				<version>${mule.maven.plugin.version}</version>
				<extensions>true</extensions>
				<configuration>
				<classifier>mule-application</classifier>
                </configuration>
			</plugin>
		</plugins>
	</build>

	<dependencies>
        <dependency>
            <groupId>org.mule.connectors</groupId>
            <artifactId>mule-http-connector</artifactId>
            <version>1.5.17</version>
            <classifier>mule-plugin</classifier>
        </dependency>
        <dependency>
            <groupId>com.mulesoft.connectors</groupId>
            <artifactId>mule-sap-s4hana-soap-cloud-connector</artifactId>
            <version>2.1.0</version>
            <classifier>mule-plugin</classifier>
        </dependency>
		<dependency>
            <groupId>org.mule.connectors</groupId>
            <artifactId>mule-objectstore-connector</artifactId>
            <version>1.1.5</version>
            <classifier>mule-plugin</classifier>
        </dependency>
    </dependencies>

	<repositories>
          <repository>
            <id>anypoint-exchange-v2</id>
            <name>Anypoint Exchange</name>
            <url>https://maven.anypoint.mulesoft.com/api/v2/maven</url>
            <layout>default</layout>
        </repository>
        <repository>
            <id>mulesoft-releases</id>
            <name>MuleSoft Releases Repository</name>
            <url>https://repository.mulesoft.org/releases/</url>
            <layout>default</layout>
        </repository>
    </repositories>
    <pluginRepositories>
        <pluginRepository>
            <id>mulesoft-releases</id>
            <name>mulesoft release repository</name>
            <layout>default</layout>
            <url>https://repository.mulesoft.org/releases/</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </pluginRepository>
    </pluginRepositories>

</project>xml
コンテンツを展開する

この例の XML コード

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:wsc="http://www.mulesoft.org/schema/mule/wsc"
	xmlns:s4hana="http://www.mulesoft.org/schema/mule/s4hana" xmlns:os="http://www.mulesoft.org/schema/mule/os"
	xmlns:tls="http://www.mulesoft.org/schema/mule/tls"
	xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core" xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns:s4hana-soap="http://www.mulesoft.org/schema/mule/s4hana-soap" xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/s4hana-soap http://www.mulesoft.org/schema/mule/s4hana-soap/current/mule-s4hana-soap.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/tls http://www.mulesoft.org/schema/mule/tls/current/mule-tls.xsd
http://www.mulesoft.org/schema/mule/os http://www.mulesoft.org/schema/mule/os/current/mule-os.xsd
http://www.mulesoft.org/schema/mule/s4hana http://www.mulesoft.org/schema/mule/s4hana/current/mule-s4hana.xsd">
	<http:listener-config name="HTTPS_Listener_config" doc:name="HTTP Listener config">
		<http:listener-connection host="0.0.0.0" port="8082" protocol="HTTPS"/>
	</http:listener-config>

	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>

	<s4hana-soap:listener-config name="SAP_S4_HANA_SOAP_Listener_config" doc:name="SAP S4 HANA SOAP Listener config" httpListenerConfig="HTTPS_Listener_config" />

	<s4hana-soap:config name="SAP_S4_HANA_SOAP_Config" doc:name="SAP S4 HANA SOAP Config" >
		<s4hana-soap:basic-authentication-connection baseUrl="${config.serviceBaseUrl}" username="${config.username}" password="${config.password}" />
	</s4hana-soap:config>

	<os:object-store name="Product" doc:name="Object store" entryTtl="30" />

	<flow name="html-page-flow" >
		<http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/"/>
		<parse-template doc:name="Parse Template" location="form.html"/>
	</flow>
	<flow name="product-message-type-flow">
		<s4hana-soap:outbound-message-listener doc:name="Outbound Message Listener" config-ref="SAP_S4_HANA_SOAP_Listener_config" messageType="ProductMDMBulkReplicateRequestMessage" path="/productmdmbulkreplicaterequest" />
		<logger level="INFO" doc:name="Logger" message='#["Outbound message received in the Product flow"]'/>
		<ee:transform doc:name="Transform Message">
			<ee:message>
				<ee:set-payload><![CDATA[%dw 2.0
output application/xml
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<os:store doc:name="Store" key="#[payload.ProductMDMBulkReplicateRequestMessage.ProductMDMReplicateRequestMessage.Product.ProductInternalID]" objectStore="Product"/>
		<logger level="INFO" doc:name="Logger" message="#[payload]" />
	</flow>

	<flow name="get-outbound-message-flow">
		<http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/get"/>
		<os:retrieve doc:name="Retrieve" key="#[attributes.queryParams.productId]" objectStore="Product">
			<os:default-value ><![CDATA[There is no such productId]]></os:default-value>
		</os:retrieve>
		<ee:transform doc:name="Transform Message">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" message="#[payload]"/>
	</flow>

	<flow name="create-product-flow">
		<http:listener doc:name="Listener" config-ref="HTTP_Listener_config" path="/create"/>
		<ee:transform doc:name="Transform Message">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/xml
ns ns0 http://sap.com/xi/SAPGlobal20/Global
---
{
	ns0#ProductMDMBulkReplicateRequestMessage: {
		MessageHeader: {
			ID: "FA163E6728911EDAA5BFCEE21420A568",
			UUID: "fa163e67-2891-1eda-a5bf-cee21420a568",
			CreationDateTime: "20200528121755",
			SenderBusinessSystemID: "SOBASIC",
			RecipientBusinessSystemID: "0M2JP31"
		},
		ProductMDMReplicateRequestMessage: {
			MessageHeader: {
				ID: "FA163E6728911EDAA5BFCEE21420A568",
				UUID: "fa163e67-2891-1eda-a5bf-cee21420a568",
				CreationDateTime: "20200528121755",
				SenderBusinessSystemID: "SOBASIC",
				RecipientBusinessSystemID: "0M2JP31"
			},
			Product @(plantListCompleteTransmissionIndicator: true , salesSpecificationListCompleteTransmissionIndicator: true , valuationAreaListCompleteTransmissionIndicator: true , descriptionListCompleteTransmissionIndicator: true , globalTradeItemNumberListCompleteTransmissionIndicator: true , quantityConversionListCompleteTransmissionIndicator: true , quantityCharacteristicListCompleteTransmissionIndicator: true , changeOrdinalNumberValue: "00000000000000000001" , reconciliationPeriodCounterValue: "1"): {
				ProductInternalID: attributes.queryParams.productId,
				UnformattedProductInternalID: "TEST444",
				ReceiverProductInternalID: attributes.queryParams.productId,
				UnformattedReceiverProductInternalID: "TEST444",
				ProductTypeCode: "MAT",
				IndustrySectorCode: "M",
				BaseMeasureUnitCode: "BG",
				BasicViewMaintainedIndicator: true,
				Description @(actionCode: "04"): {
					Description @(languageCode: "en"): "Material test 444"
				},
				QuantityConversion @(actionCode: "04"): {
					Quantity @(unitCode: "BG"): "1.0",
					CorrespondingQuantity @(unitCode: "BG"): "1.0"
				},
				StorageSpecification: {
					MinimumRemaininigShelfLifeCode: 0
				}
			}
		}
	}
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<s4hana-soap:invoke doc:name="Invoke" config-ref="SAP_S4_HANA_SOAP_Config" service="https://my303109-api.s4hana.ondemand.com/sap/bc/srt/wsdl_ext/flv_10002S111AD1/srvc_url/sap/bc/srt/scs_ext/sap/productmdmbulkreplicaterequest" operation="ProductMDMBulkReplicateRequest_In" customQueryParams='#["MessageId" : uuid()]'/>
		<logger level="INFO" doc:name="Logger" message='#["Product successfully created"]'/>
		<ee:transform doc:name="Transform Message">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
payload.body]]></ee:set-payload>
			</ee:message>
		</ee:transform>
	</flow>
</mule>xml
コンテンツを展開する

SAP S/4HANA SOAP Connector 2.6 の例- Mule 4

XML 要求を送信して応答を出力する

この例の POM ファイル

この例の XML コード

XML 要求を送信して複製アウトバウンドメッセージを受信する

この例の POM ファイル

この例の XML コード

関連情報
