Amazon SQS Connector 5.10 の例 - Mule 4

<mule xmlns:sqs="http://www.mulesoft.org/schema/mule/sqs" xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
	xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
  http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
  http://www.mulesoft.org/schema/mule/ee/core
  http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
  http://www.mulesoft.org/schema/mule/sqs
	http://www.mulesoft.org/schema/mule/sqs/current/mule-sqs.xsd">
	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>
	<sqs:config name="Amazon_SQS_Configuration" doc:name="Amazon SQS Configuration"
	defaultQueueUrl="${sqs.queueUrl}" >
		<sqs:basic-connection accessKey="${sqs.accessKey}" secretKey="$sqs.secretKey}" region="us-east-1" sqsEndpoint="${sqs.endpoint}"/>
	</sqs:config>

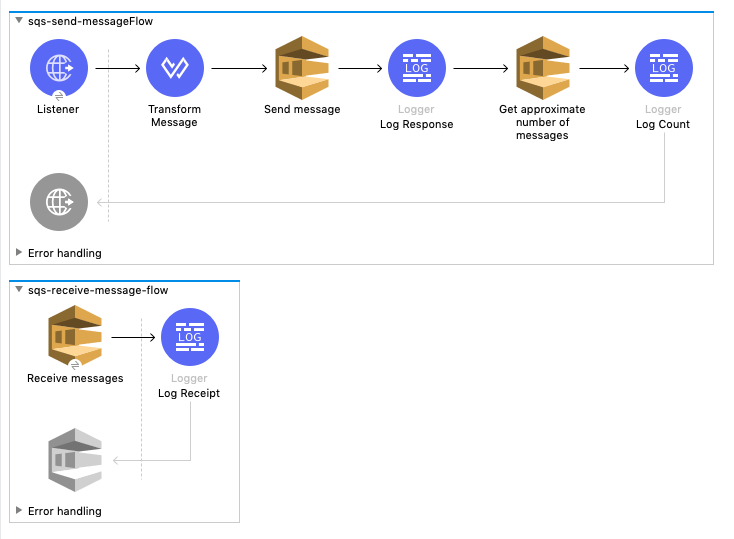

	<flow name="sqs-send-messageFlow" >
		<http:listener doc:name="Listener"
		config-ref="HTTP_Listener_config"
		path="/"/>
		<ee:transform doc:name="Transform Message" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	delaySeconds: 0,
	body: "Hello World",
	messageAttributes: {
		"AccountId": {
			"stringValue" : "000123456",
			"dataType" : "String.AccountId"
		} as Object {
			class: "org.mule.extension.sqs.api.model.MessageAttributeValue"
		},
		"NumberId": {
			"stringValue" : "230.000000000000000001",
			"dataType" : "Number"
		} as Object {
			class : "org.mule.extension.sqs.api.model.MessageAttributeValue"
		}
	} as Object {
		class: "java.util.HashMap"
	}
} as Object {
	class: "org.mule.extension.sqs.api.model.Message"
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<sqs:send-message doc:name="Send message" configref="Amazon_SQS_Configuration"/>
		<logger level="INFO"
		doc:name="Log Response"
		message="payload"/>
		<sqs:get-approximate-number-of-messages
		doc:name="Get approximate number of messages"
		config-ref="Amazon_SQS_Configuration"
		queueUrl="${sqs.queueUrl}"/>
		<logger level="INFO" doc:name="Log Count"
		message="Sent Message: `#[payload]`"/>
	</flow>
	<flow name="sqs-receive-message-flow" >
		<sqs:receivemessages doc:name="Receive messages"
		config-ref="Amazon_SQS_Configuration"/>
		<logger level="INFO" doc:name="Log Receipt" />
	</flow>
</mule>
