ユーザー定義型 (UDT) を使用する Oracle ストアドプロシージャーのコールの例 - Mule 4

--CREATE CUSTOM DATA TYPES (UDTs)
CREATE OR REPLACE TYPE PHONE_NUMBER AS object(areaCode VARCHAR2(10), phoneNumber VARCHAR2(20));
CREATE OR REPLACE TYPE PHONE_NUMBER_ARRAY AS VARRAY(10) OF PHONE_NUMBER;
CREATE OR REPLACE TYPE PERSON IS OBJECT(firstName VARCHAR(50), surname VARCHAR(50), age NUMBER, phoneNumbers PHONE_NUMBER_ARRAY);
CREATE OR REPLACE TYPE PEOPLE IS TABLE OF PERSON;

CREATE OR REPLACE TYPE PHONE_BOOK AS VARRAY(10) OF VARCHAR2(200);


--CREATE TABLE HUMANS;
CREATE TABLE HUMANS(
  firstName VARCHAR(50),
  surname VARCHAR(50),
  age NUMBER,
  phoneNumbers PHONE_NUMBER_ARRAY
);

--CREATE STORED PROCEDURE
create or replace procedure PROC_INSERT_HUMANS(people IN PEOPLE, contactList OUT PHONE_BOOK) IS
    phoneBook PHONE_BOOK := PHONE_BOOK();
    BEGIN
        FOR idx IN people.first .. people.last LOOP
            IF people(idx).age < 100 THEN
                INSERT INTO HUMANS(firstName, surname, age, phoneNumbers)
                VALUES(people(idx).firstName, people(idx).surname, people(idx).age, people(idx).phoneNumbers);
            END IF;
        END LOOP;

        FOR humanContact IN (SELECT * FROM  HUMANS h, TABLE(h.phoneNumbers) n) LOOP
            phoneBook.EXTEND(1);
            phoneBook(phoneBook.COUNT) := humanContact.surname || ',' || humanContact.firstname || ':' || humanContact.areaCode ||'-'|| humanContact.phoneNumber;
        END LOOP;

        contactList := phonebook;

        COMMIT;
END PROC_INSERT_HUMANS;

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
	xmlns:db="http://www.mulesoft.org/schema/mule/db" xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns="http://www.mulesoft.org/schema/mule/core"
	xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/db http://www.mulesoft.org/schema/mule/db/current/mule-db.xsd">

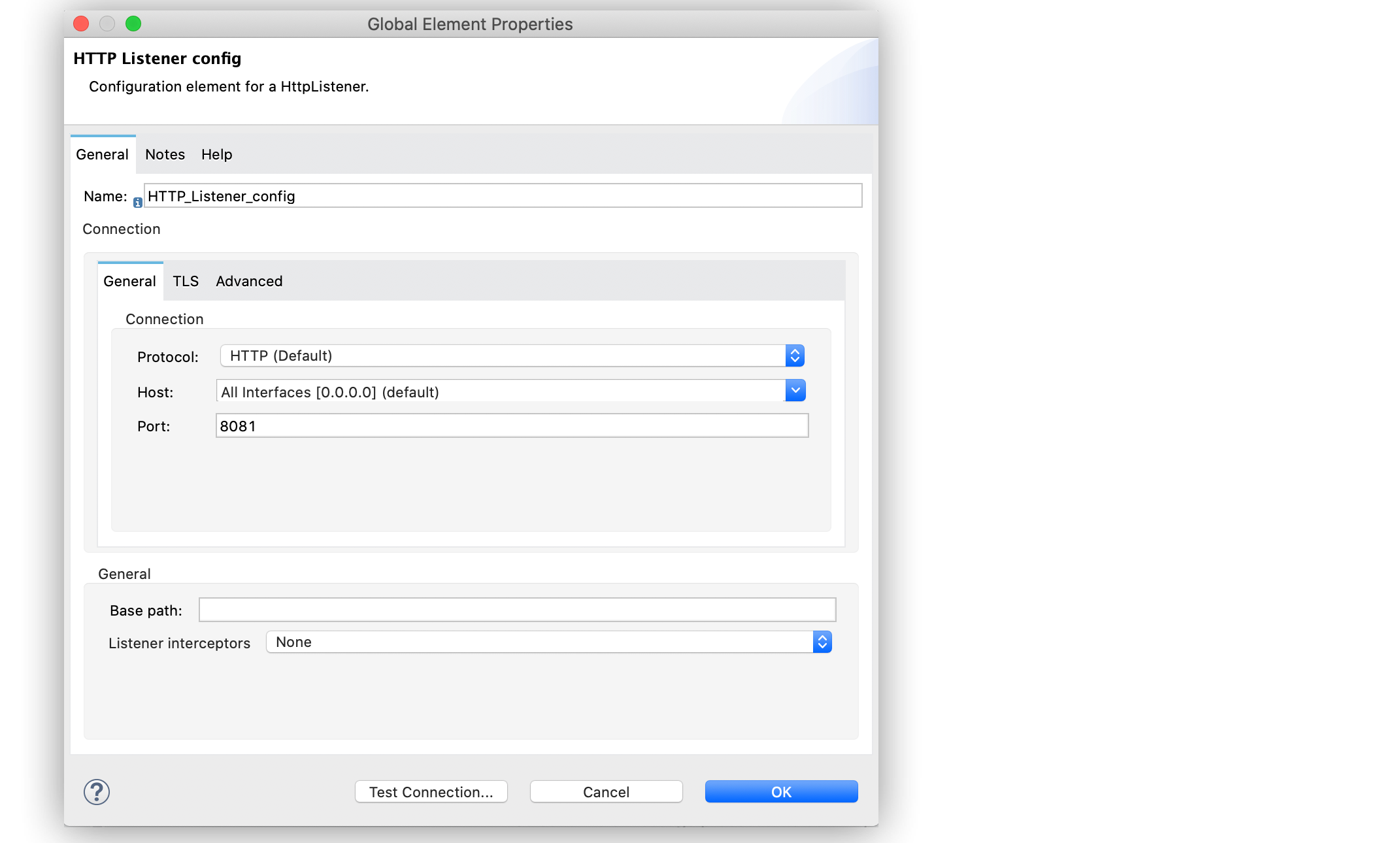

	<http:listener-config name="HTTP_Listener_config" >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>

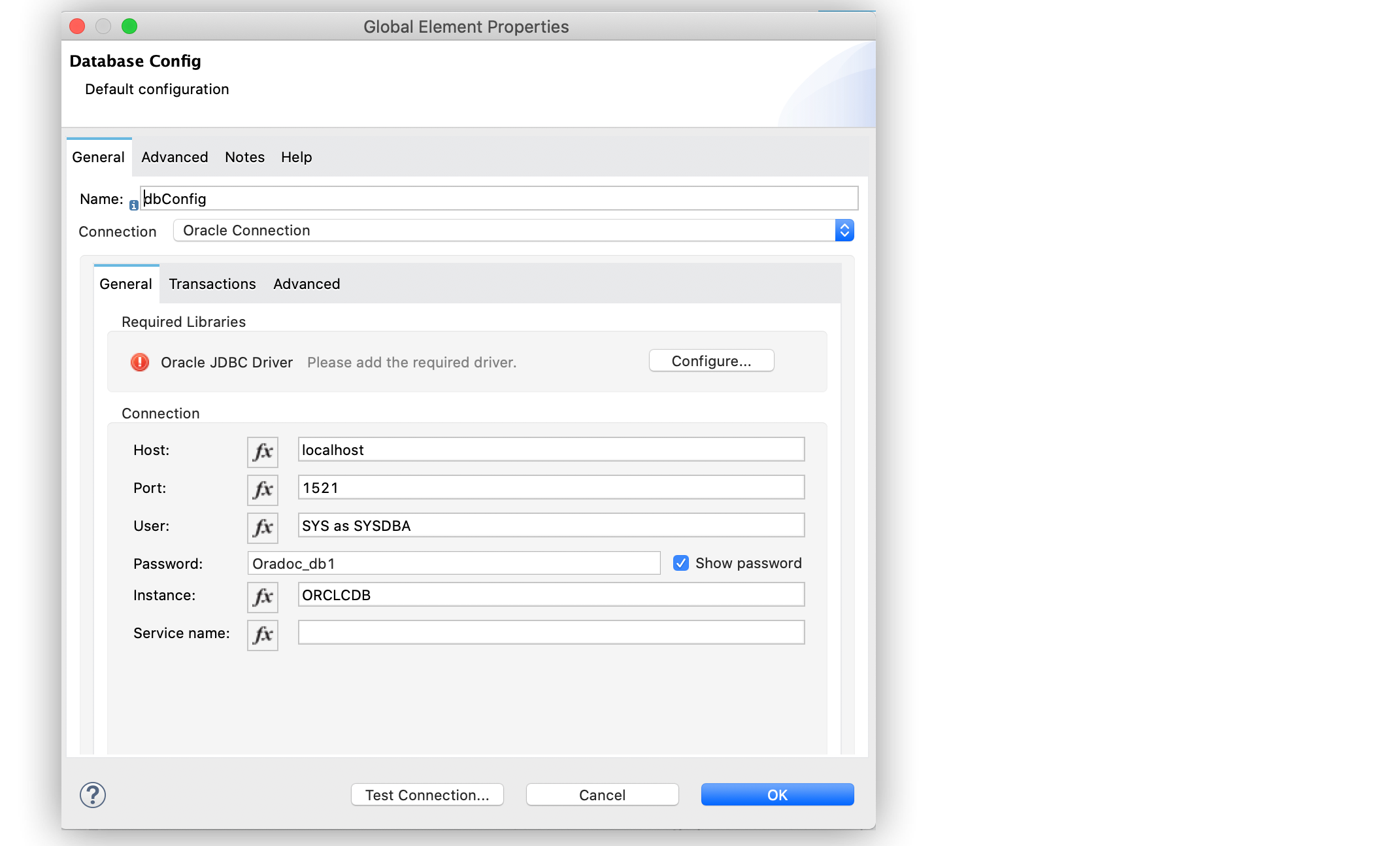

	<db:config name="dbConfig" >
		<db:oracle-connection host="localhost" user="SYS as SYSDBA" password="Oradoc_db1" instance="ORCLCDB">

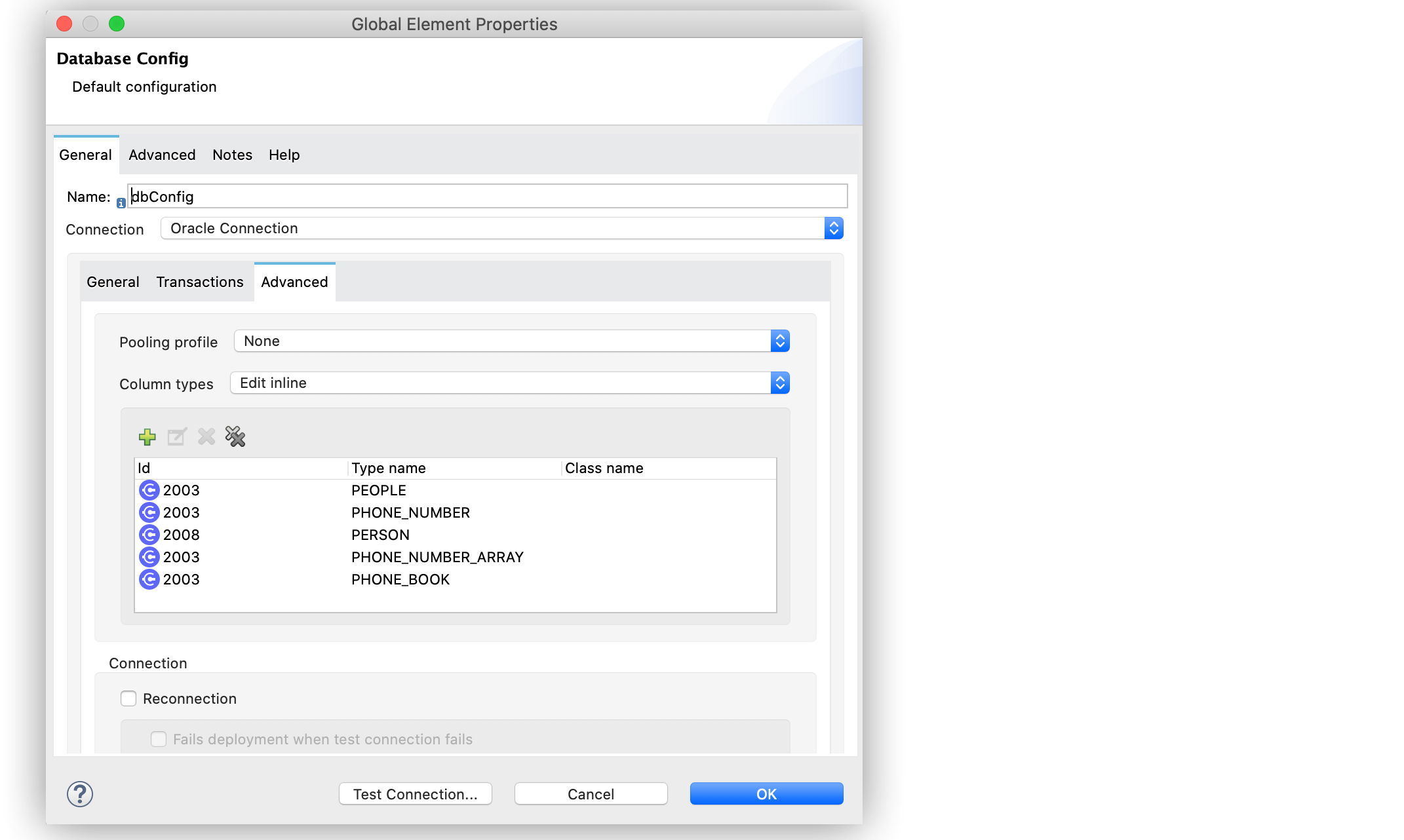

			<db:column-types>
				<db:column-type id="2003" typeName="PEOPLE"/>
				<db:column-type id="2003" typeName="PHONE_NUMBER"/>
				<db:column-type id="2008" typeName="PERSON" />
				<db:column-type id="2003" typeName="PHONE_NUMBER_ARRAY"/>
				<db:column-type id="2003" typeName="PHONE_BOOK"/>
			</db:column-types>
		</db:oracle-connection>
	</db:config>

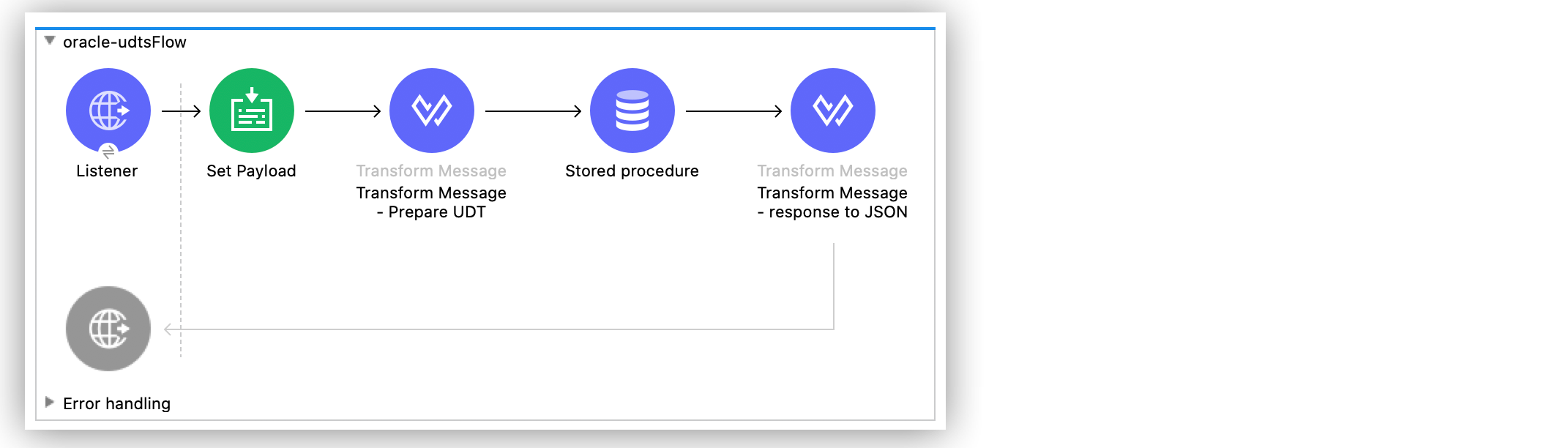

	<flow name="oracle-udtsFlow" >
		<http:listener config-ref="HTTP_Listener_config" path="/oracle"/>

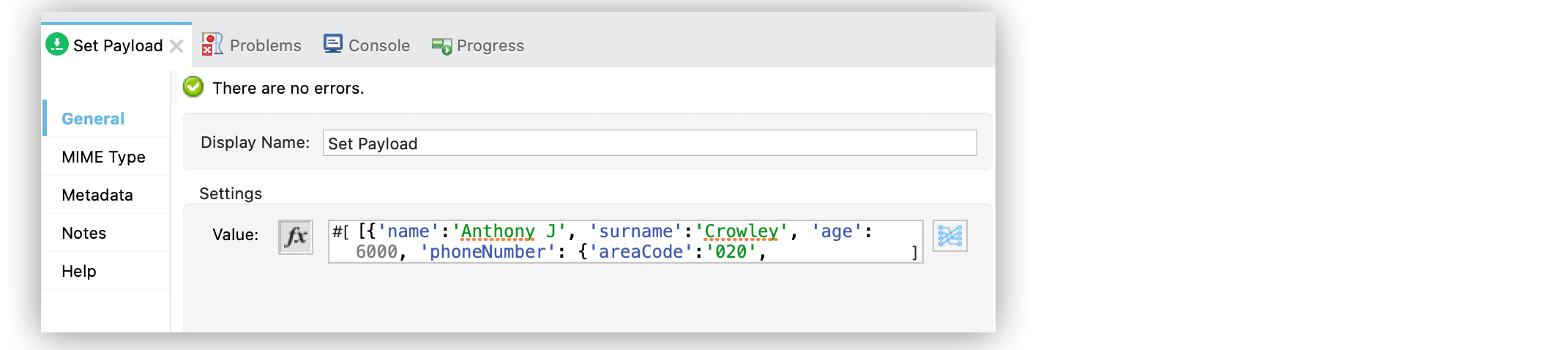

		<set-payload value="#[[{'name':'Anthony J', 'surname':'Crowley', 'age': 6000, 'phoneNumber': {'areaCode':'020', 'phoneNumber': '777'}},
	{'name':'A.Z', 'surname':'Fell', 'age': 6000, 'phoneNumber':{'areaCode':'020', 'phoneNumber': '888'}},
	{'name':'Adam', 'surname':'Young', 'age': 11, 'phoneNumber':{'areaCode':'046', 'phoneNumber': '666'}},
	{'name':'Anathema', 'surname':'Device', 'age': 27, 'phoneNumber':{'areaCode':'020', 'phoneNumber': '123'}},
	]]" mimeType="application/java"/>


	<ee:transform doc:name="Transform Message - Prepare UDT">
			<ee:variables>

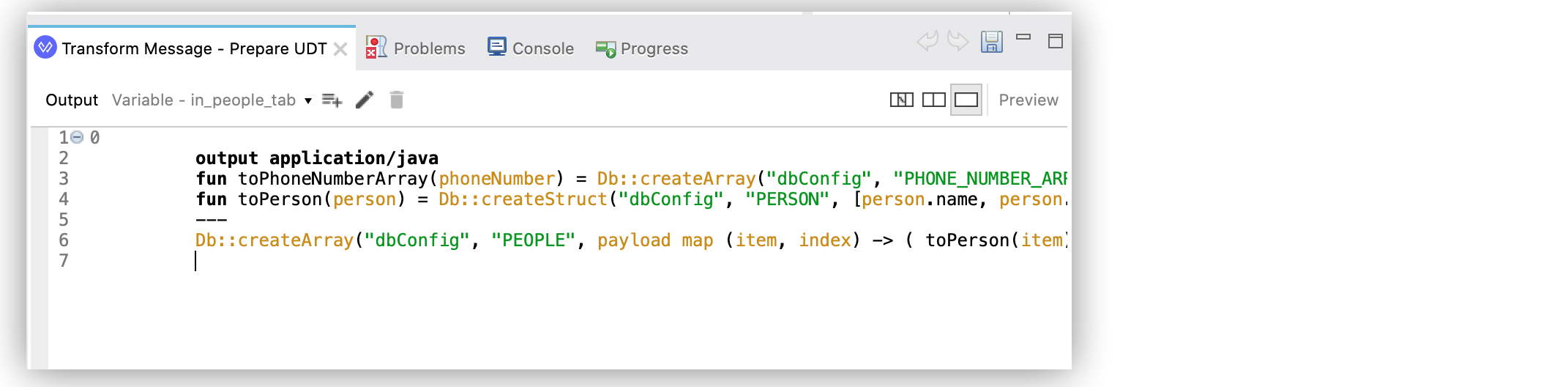

				<ee:set-variable variableName="in_people_tab"><![CDATA[%dw 2.0
				output application/java
				fun toPhoneNumberArray(phoneNumber) = Db::createArray("dbConfig", "PHONE_NUMBER_ARRAY",[Db::createStruct("dbConfig", "PHONE_NUMBER", [phoneNumber.areaCode, phoneNumber.phoneNumber])])
				fun toPerson(person) = Db::createStruct("dbConfig", "PERSON", [person.name, person.surname, person.age, toPhoneNumberArray(person.phoneNumber)])
				---
				Db::createArray("dbConfig", "PEOPLE", payload map (item, index) -> ( toPerson(item) ) )
				]]></ee:set-variable>
			</ee:variables>
		</ee:transform>

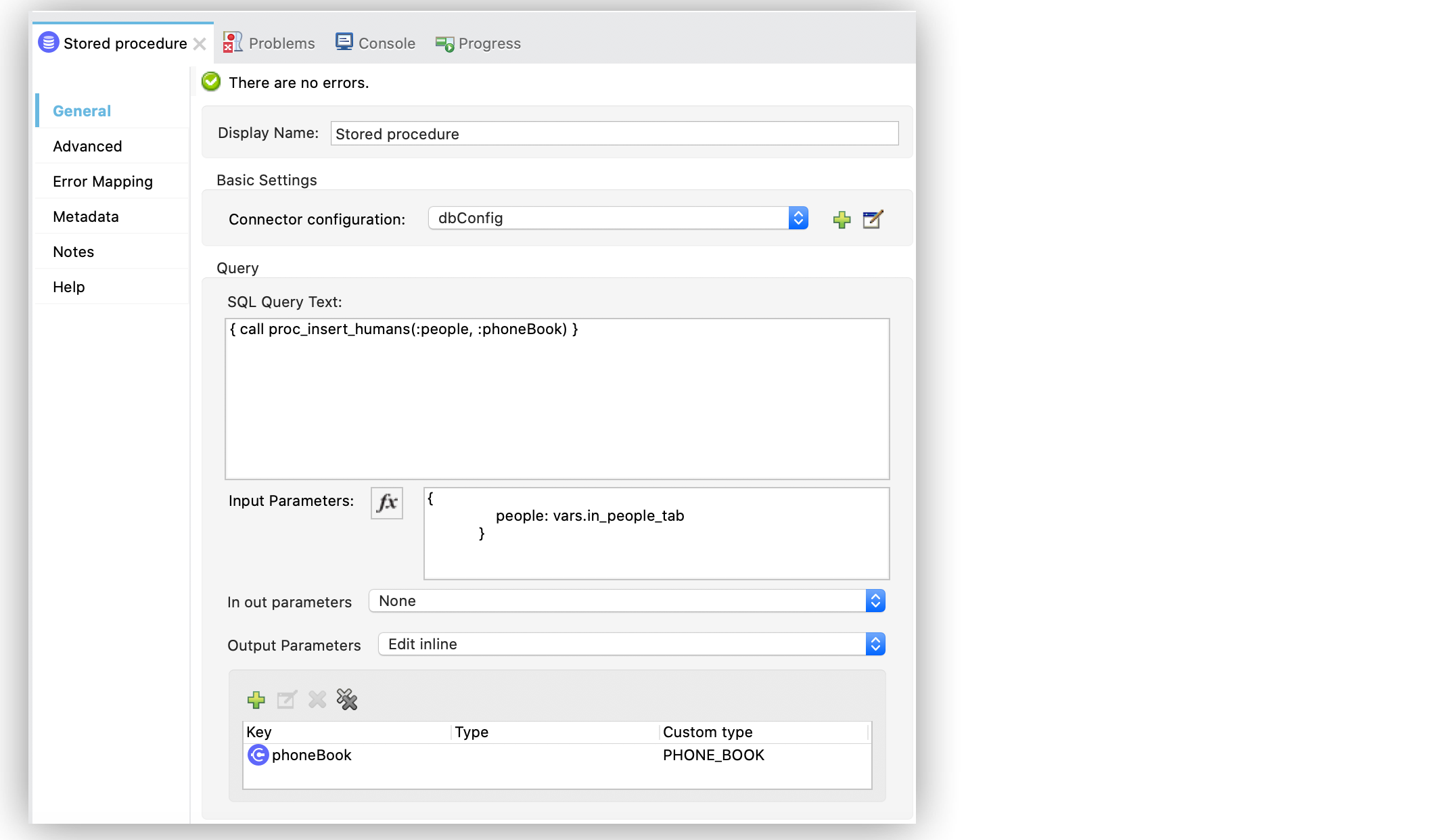

		<db:stored-procedure config-ref="dbConfig">
			<db:sql><![CDATA[{ call proc_insert_humans(:people, :phoneBook) }]]></db:sql>
			<db:input-parameters><![CDATA[{
				people: vars.in_people_tab
			}]]></db:input-parameters>
			<db:output-parameters >
				<db:output-parameter key="phoneBook" customType="PHONE_BOOK" />
			</db:output-parameters>
		</db:stored-procedure>
		<ee:transform doc:name="Transform Message - response to JSON" >
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
					output application/json
					---
					payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
	</flow>

</mule>
