Microsoft Service Bus Connector 2.2 - Mule 4

<dependency>
  <groupId>com.mulesoft.connectors</groupId>
  <artifactId>mule-microsoft-service-bus-connector</artifactId>
  <version>x.x.x</version>
  <classifier>mule-plugin</classifier>
</dependency>
xml✓ コピー済み

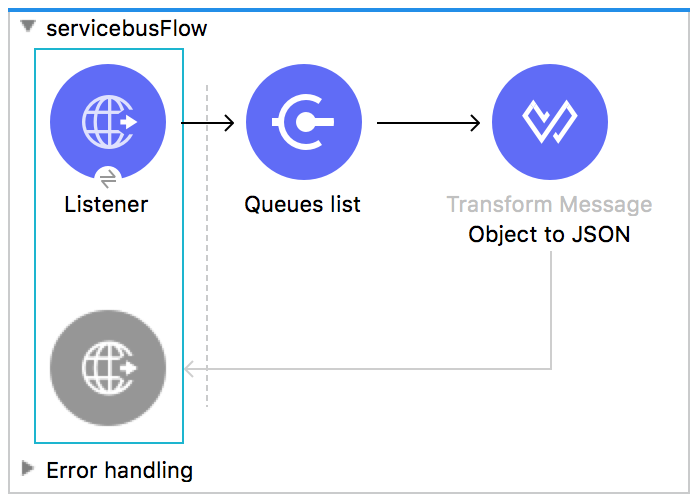

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
xmlns:servicebus="http://www.mulesoft.org/schema/mule/servicebus"
	xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns="http://www.mulesoft.org/schema/mule/core"
	xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core
	http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http
http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/servicebus
http://www.mulesoft.org/schema/mule/servicebus/current/mule-servicebus.xsd
http://www.mulesoft.org/schema/mule/ee/core
http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd">
	<configuration-properties file="mule-app.properties" />
	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>
	<servicebus:config name="Servicebus_Config" doc:name="Servicebus Config" >
		<servicebus:windows-connection
		namespace="${config.namespace}"
		username="${config.username}"
		password="${config.password}"
		fqdn="${config.fqdn}" />
	</servicebus:config>
	<flow name="servicebusFlow">
		<http:listener doc:name="Listener" config-ref="HTTP_Listener_config"
		path="/servicebus"/>
		<servicebus:queues-list doc:name="Queues list" config-ref="Servicebus_Config"/>
		<ee:transform doc:name="Object to JSON">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
	</flow>
</mule>
xml✓ コピー済み
コンテンツを展開する

<AsyncLogger name="org.springframework.web.client"
   level="DEBUG"/>
xml✓ コピー済み

<?xml version="1.0" encoding="UTF-8"?>
<Configuration status="WARN">
	<Appenders>
	    <Console name="Console" target="SYSTEM_OUT">
	    	<PatternLayout pattern="%d{HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n"/>
		</Console>
	</Appenders>
	<Loggers>
		<AsyncLogger name="org.springframework.web.client" level="DEBUG" additivity="false">
			<appender-ref ref="Console" level="debug"/>
		</AsyncLogger>
	</Loggers>
</Configuration>
xml✓ コピー済み

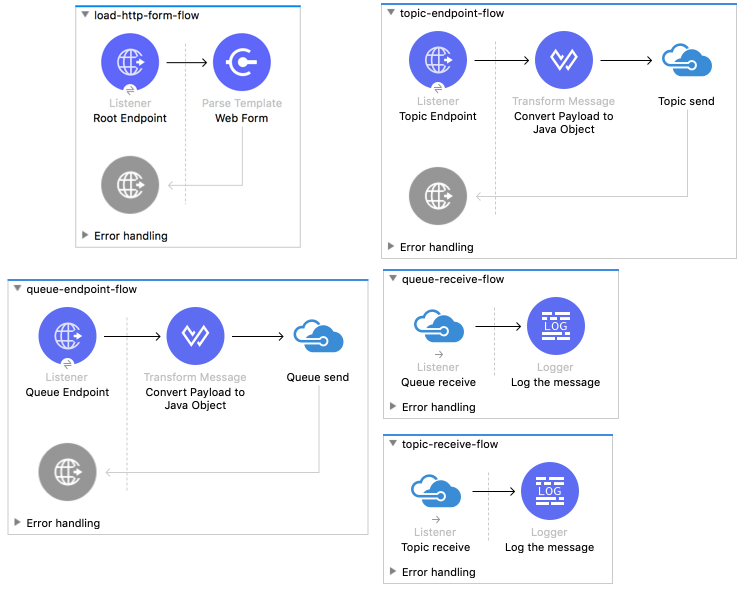

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
xmlns:servicebus="http://www.mulesoft.org/schema/mule/servicebus"
xmlns:http="http://www.mulesoft.org/schema/mule/http"
xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core
http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http
http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/servicebus
http://www.mulesoft.org/schema/mule/servicebus/current/mule-servicebus.xsd
http://www.mulesoft.org/schema/mule/ee/core
http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd">
	<configuration-properties file="mule-app.properties" doc:name="Configuration properties"/>
	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config">
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>

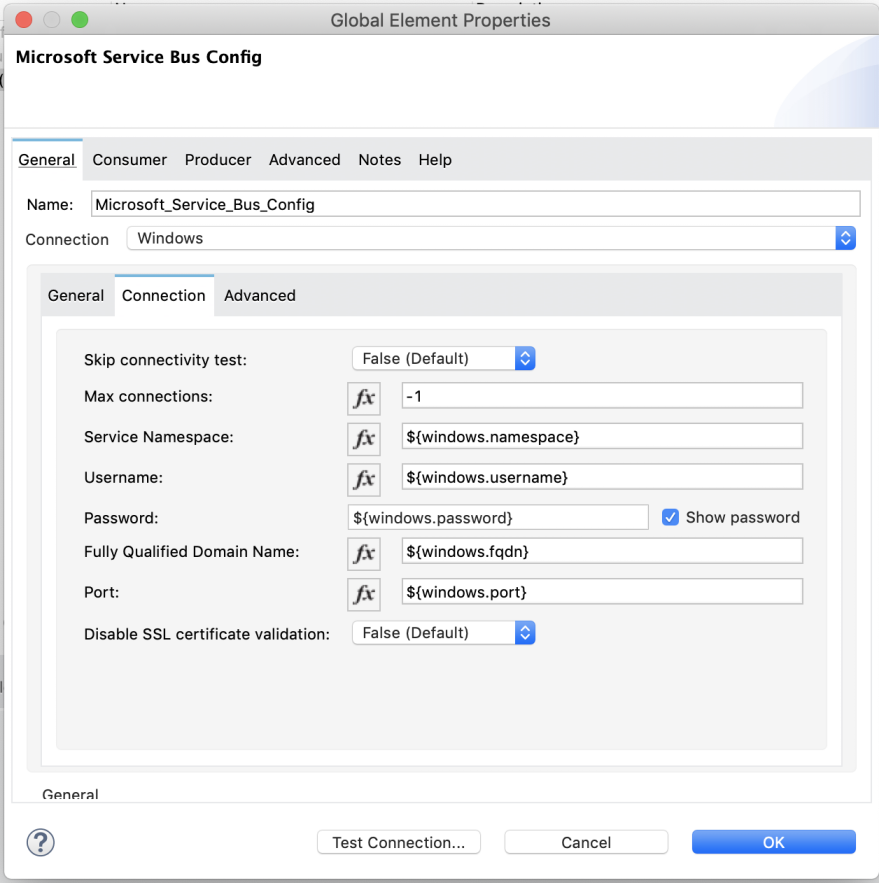

	<servicebus:config name="Microsoft_Service_Bus_Config" doc:name="Microsoft Service Bus Config">
		<servicebus:windows-connection
			namespace="${windows.namespace}"
			username="${windows.username}"
			password="${windows.password}"
			fqdn="${windows.fqdn}"
			port="${windows.port}"/>
	</servicebus:config>
	<flow name="load-http-form-flow">
		<http:listener doc:name="Root Endpoint" config-ref="HTTP_Listener_config"
			path="/" />
		<parse-template doc:name="Web Form" location="form.html" />
	</flow>
	<flow name="queue-endpoint-flow">
		<http:listener doc:name="Queue Endpoint" config-ref="HTTP_Listener_config"
			path="/pushMessageQueue" />
		<ee:transform doc:name="Convert Payload to Java Object">
			<ee:message>
				<ee:set-payload><![CDATA[%dw 2.0
output application/java
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<servicebus:queue-send doc:name="Queue send" config-ref="Microsoft_Service_Bus_Config"
			destinationQueue="#[payload.queue]">
			<servicebus:message >
				<servicebus:body ><![CDATA[#[payload.message]]]></servicebus:body>
			</servicebus:message>
		</servicebus:queue-send>
	</flow>
	<flow name="topic-endpoint-flow">
		<http:listener doc:name="Topic Endpoint" config-ref="HTTP_Listener_config"
			path="/pushMessageTopic"/>
		<ee:transform doc:name="Convert Payload to Java Object">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
payload]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<servicebus:topic-send doc:name="Topic send" config-ref="Microsoft_Service_Bus_Config"
			destinationTopic="#[payload.topic]"
			transactionalAction="NOT_SUPPORTED"
			sendCorrelationId="AUTO">
			<servicebus:message >
				<servicebus:body ><![CDATA[#[payload.message]]]></servicebus:body>
			</servicebus:message>
		</servicebus:topic-send>
	</flow>
	<flow name="queue-receive-flow">
		<servicebus:listener
			sourceType="Queue"
			destination="${queue.name}"
			doc:name="Queue receive"
			config-ref="Microsoft_Service_Bus_Config"
			ackMode="AUTO" subscription="NONE"
			numberOfConsumers="1"/>
		<logger level="INFO" doc:name="Log the message" message="#[payload]"/>
	</flow>
	<flow name="topic-receive-flow">
		<servicebus:listener sourceType="Topic" doc:name="Topic receive"
			config-ref="Microsoft_Service_Bus_Config"
			ackMode="AUTO" destination="${topic.name}"
			subscription="${subscription.name}"/>
		<logger level="INFO" doc:name="Log the message" message="#[payload]"/>
	</flow>
</mule>
xml✓ コピー済み
コンテンツを展開する

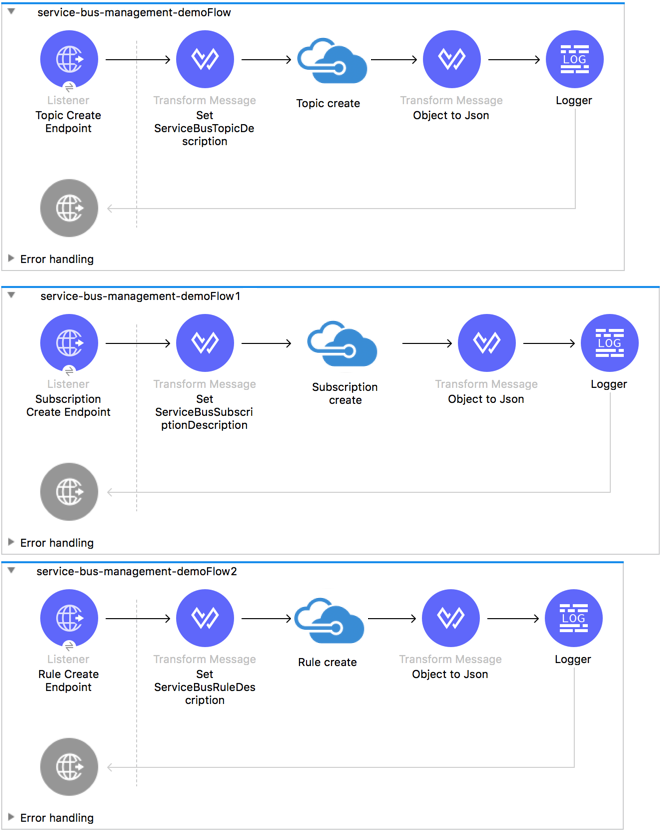

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
xmlns:servicebus="http://www.mulesoft.org/schema/mule/servicebus"
	xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns="http://www.mulesoft.org/schema/mule/core"
	xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core
	http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http
http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/servicebus
http://www.mulesoft.org/schema/mule/servicebus/current/mule-servicebus.xsd
http://www.mulesoft.org/schema/mule/ee/core
http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd">
	<configuration-properties file="mule-app.properties"
	doc:name="Configuration properties"/>
	<http:listener-config name="HTTP_Listener_config"
	doc:name="HTTP Listener config">
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>
	<servicebus:config name="Microsoft_Service_Bus_Config" doc:name="Microsoft Service Bus Config">
		<servicebus:windows-connection
			namespace="${windows.namespace}"
			username="${windows.username}"
			password="${windows.password}"
			fqdn="${windows.fqdn}"
			port="${windows.port}"/>
	</servicebus:config>
	<flow name="service-bus-management-demoFlow">
		<http:listener doc:name="Topic Create Endpoint"
		config-ref="HTTP_Listener_config"
		path="/topic"/>
		<ee:transform doc:name="Set ServiceBusTopicDescription">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	defaultMessageTimeToLive: "P10675199DT2H48M5.4775807S",
	duplicateDetectionHistoryTimeWindow: "PT10M",
	enableBatchedOperations: false,
	maxSizeInMegabytes: 1024,
	requiresDuplicateDetection: false,
	sizeInBytes: null
} as Object {
	class : "com.mulesoft.connectors.microsoft.servicebus.extension.api.entity.ServiceBusTopicDescription"
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<servicebus:topic-create doc:name="Topic create"
		config-ref="Microsoft_Service_Bus_Config"
		topicPath="${topic.name}">
		</servicebus:topic-create>
		<ee:transform doc:name="Object to Json">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
{
	author: payload.author,
	id: payload.id,
	title: payload.title
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" message="#[payload]"/>
	</flow>
	<flow name="service-bus-management-demoFlow1">
		<http:listener doc:name="Subscription Create Endpoint"
		config-ref="HTTP_Listener_config"
		path="/subscription"/>
		<ee:transform doc:name="Set ServiceBusSubscriptionDescription">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	lockDuration: "PT4M",
	requiresSession: false,
	deadLetteringOnMessageExpiration: false,
	deadLetteringOnFilterEvaluationExceptions: null,
	enableBatchedOperations: false,
	defaultMessageTimeToLive: "P10675199DT2H48M5.4775807S",
	maxDeliveryCount: null
} as Object {
	class : "com.mulesoft.connectors.microsoft.servicebus.extension.api.entity.ServiceBusSubscriptionDescription"
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<servicebus:subscription-create
		topicPath="${topic.name}"
		doc:name="Subscription create"
		config-ref="Microsoft_Service_Bus_Config"
		subscriptionPath="${subscription.name}"/>
		<ee:transform doc:name="Object to Json">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
{
	linik: payload.link,
	id: payload.id,
	title: payload.title
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" message="#[payload]"/>
	</flow>
	<flow name="service-bus-management-demoFlow2">
		<http:listener doc:name="Rule Create Endpoint"
		config-ref="HTTP_Listener_config"
		path="/rule"/>
		<ee:transform doc:name="Set ServiceBusRuleDescription">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
	action: {
		sqlExpression: "set MyProperty2 = 'ABC'",
		"type": "SqlRuleAction"
	},
	filter: {
		correlationId: null,
		sqlExpression: "property1 = 'ok'",
		"type": "SqlFilter"
	}
} as Object {
	class : "com.mulesoft.connectors.microsoft.servicebus.extension.api.entity.ServiceBusRuleDescription"
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<servicebus:rule-create topicPath="${topic.name}" doc:name="Rule create"
		config-ref="Microsoft_Service_Bus_Config" rulePath="${rule.name}"
		subscriptionPath="${subscription.name}"/>
		<ee:transform doc:name="Object to Json">
			<ee:message >
				<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
{
	link: payload.link,
	id: payload.id,
	title: payload.title
}]]></ee:set-payload>
			</ee:message>
		</ee:transform>
		<logger level="INFO" doc:name="Logger" message="#[payload]"/>
	</flow>
</mule>
xml✓ コピー済み
コンテンツを展開する
