Salesforce Pub/Sub Connector 1.4 Examples

The following examples show several Mule flows for Salesforce Pub/Sub Connector:

Publish an Event
Configure Publish Request Timeout
Subscribe to a Channel

Configure a Connection

To secure connections, you must specify the connection field values. To do this:

Create a configuration file for a connection.
Configure the connection global elements.
Configure a global element for the properties file.

Create a Configuration File for a Connection

Create a configuration file that includes properties for a connection:

Create a file named mule-app.properties in the /src/main/resources/ folder.
In the mule-app.properties file, create a set of properties for the connection, similar to the ones that follow, replacing the bracketed text (including the brackets) with the correct values for your configuration:
```
m4-config.username=<username within Salesforce Pub/Sub system>
m4-config.password=<password for the username within Salesforce Pub/Sub system>
m4-config.securityToken=<security token within Salesforce Pub/Sub system>
m4-config.url=<endpoint representing your development environment>
```
The properties used vary depending on the selected connection configuration.

For more information about creating a properties file, refer to Configuring Property Placeholders.

Configure the Connection Global Elements

Configure global elements for connection:

Create a new Mule project.
In the Mule Palette view, click Search in Exchange and enter Salesforce Pub/Sub.
Add Salesforce Pub/Sub Connector to the Selected modules section and click Finish.
Click the Global Elements tab and click Create.
Select Connector Configuration > Salesforce Pub/Sub Config and click OK.
Enter the values to configure either Basic Authentication, OAuth v2.0, OAuth JWT, OAuth Client Credentials, OAuth Username Password, or OAuth SAML. Note that the Basic Authentication connection type is only supported for Salesforce API v64.0 and earlier versions.
Click the Test Connection button to ensure there is connectivity with the Salesforce Pub/Sub API. A successful message should pop up.
Click OK.
Open the HTTPS Listener config in Global Element Configuration.
Click the TLS tab and select TLS Configuration > Edit inline.
Specify the Key Store Configuration with the generated keystore details to enable HTTPS on this configuration.
Click OK.

Configure a Global Element for the Properties File

Configure a global element for the mule-app.properties file so that Mule knows where to find it:

Click the Global Elements tab and click Create.
In the Choose Global Type dialog, select Configuration properties and click OK.
In the File field, enter mule.app.properties.
Click OK.

Publish an Event

This example Mule flow publishes an event and uses the following operations:

HTTP Listener
Accepts data from HTTP requests.
Transform Message
Outputs the data in Java.
Publish event
Publishes the given list of events to the specified event topic. Only high-volume platform events, including real-time event monitoring events and change data capture events, are allowed.

Enter the following values:

Field Value

Topic

Name of the topic used for message publishing, for example, /event/gRPCMunitTestDoNotDelete__e

Job Id

payload

Field	Value
Topic	Name of the topic used for message publishing, for example, `/event/gRPCMunitTestDoNotDelete__e`
Job Id	`payload`

Studio flow for the Publish event operation

XML for This Example

Paste this code into the Studio XML editor to quickly load the flow for this example into your Mule app:

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
	  xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns:salesforce-pub-sub="http://www.mulesoft.org/schema/mule/salesforce-pub-sub" xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/salesforce-pub-sub http://www.mulesoft.org/schema/mule/salesforce-pub-sub/current/mule-salesforce-pub-sub.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd">

	<configuration-properties file="mule-app.properties"/>

	<salesforce-pub-sub:pubsub-config name="Salesforce_PubSub_Config" >
		<salesforce-pub-sub:basic-connection username="${m4-config.username}" password="${m4-config.password}" securityToken="${m4-config.securityToken}" url="${m4-config.url}"/>
	</salesforce-pub-sub:pubsub-config>

	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" doc:id="3805c5f1-0f01-476a-a619-a03f34dadfdd" >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>
<flow name="mule-salesforce-pubsub-connector-publish-event-demo" doc:id="9e2df8f5-1b47-4a76-ac62-941c989cd93b" >
  <http:listener doc:name="Listener" doc:id="6e06a214-3112-40ef-8720-f730121aa5e0" config-ref="HTTP_Listener_config" path="/publish-event"/>
  <ee:transform>
    <ee:message>
      <ee:set-payload><![CDATA[%dw 2.0
        output application/java
        ---
        [{
          CreatedDate: 12334455,
          CreatedById: "123",
          Desc__c: "Something"
        },{
          CreatedDate: 12334456,
          CreatedById: "1234",
          Desc__c: "Something2"
        }
        ]]]>
      </ee:set-payload>
    </ee:message>
  </ee:transform>

  <salesforce-pub-sub:publish-event config-ref="Salesforce_PubSub_Config" topic="/event/gRPCMunitTestDoNotDelete__e"/>
</flow>
</mule>

Configure Publish Request Timeout

This example shows how to configure the Publish Request Timeout and Publish Request Time Unit parameters to control the timeout behavior for publish operations. This is useful when you want to ensure that publish requests don’t wait indefinitely and have specific timeout requirements. This example Mule flow configures timeout settings.

The key timeout configuration parameters are:

Field Value

Field	Value
Publish Request Timeout	`60` (60 units of time before timeout)
Publish Request Time Unit	`SECONDS` (timeout unit specification)

Publish Request Timeout

60 (60 units of time before timeout)

Publish Request Time Unit

SECONDS (timeout unit specification)

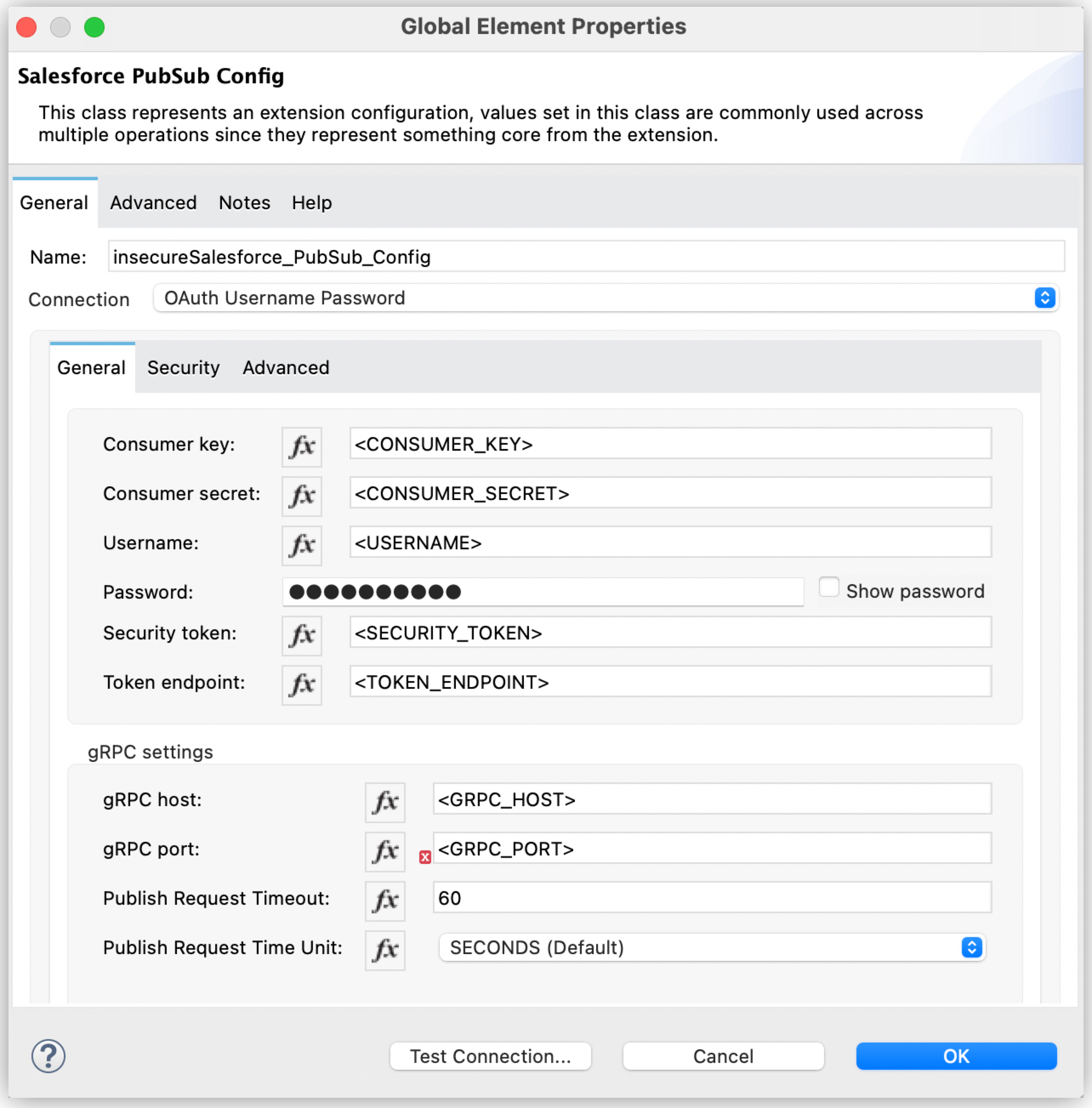

Global element properties window for the Publish event operation with timeout configuration

XML for This Example

Paste this code into the Studio XML editor to quickly load the flow for this example into your Mule app:

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:scripting="http://www.mulesoft.org/schema/mule/scripting"
	xmlns:tls="http://www.mulesoft.org/schema/mule/tls" xmlns:http="http://www.mulesoft.org/schema/mule/http"
	xmlns:os="http://www.mulesoft.org/schema/mule/os"
	xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core" xmlns:salesforce-pub-sub="http://www.mulesoft.org/schema/mule/salesforce-pub-sub" xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="
http://www.mulesoft.org/schema/mule/scripting http://www.mulesoft.org/schema/mule/scripting/current/mule-scripting.xsd http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/salesforce-pub-sub http://www.mulesoft.org/schema/mule/salesforce-pub-sub/current/mule-salesforce-pub-sub.xsd
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
http://www.mulesoft.org/schema/mule/os http://www.mulesoft.org/schema/mule/os/current/mule-os.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/tls http://www.mulesoft.org/schema/mule/tls/current/mule-tls.xsd">
	<salesforce-pub-sub:pubsub-config name="insecureSalesforce_PubSub_Config" doc:name="Salesforce PubSub Config"  >
		<salesforce-pub-sub:oauth-user-pass-connection consumerKey="&lt;CONSUMER_KEY&gt;" consumerSecret="&lt;CONSUMER_SECRET&gt;" username="&lt;USERNAME&gt;" password="&lt;USERNAME&gt;" securityToken="&lt;SECURITY_TOKEN&gt;" tokenEndpoint="&lt;TOKEN_ENDPOINT&gt;" host="&lt;GRPC_HOST&gt;" port="0000" publishRequestTimeout="60" >
		</salesforce-pub-sub:oauth-user-pass-connection>
	</salesforce-pub-sub:pubsub-config>

	<os:object-store name="replayObjectStore" doc:name="Object store"  entryTtlUnit="DAYS" expirationIntervalUnit="DAYS" entryTtl="1"/>


	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config"  >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>
	<flow name="ytaoka-salesforce-pubsublistenerFlow1"  initialState="started">
		<http:listener doc:name="Listener"  config-ref="HTTP_Listener_config" path="/publish"/>

	 <logger level="INFO" doc:name="Logger"  message="Before Publish" />
		<salesforce-pub-sub:publish-event config-ref="insecureSalesforce_PubSub_Config" topic="/event/gRPCMunitTestDoNotDelete__e">
        </salesforce-pub-sub:publish-event>
		<logger level="INFO" doc:name="Logger"  message="After Publish"/>
	</flow>
</mule>

This example Mule flow subscribes to a channel and uses the following operations:

Subscribe channel listener
Subscribes to a streaming channel. This source provides channel-related notification settings for new events that occur after you subscribe.

A channel must be published to Salesforce before a subscription to the channel is created.

Enter the following values:

Field Value

Field	Value
Channel name	Name of the streaming channel to subscribe to, for example, `/event/gRPCMunitTestDoNotDelete__e`
Replay option	One of the given implementations, for example, `Earliest`. For more information on how to use `Replay id from object store` in Replay option, refer to Store the Replay ID in the Object Store.
Batch events size	Total number of events included in a server batch. Lower values indicate small memory footprint with more server calls, while bigger values indicate bigger memory footprint with fewer API calls. A new batch of events is requested by the connector after the flow consumes the existing events, for example, `1000`

Channel name

Name of the streaming channel to subscribe to, for example, /event/gRPCMunitTestDoNotDelete__e

Replay option

One of the given implementations, for example, Earliest. For more information on how to use Replay id from object store in Replay option, refer to Store the Replay ID in the Object Store.

Batch events size

Total number of events included in a server batch. Lower values indicate small memory footprint with more server calls, while bigger values indicate bigger memory footprint with fewer API calls. A new batch of events is requested by the connector after the flow consumes the existing events, for example, 1000

Logger
Shows the HTTP response from the Subscribe channel listener source

XML for This Example

Paste this code into the Studio XML editor to quickly load the flow for this example into your Mule app:

<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core"
	  xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns:salesforce-pub-sub="http://www.mulesoft.org/schema/mule/salesforce-pub-sub" xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/salesforce-pub-sub http://www.mulesoft.org/schema/mule/salesforce-pub-sub/current/mule-salesforce-pub-sub.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd">

	<configuration-properties file="mule-app.properties"/>

	<salesforce-pub-sub:pubsub-config name="Salesforce_PubSub_Config" >
		<salesforce-pub-sub:basic-connection username="${m4-config.username}" password="${m4-config.password}" securityToken="${m4-config.securityToken}" url="${m4-config.url}"/>
	</salesforce-pub-sub:pubsub-config>

	<http:listener-config name="HTTP_Listener_config" doc:name="HTTP Listener config" doc:id="3805c5f1-0f01-476a-a619-a03f34dadfdd" >
		<http:listener-connection host="0.0.0.0" port="8081" />
	</http:listener-config>

	<flow name="mule-salesforce-pubsub-connector-subscribe-channel-demo" doc:id="4faf2bf8-e2af-43bc-bba8-d336761800dd" >
		<salesforce-pub-sub:subscribe-channel-listener channelName="/event/gRPCMunitTestDoNotDelete__e" config-ref="Salesforce_PubSub_Config" eventBatchSize="1000">
			<salesforce-pub-sub:replay-option >
				<salesforce-pub-sub:earliest />
			</salesforce-pub-sub:replay-option>
		</salesforce-pub-sub:subscribe-channel-listener>
		<logger level="INFO" doc:name="Logger" doc:id="21652e14-de84-4752-a9b9-871dc346befb" message="#[payload]"/>
	</flow>
</mule>
