Supported Configurations for Anypoint Platform PCE

To ensure platform performance, stability, and high availability, Anypoint Platform Private Cloud Edition (Anypoint Platform PCE) supports two network configurations: 4-node and 7-node. To ensure high availability and performance, each node must run on its own server in both configurations. If you are using a virtual machine to host the nodes, you must ensure that each VM node is running on a separate physical server.

Both the 4-node and 7-node configurations have two separate components:

  • Anypoint Platform Core

  • Monitoring Center Add-On (optional)

4-Node Configuration

The 4-node configuration is the smallest configuration that Anypoint Platform PCE supports. This is the minimum number of nodes that can enable high-availability and failover. In this configuration, each node hosts the platform applications and services. You must configure a load balancer to use round-robin distribution of traffic among each of the four nodes.

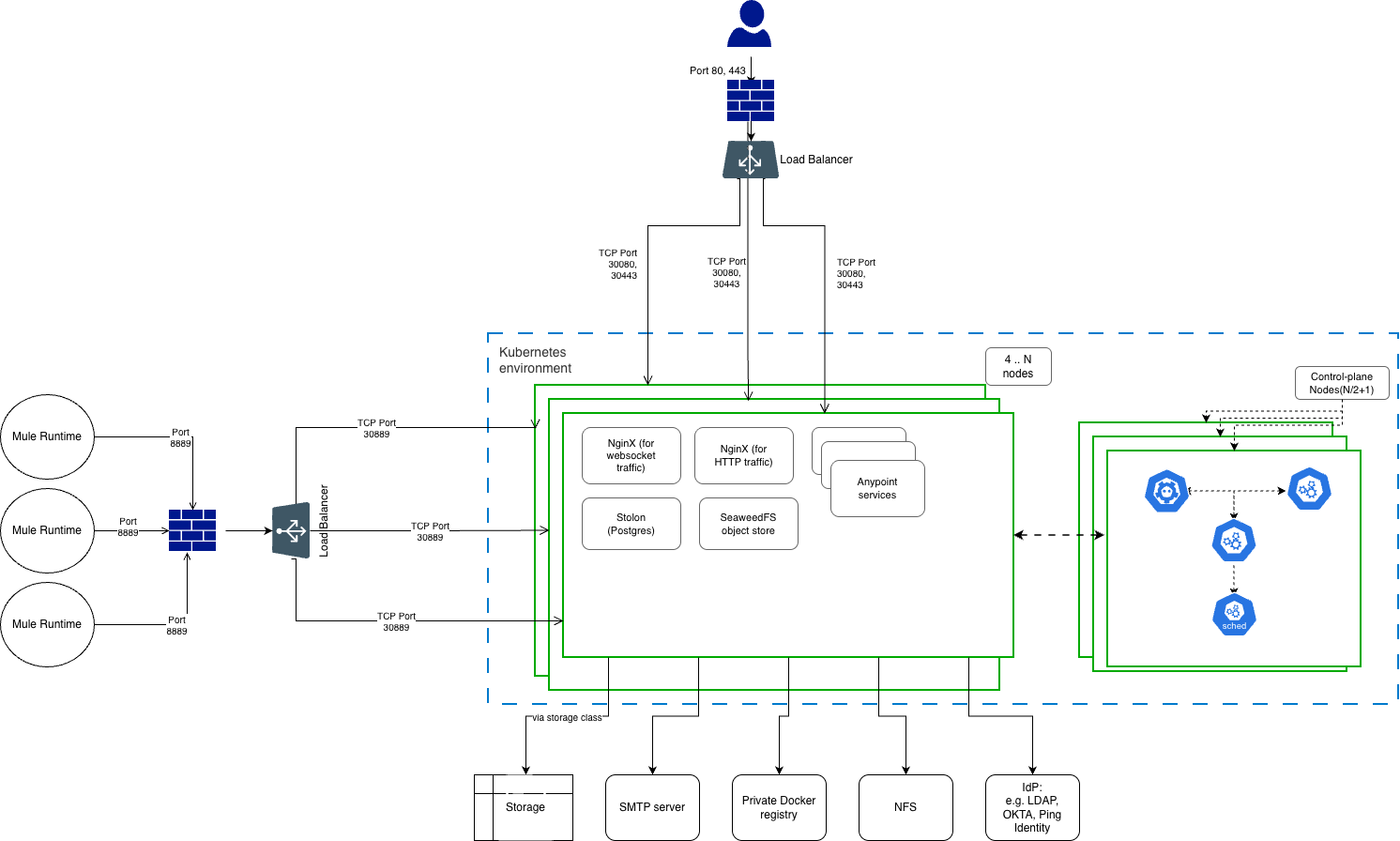

4-node Configuration

Three of the nodes host an instance of the database and object store. Hosting the database and object store enables persistence but requires larger minimum disk and memory requirements. Although three of the nodes contain a database, only one database is used as the primary. Applications on each node write to this database only. The other two database instances are hot standby instances of the primary database that take over as the primary database in case of failure.

7-Node Configuration

In the 7-node configuration, four nodes are dedicated to hosting platform applications and services. The other three nodes host the database and object store instances. Although each node contains a database, only one of the database nodes is used as the primary. Applications on each node write to this database only. The other two database instances are hot standby instances of the primary database that take over as the primary database in case of failure.

7-node Configuration

You must configure a load balancer to use round-robin distribution of traffic among all of the nodes in your cluster.

Supported Platform Components and Configuration

The following recommendations and limits are based on the following resources:

  • A 4-node environment consisting of 4 nodes of 8 cores and 32GB RAM, or

  • A 7-node environment consisting of 7 nodes of 8 cores and 32GB RAM.

Mule Runtime Engine and Mule Applications

The following table shows the recommended and maximum number of Mule instances and Mule applications that Anypoint Platform PCE supports:

4-node Configuration 7-node Configuration

Maximum number of Mule instances per environment

500

500

Maximum number of Mule instances across all environments

1500

3000

Maximum number of Mule instances per server group

20

20

Maximum Mule instances per cluster

8

8

Mule applications under management per environment (recommended)

Under 200

Around 200

Mule applications under management per environment (maximum)

500

500

Mule instances under management (maximum)

500 single Mule runtime engine, or 250 Mule runtime clusters, consisting of 2 Mule runtime engines per cluster

1000 single Mule runtime engines, or 500 Mule runtime clusters, consisting of 2 Mule runtime engines per cluster

Mule applications per Mule runtime engine (recommended)

Fewer than 25

Fewer than 25

Mule applications per Mule runtime engine (maximum)

100

50

APIs and API Manager

4-node Configuration

7-node Configuration

Maximum instances per API group

100

100

Client applications (per user)

5000

5000

Client applications (per root organization)

10000

10000

Maximum API instances manager per root organization

6000

12000

Applied policies

12000

24000

Created contracts

12000

24000

For both 4-node and 7-node configurations, the following apply:

  • Maximum instances per API group

  • Applications

  • A single API implementation with one policy counts as 0.5 APIs.

  • A single clustered proxy with up to 5 policies counts as 1.

  • All Mule instances are polling every 60 seconds.

Access Management

4-node Configuration 7-node Configuration

Maximum number of supported business groups

75

N/A

Maximum number of users

10000

N/A

See the Access Management documentation for more information on identity management and supported providers.

Exchange

4-node Configuration 7-node Configuration

Maximum Exchange assets

60,000

60,000

Maximum file size when publishing asset through UI

5 MB

5 MB

Maximum uncompressed file size

50 MB

50 MB

Maximum file size when publishing asset through Maven

200 MB

200

Maximum number of dependencies for a single asset

100

100

Maximum icon size

2 MB

2 MB

Maximum number of resources (attachments) per asset portal

100

100

Maximum resource size for attachments to the asset portal

2 MB

2 MB

Maximum indexable asset content for RAML or asset portal

1 MB

1 MB

Maximum number of categories per organization

500

500

Maximum number of custom configurations per organization

500

500

Maximum number of pages in a portal

50

50

Maximum length of page name

128 characters

128 characters

Maximum review title length

300 characters

300 characters

Maximum review text length

2048 characters

2048 characters

The 1 MB maximum indexable asset content for RAML or asset portal means that if your portal has more than 1MB in text, only the first 1MB will be indexed, and if your portal has more than 1 MB in RAML specifications, only the first 1 MB will be indexed.

API Designer and API Mocking Service

The following apply to both 4-node and 7-node configurations.

Maximum number of projects

Limited by version control system

Maximum number of concurrent users

16

Maximum number of mocking service instances

One per API version

Maximum number of mocking service users

16

Anypoint Monitoring

Anypoint Monitoring is an optional, add-on component. See Anypoint Monitoring on Anypoint Platform PCE. The following limitations apply when using Anypoint Monitoring with Anypoint Platform PCE.

Enhanced API Analytics Monitoring Limits

  • API Summary Metrics

    • Retention: 1 year

  • API IP Address Metrics

    • Number of IP addresses per API per minute: limited to 20 unique IP addresses.

    • Retention: 1 hour

  • API Endpoint Metrics

    • Number of endpoints per API per minute: limited to 100 unique endpoints

    • Retention: 1 hour

Application Monitoring Limits

  • Number of endpoints per application per minute: 5 unique endpoints

  • Number of client IP addresses per application per minute: 5 unique endpoints

Custom Metrics

  • Up to 10000 alerts

  • System performs

Advanced Alert Limits

  • Up to 20 alerts

Performance Limits

  • Number of Mule instances: 3000

  • Number of applications: 12000

  • Number of application replicas: up to 12000. An application can run on multiple Mule instances in a server group or cluster.

  • Number of APIs: up to 120000

  • Number of custom metrics: 50

Examples of Supported Parameters

  • 6000 applications, each with 1 extra replica corresponds to 12000 application replicas

  • 2000 applications, each with 6 extra replicas corresponds to 12000 application replicas

  • 12000 applications, with no replicas corresponds to 12000 application replicas

Hardware Requirements

  • 3 Nodes

  • CPU: 32 cores

  • Memory: 128 GB

  • Disk requirements:

    • 4TB InfluxDB volume for each AMV node

    • 500 GB Logstash volume per AMV node

    • 500 GB insight-cassandra-meld volume per AMV node

    • IOPS: 1500 IPS per volume (1 voolume each for Influx, logstash, and insight-cassandra-meld)

    • Network: 10 GB/second

License Requirements

  • The Influx Enterprise license (included in the Anypoint Monitoring subscription) is required to enable monitoring.

Anypoint Visualizer

Anypoint Platform PCE does not the support the following Anypoint Visualizer features:

  • List of applications

    If an application does not use Anypoint Monitoring, Anypoint Visualizer cannot track it on Anypoint Platform PCE.

  • Policy visualization
