Configuring Tables in a Custom Dashboard

Configure tables with Mule app and API metrics in custom dashboards.

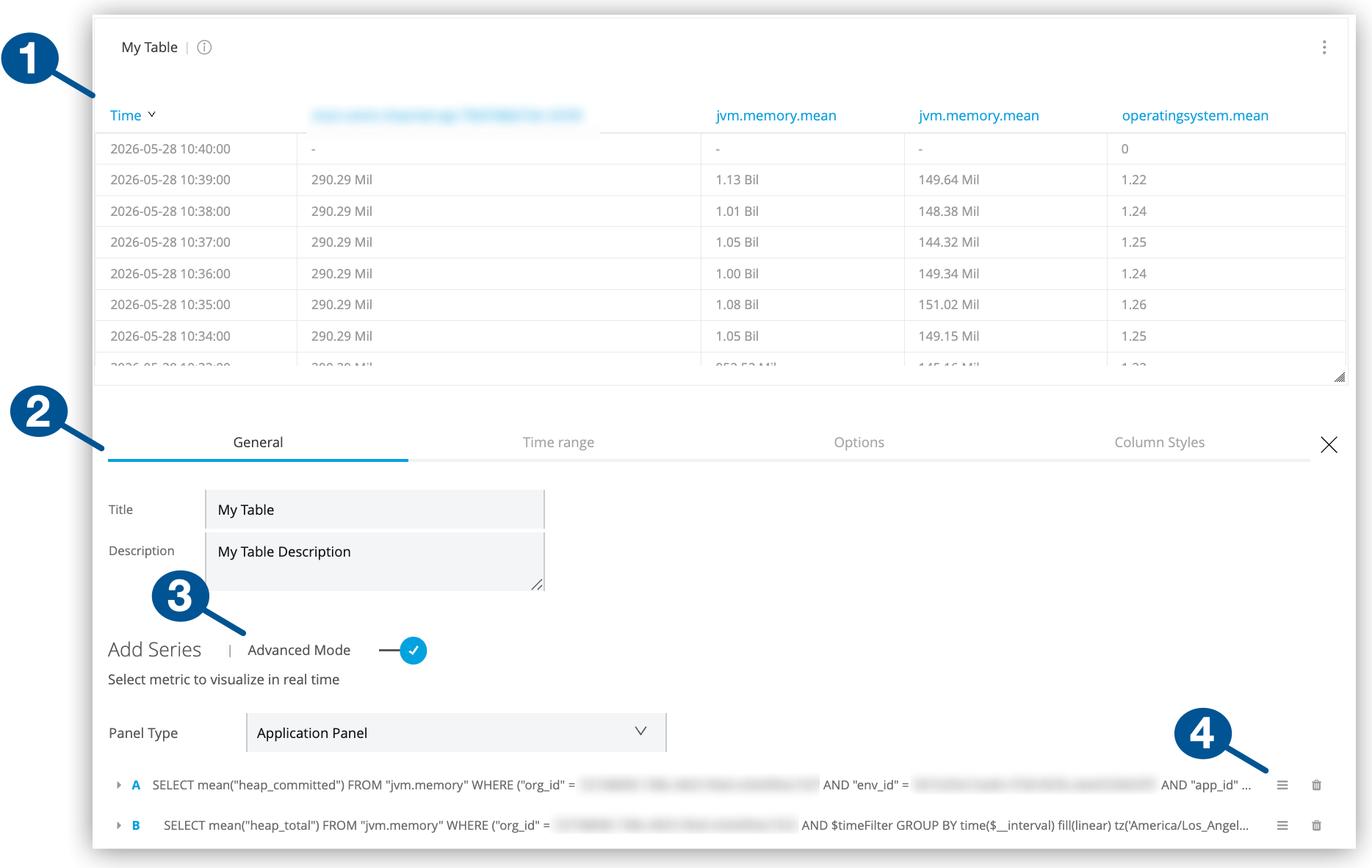

1	A table configured with multiple queries in advanced mode
2	Table configuration tabs: General: Table title, description, and mode (basic or advanced) Time range: Override settings for relative time ranges selected from the dashboard UI by end users Options: Table layout, column, and pagination options Column Styles: Rules for table columns X for closing the edit view
3	Advanced Mode: Switch for enabling advanced configuration mode Advanced mode support complex configurations with up to 25 queries.
4	Icons for moving, duplicating, and deleting queries from an advanced mode configuration

Create a Table

Create a table in a custom dashboard by following the guidance in Add Charts to a Custom Dashboard.

Configure a Table

Configure a table in a custom dashboard.

From Custom Dashboards, open the custom dashboard that contains your table.

For guidance, see View a Custom Dashboard.
Click the table’s (More menu), and select Configure.
Click the table’s General configuration tab.
1. Provide a title and description.
2. Select and configure a table mode (basic or advanced).

  Both modes require environment, resource (app or API), and metric settings. For more information, see General Settings for Basic and Advanced Queries.
Optionally:
1. In the table’s Time range tab, set the table’s overrides for the time range selected by users.
2. In the Options tab, configure table layout, column, and pagination options.
3. In the Column Styles tab, set rules for table columns.
Click Apply Changes.
Exit the configuration view by clicking the X next to the configuration tabs.

General Settings for Basic and Advanced Queries

General tab settings include basic and advanced modes (or queries) for configuring time-series data. Both configurations share fields for the title and a short description.

Basic and Advanced Mode Settings

Basic and Advanced Mode Settings
Title	Title to display in the UI. Defaults to Panel Title.
Description	Short description to display in the UI when users hover over the information (`i`) bubble.

Title

Title to display in the UI. Defaults to Panel Title.

Description

Short description to display in the UI when users hover over the information (i) bubble.

Other settings are specific to the setting mode (basic or advanced).

Basic Mode

In the General configuration tab, a basic query selects a single metric for a deployed Mule app or API in a given environment.

Basic Mode Settings
Panel Type	From the drop-down menu, select the type of panel to display for the resource (Application Panel or API Panel)
Metric	The drop-down menu includes these types of metrics: Inbound response metrics and averages JVM metrics Outbound response metrics and averages For a list of basic metrics, see Basic Mode Metrics
Environment	The environment where your application or API is deployed.
Resource	A deployed application. This option is available if you select Application Panel as your panel type.
API	A deployed API. This option is available if you select API Panel as your panel type.
Version / Instance	The Mule version or instance on which your API is deployed. This option is available if you select API Panel as your panel type.

Basic Mode Settings

Panel Type

From the drop-down menu, select the type of panel to display for the resource (Application Panel or API Panel)

Metric

The drop-down menu includes these types of metrics:

Inbound response metrics and averages
JVM metrics
Outbound response metrics and averages

For a list of basic metrics, see Basic Mode Metrics

Environment

The environment where your application or API is deployed.

Resource

A deployed application.

This option is available if you select Application Panel as your panel type.

API

A deployed API.

This option is available if you select API Panel as your panel type.

Version / Instance

The Mule version or instance on which your API is deployed.

This option is available if you select API Panel as your panel type.

When you create an application panel using a JVM metric, the query that supports the panel uses only the worker-id for the app. When you modify the panel at a later time, the resource fields are populated with the query content. Because some apps share a worker-id, the resource that appears in the selector might appear to be a different resource from the resource you selected originally. However, all resources share the same worker, so the query has the correct information despite the selector displaying a different resource name.

Advanced Mode

In the General configuration tab, advanced mode settings support fine-tuned queries for metrics.

If you switch back to basic mode, some advanced configuration queries are removed.

Advanced Mode Settings for Applications

Advanced Mode Settings for Applications
From	Lists metrics, such as `jvm.memory` and `app_inbound_metric`, that you can add to your chart. This field provides matching suggestions when you type in a character. For example, `jvm.c` will produce a list of all values that contain those characters (such as `jvm.classloading` and `jvm.cpu.operatingsystem`). For a list of advanced metrics, see Advanced Mode Metrics
Where	Supports conditional logic for filtering the From metric you selected. Select one or more filters tags (such as `app_id`, `env_id`, `org_id`, `worker_id`). To avoid errors, you must provide required properties, such as the app or API, environment, and API version. Available operators include: `=` The value on the left matches the value on the right. `<` The value on the left is less than the value on the right. `>` The value on the left is greater than the value on the right. You can also construct a query that contains multiple filtering expressions by using logical `AND` or `OR` operators between the expressions. Example: `Where env_id = Sandbox` `Where env_id = Sandbox AND app_id= app3` `Where env_id = Sandbox OR env_id = Production` Grouping `AND` or `OR` conditions within parentheses is not allowed. For example, `Where env_id = Sandbox AND (app_id= app3 OR app_id=app2)` isn’t allowed.
Select	Add one or more metric `field` settings to create a function that selects a field from the selected metric value in From and applies an operation to it (such as the `mean` of the `heap_total`).
Group By	For grouping the data by a selected time interval (such as `$_interval`, `1s`, `10m`, `1h`), filter tag (such as `tag(env_id)`), and fill options (such as `none`, `null`, `0`, `previous`, `linear`). Valid values and arguments: `time($_interval)` for the automated time interval setting, or you can specify time intervals of `1m`, `5m`, `10m`, `15m`, or `1h`. To avoid service timeouts when querying over long time ranges, consider using a time interval setting. `fill()` where valid values are `none`, `null`, `0`, `previous`, `linear`. `LIMIT`: Numeric value (N) used to limit the result to the first N data points (combined series and timestamp values) returned by a query. `SLIMIT`: Numeric value (N) used to return all data points (combined series and timestamp values) from the first N series returned by the query. `ORDER BY time DESC`: Returns results in descending time order.
Alias By	You can create a label for your metric using a literal string (such as `my string`) or supported variables (for example, `$tag_worker_id` or `$tag_env_id`).

From

Lists metrics, such as jvm.memory and app_inbound_metric, that you can add to your chart.

This field provides matching suggestions when you type in a character. For example, jvm.c will produce a list of all values that contain those characters (such as jvm.classloading and jvm.cpu.operatingsystem).

For a list of advanced metrics, see Advanced Mode Metrics

Where

Supports conditional logic for filtering the From metric you selected.

Select one or more filters tags (such as app_id, env_id, org_id, worker_id). To avoid errors, you must provide required properties, such as the app or API, environment, and API version.
Available operators include:
- = The value on the left matches the value on the right.
- < The value on the left is less than the value on the right.
- > The value on the left is greater than the value on the right.
You can also construct a query that contains multiple filtering expressions by using logical AND or OR operators between the expressions.

Example:
Where env_id = Sandbox
Where env_id = Sandbox AND app_id= app3
Where env_id = Sandbox OR env_id = Production

Grouping AND or OR conditions within parentheses is not allowed. For example, Where env_id = Sandbox AND (app_id= app3 OR app_id=app2) isn’t allowed.

Select

Add one or more metric field settings to create a function that selects a field from the selected metric value in From and applies an operation to it (such as the mean of the heap_total).

Group By

For grouping the data by a selected time interval (such as $_interval, 1s, 10m, 1h), filter tag (such as tag(env_id)), and fill options (such as none, null, 0, previous, linear).

Valid values and arguments:

time($_interval) for the automated time interval setting, or you can specify time intervals of 1m, 5m, 10m, 15m, or 1h.
- To avoid service timeouts when querying over long time ranges, consider using a time interval setting.
fill() where valid values are none, null, 0, previous, linear.
LIMIT: Numeric value (N) used to limit the result to the first N data points (combined series and timestamp values) returned by a query.
SLIMIT: Numeric value (N) used to return all data points (combined series and timestamp values) from the first N series returned by the query.
ORDER BY time DESC: Returns results in descending time order.

Alias By

You can create a label for your metric using a literal string (such as my string) or supported variables (for example, $tag_worker_id or $tag_env_id).

Advanced Mode Settings for APIs

Advanced Mode Settings for APIs
From	Lists metrics, such as `http_summary_metric`, that you can add to your chart. For a list of advanced metrics, see Advanced Mode Metrics
Where	Provides conditional logic for filtering the metric selected from the From field. You can select one or more filter tags (such as `api_id`, `org_id`, `api_version_id`, `method`, `status code`). Example: `Where status_code = 200`.
Select	For creating a function that selects a metric field (such as `request_size_average`,`response_time_max`, or `response_time_sum`) from the metric selected in the From field and applies an operation to it (such as the `mean` of the `response_time_average`). You can add one or more metric `field` settings.
Group by	For grouping the data by a selected time interval (such as `$_interval`, `1s`, `10m`, `1h`), filter tag (such as `tag(api_id)`), and fill options (such as `none`, `null`, `0`, `previous`, `linear`). To avoid service timeouts when querying over long time ranges, consider using a time interval setting.
Alias by	You can create a label for your metric using a literal string (such as `my string`) or supported variables (for example, `$tag_api_id`). The alias must always begin with `$tag`. The syntax is `$tag_yourTagName`. To use your tag as an alias, the tag must be included in the `group by` field of the query.

From

Lists metrics, such as http_summary_metric, that you can add to your chart.

For a list of advanced metrics, see Advanced Mode Metrics

Where

Provides conditional logic for filtering the metric selected from the From field.

You can select one or more filter tags (such as api_id, org_id, api_version_id, method, status code). Example: Where status_code = 200.

Select

For creating a function that selects a metric field (such as request_size_average,response_time_max, or response_time_sum) from the metric selected in the From field and applies an operation to it (such as the mean of the response_time_average). You can add one or more metric field settings.

Group by

For grouping the data by a selected time interval (such as $_interval, 1s, 10m, 1h), filter tag (such as tag(api_id)), and fill options (such as none, null, 0, previous, linear).

To avoid service timeouts when querying over long time ranges, consider using a time interval setting.

Alias by

You can create a label for your metric using a literal string (such as my string) or supported variables (for example, $tag_api_id). The alias must always begin with $tag. The syntax is $tag_yourTagName.

To use your tag as an alias, the tag must be included in the group by field of the query.

Time Range (Overrides, Time Shifts, Info Display)

Time range configurations provide a way to override relative time ranges (such as the last 30 minutes) selected from the dashboard UI by end users.

Time Range Settings

Time Range Settings
Override Relative Time	The amount of time covered by the statistic, for example, the last hour (`1h`) or last thirty minutes (`30m`). This setting overrides only relative time ranges selected by end users. When a user selects an absolute time and date range for the dashboard, the override is disabled.
Add Time Shift	How long ago the covered time range ended, for example, `1s` for one second ago.
Hide Time Override Info	Hides information about the override time range settings from the singlestat or table, such as `30 minutes, ending 1 second ago`.

Override Relative Time

The amount of time covered by the statistic, for example, the last hour (1h) or last thirty minutes (30m). This setting overrides only relative time ranges selected by end users. When a user selects an absolute time and date range for the dashboard, the override is disabled.

Add Time Shift

How long ago the covered time range ended, for example, 1s for one second ago.

Hide Time Override Info

Hides information about the override time range settings from the singlestat or table, such as 30 minutes, ending 1 second ago.

Options (Data and Pagination Settings)

In the Options configuration tab, you can set layout, column, and pagination options for tables in a custom dashboard.

Data Settings (Options tab)

Provide time series data transformation, column, and paging configurations.

Value Settings

Value Settings
Time Series to Rows	Creates a table with values for a given metric at a given time period. Like Time Series to Columns, the first column, Time, is for timestamps (such as `2018-04-25 06:37:40`). However, subsequent columns are Metric (for listing specific metrics, such as `worker-0`) and Value for listing the values of the metric at that time period.
Time Series to Columns	Creates a table that shows values for a given metric at a given time period. Like Time Series to Rows, the first column, Time, is for timestamps. However, there is a column for each metric, such as `worker-0`, which lists the values of that metric at a given time period.
Time Series to Aggregations	Transforms time series into a table that calculates totals, averages, and so on for a given metric. The first column, Metric, is for metrics such as `worker-0`, and subsequent columns are for any combination of these values: Avg, Min, Max, Total, Current, or Count for a given metric. Note that this example uses color-coded thresholds (see the cell coloring in the Avg and Max cells and value coloring for the Min value).

Time Series to Rows

Creates a table with values for a given metric at a given time period. Like Time Series to Columns, the first column, Time, is for timestamps (such as 2018-04-25 06:37:40). However, subsequent columns are Metric (for listing specific metrics, such as worker-0) and Value for listing the values of the metric at that time period.

Time Series to Columns

Creates a table that shows values for a given metric at a given time period. Like Time Series to Rows, the first column, Time, is for timestamps. However, there is a column for each metric, such as worker-0, which lists the values of that metric at a given time period.

Time Series to Aggregations

Transforms time series into a table that calculates totals, averages, and so on for a given metric. The first column, Metric, is for metrics such as worker-0, and subsequent columns are for any combination of these values: Avg, Min, Max, Total, Current, or Count for a given metric.

Note that this example uses color-coded thresholds (see the cell coloring in the Avg and Max cells and value coloring for the Min value).

If you select Time Series to Aggregations, you can add pre-defined columns to the table.

Columns for Aggregations
Auto	Columns and their order are determined by the data query. Only available setting when Time Series to Rows, Time Series to Columns, Annotations, or Table is selected.
Avg	Averages the recorded data for a given metric.
Min	Provides the lowest recorded value for a given metric.
Max	Provides the highest recorded value for a given metric.
Total	Provides the sum of all values recorded in the table.
Current	Shows the current value for a given metric.
Count	Provides the total number of data points collected on the metric.

Columns for Aggregations

Auto

Columns and their order are determined by the data query. Only available setting when Time Series to Rows, Time Series to Columns, Annotations, or Table is selected.

Avg

Averages the recorded data for a given metric.

Min

Provides the lowest recorded value for a given metric.

Max

Provides the highest recorded value for a given metric.

Total

Provides the sum of all values recorded in the table.

Current

Shows the current value for a given metric.

Count

Provides the total number of data points collected on the metric.

Paging (Options tab)

In the Options configuration tab, you can set pagination properties for tables so they don’t become too long and are more manageable.

Paging Properties
Rows per Page	Number of table rows allowed per page.
Scroll	Checkbox for making the table scrollable.
Font Size	Percentage of the default font size from 80% to 250%.

Paging Properties

Rows per Page

Number of table rows allowed per page.

Scroll

Checkbox for making the table scrollable.

Font Size

Percentage of the default font size from 80% to 250%.

Column Styles (Options, Data Types, Thresholds, Links)

In the Column Styles configuration tab, you can create (+Add) and apply rules available for table columns.

To remove a rule, you need to click it, then find and click the Remove Rule button near the bottom left of the screen.

Options (Column Styles tab)

Options

Options
Apply To Columns Named	Identifies the column or columns to which the rule applies. Provide the name or a regular expression (regex) that matches the name of one or more columns in the table. For a regex, use this syntax: `/my.*regex/`
Column Header	Provides a title for the column. For example, if you add the `Avg` column to a table that aggregates data, you might change the column name to `Average`. You can use strings such as `$1` for a regular expression.
Render Value As Link	Treats values in the column as a link that you can configure through the Link settings.

Apply To Columns Named

Identifies the column or columns to which the rule applies. Provide the name or a regular expression (regex) that matches the name of one or more columns in the table. For a regex, use this syntax: /my.*regex/

Column Header

Provides a title for the column. For example, if you add the Avg column to a table that aggregates data, you might change the column name to Average. You can use strings such as $1 for a regular expression.

Render Value As Link

Treats values in the column as a link that you can configure through the Link settings.

Link (Column Styles tab)

In the Column Styles configuration tab, you can configure a link from a value to a specified web page.

Link settings are available only when Render Value As Link is checked.

Link
URL	Specifies a URL that you can open when you click a value in the column.
Tooltip	For providing a description of the link. This text appears when the end user hovers over the cell with the link. Use the same variables as for URL.
Open In New Tab	Displays the web content in a new browser tab when you click on the value.

Link

URL

Specifies a URL that you can open when you click a value in the column.

Tooltip

For providing a description of the link. This text appears when the end user hovers over the cell with the link. Use the same variables as for URL.

Open In New Tab

Displays the web content in a new browser tab when you click on the value.

Type

Type
Type	Data type for values in the column. Valid values are Number, String, Date, and Hidden.
Unit	Label for the unit of measure to use for the value, such as `bytes` and `megabytes/second`. It is important to know the data type for your value before adding this label to the value. A wide variety of units are available.
Decimals	The level of precision allowed for a decimal value, for example, `2` to limit a value of `10.12345` to `10.12`.

Type

Data type for values in the column. Valid values are Number, String, Date, and Hidden.

Unit

Label for the unit of measure to use for the value, such as bytes and megabytes/second. It is important to know the data type for your value before adding this label to the value. A wide variety of units are available.

Decimals

The level of precision allowed for a decimal value, for example, 2 to limit a value of 10.12345 to 10.12.

Thresholds (Column Styles tab)

In the Column Styles configuration tab, you can set thresholds for your data if Type is set to Number.

Thresholds
Thresholds	Comma-separated values, for example, `50000000,100000000`. Values between the two values might be treated as warning values. Values below the first value might be treated as acceptable, while values above the second value might be treated as errors. Note that your threshold values must match the unit of measure used for your data (for example, `byte`) even if the specified Unit is converted to MB or GB in the table.
Color Mode	Indicates whether to apply the color code to the Value in a cell, to the Cell, to the entire Row, or whether color coding is Disabled.
Color	Color used to code values below (left-most color box), between (middle color box), and above (right-most color box) the specified threshold settings. For example, green values might represent OK, yellow a warning, and red an error. You can also invert the color coding.

Thresholds

Comma-separated values, for example, 50000000,100000000. Values between the two values might be treated as warning values. Values below the first value might be treated as acceptable, while values above the second value might be treated as errors. Note that your threshold values must match the unit of measure used for your data (for example, byte) even if the specified Unit is converted to MB or GB in the table.

Color Mode

Indicates whether to apply the color code to the Value in a cell, to the Cell, to the entire Row, or whether color coding is Disabled.

Color

Color used to code values below (left-most color box), between (middle color box), and above (right-most color box) the specified threshold settings. For example, green values might represent OK, yellow a warning, and red an error. You can also invert the color coding.
