REST Connect Connector Generator

The Exchange backend uses REST Connect to transparently convert a REST API specification to a Mule 4 connector. You can use this connector as you would any other in Anypoint Studio.

Access Generated Connectors

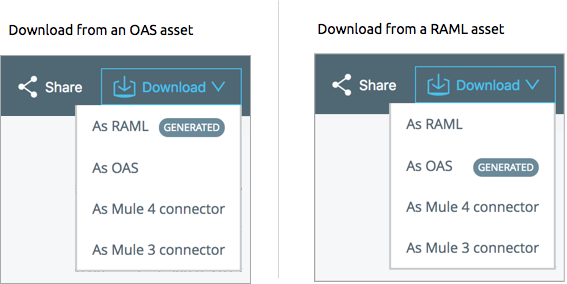

In Exchange, download the generated connector from the Download menu.

After deploying a REST asset to Exchange, refresh your screen to ensure that all download options are available.

Mule 4 connectors download as JAR files.

API Specification Format Support

REST Connect supports these API specification formats:

OAS 3 - JSON
OAS 3 - YAML
OAS 2 - JSON
OAS 2 - YAML
RAML 1.0

Security Scheme Support

REST Connect supports these security schemes:

Basic Authentication
OAuth 2.0 Client Credentials
OAuth 2.0 Authorization Code
Pass Through
Digest Authentication

If you publish an API specification with an unsupported authentication type, you receive an alert email. If this happens, update your API specification to use one of the supported security schemes.

If the operations defined in your API specification support multiple security schemes, the one that comes first in the list of supported schemes is used.

Basic Authentication

RAML Example:

#%RAML 1.0
title: Dropbox API
version: 1
baseUri: https://api.dropbox.com/{version}
securitySchemes:
  basic:
    description: |
      This API supports Basic Authentication.
    type: Basic Authentication

OAS Example:

openapi: 3.0.3
info:
  title: Dropbox API
  version: "1"

servers:
  - url: https://api.dropbox.com/{version}
    variables:
      version:
        default: "1"

components:
  securitySchemes:
    basic:
      type: http
      scheme: basic
      description: This API supports Basic Authentication.

security:
  - basic: []

OAuth 2.0 Client Credentials

RAML Example:

#%RAML 1.0
version: v1
title: Deadlines API
baseUri: http://localhost/deadlines
securitySchemes:
    oauth_2_0:
        description: Deadlines API supports OAuth 2.0 for authenticating all API requests.
        type: OAuth 2.0
        describedBy:
            headers:
                Authorization:
                    description: Sends a valid OAuth 2 access token.
                    type: string
            responses:
                401:
                    description: Bad or expired token.
                403:
                    description: Bad OAuth request.
        settings:
            accessTokenUri: https://api.example.com/1/oauth2/token
            authorizationGrants: [ client_credentials ]

/deadlines:
    get:
        securedBy: [oauth_2_0]
        displayName: Get deadlines.
        description: Get a list of all registered deadlines.
        responses:
            200:
                body:
                    application/json:
                        example: '[ { "rest-connect": "2017-03-13" } ]'

OAS Example:

openapi: 3.0.3
info:
  title: Deadlines API
  version: v1

servers:
  - url: http://localhost/deadlines

paths:
  /deadlines:
    get:
      summary: Get deadlines.
      description: Get a list of all registered deadlines.
      security:
        - oauth_2_0: []
      responses:
        "200":
          description: Successful response
          content:
            application/json:
              example:
                - rest-connect: "2017-03-13"

components:
  securitySchemes:
    oauth_2_0:
      type: oauth2
      description: Deadlines API supports OAuth 2.0 for authenticating all API requests.
      flows:
        clientCredentials:
          tokenUrl: https://api.example.com/1/oauth2/token

OAuth 2.0 Authorization Code

RAML Example:

#%RAML 1.0
version: v1
title: Github API
baseUri: https://api.github.com

securitySchemes:
  oauth_2_0:
    description: |
      OAuth2 is a protocol that lets external apps request authorization to private details
      in a user's GitHub account without getting their password. This is preferred over
      Basic Authentication because tokens can be limited to specific types of data,
      and can be revoked by users at any time.
    type: OAuth 2.0
    describedBy:
      headers:
        Authorization:
          description: |
            Used to send a valid OAuth 2 access token.

      responses:
        404:
          description: Unauthorized
    settings:
      authorizationUri: https://github.com/login/oauth/authorize
      accessTokenUri: https://github.com/login/oauth/access_token
      authorizationGrants: [ authorization_code ]
      scopes:
        - "user"
        - "user:email"
        - "user:follow"
        - "public_repo"
        - "repo"
        - "repo_deployment"
        - "repo:status"
        - "delete_repo"
        - "notifications"
        - "gist"
        - "read:repo_hook"
        - "write:repo_hook"
        - "admin:repo_hook"
        - "admin:org_hook"
        - "read:org"
        - "write:org"
        - "admin:org"
        - "read:public_key"
        - "write:public_key"
        - "admin:public_key"

OAS Example:

openapi: 3.0.3
info:
  title: Github API
  version: v1

servers:
  - url: https://api.github.com

components:
  securitySchemes:
    oauth_2_0:
      type: oauth2
      description: |
        OAuth2 is a protocol that lets external apps request authorization to private details
        in a user's GitHub account without getting their password. This is preferred over
        Basic Authentication because tokens can be limited to specific types of data,
        and can be revoked by users at any time.
      flows:
        authorizationCode:
          authorizationUrl: https://github.com/login/oauth/authorize
          tokenUrl: https://github.com/login/oauth/access_token
          scopes:
            user: ""
            user:email: ""
            user:follow: ""
            public_repo: ""
            repo: ""
            repo_deployment: ""
            repo:status: ""
            delete_repo: ""
            notifications: ""
            gist: ""
            read:repo_hook: ""
            write:repo_hook: ""
            admin:repo_hook: ""
            admin:org_hook: ""
            read:org: ""
            write:org: ""
            admin:org: ""
            read:public_key: ""
            write:public_key: ""
            admin:public_key: ""

Pass-through

RAML Example:

#%RAML 1.0
title: Customer API
version: 1
baseUri: https://api.customer.com/v2
securitySchemes:
  passthrough:
    description: |
      This API supports Pass Through Authentication.
    type: Pass Through
    describedBy:
      headers:
        api_key:
          type: string

OAS Example:

openapi: 3.0.3
info:
  title: Customer API
  version: "1"

servers:
  - url: https://api.customer.com/v2

components:
  securitySchemes:
    passthrough:
      type: apiKey
      in: header
      name: api_key
      description: |
        This API supports Pass Through Authentication.

Change an Auto-Generated Connector’s Name

REST Connect generates the names of operations based on the operationName, displayName, and endpoint attributes, in that order.

To modify a generated connector name using RAML, change the text in displayName, for example:

#%RAML 1.0
title: Sample API
baseUri: https://jsonplaceholder.typicode.com
version: 0.1
mediaType: application/json

  ...
  /{postId}:
    uriParameters:
      postId: integer

    get:
      displayName: Get a post by ID.
      responses:
        200:
          body:
            type: Post

To modify a generated connector name using OAS, change the text in summary, for example:

openapi: 3.0.3
info:
  title: Sample API
  version: "0.1"

servers:
  - url: https://jsonplaceholder.typicode.com

paths:
  /{postId}:
    parameters:
      - name: postId
        in: path
        required: true
        schema:
          type: integer
    get:
      summary: Get a post by ID.
      responses:
        "200":
          description: Successful response
          content:
            application/json:
              schema:
                $ref: "#/components/schemas/Post"

components:
  schemas:
    Post: {}

You can also modify a generated connector name by pointing to the REST Connect library and using the operationName annotation (RAML) or x-rest-connect-operationName extension (OAS) from a method such as GET, POST, and DELETE.

RAML Example using operationName:

#%RAML 1.0
title: Sample API
baseUri: https://jsonplaceholder.typicode.com
version: 0.1
mediaType: application/json

uses:
  rest-connect: exchange_modules/org.mule.connectivity/rest-connect-library/1.0.0/rest-connect-library.raml

  ...
  /{postId}:
    uriParameters:
      postId: integer

    get:
      (rest-connect.operationName): Retrieve a post by id
      displayName: Get a post by ID.
      responses:
        200:
          body:
            type: Post

OAS Example using x-rest-connect-operationName:

openapi: 3.0.3
info:
  title: Sample API
  version: "0.1"

servers:
  - url: https://jsonplaceholder.typicode.com

paths:
  /{postId}:
    parameters:
      - name: postId
        in: path
        required: true
        schema:
          type: integer

    get:
      summary: Get a post by ID.
      x-rest-connect-operationName: Retrieve a post by id
      responses:
        '200':
          description: Successful response
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Post'

components:
  schemas:
    Post:
      type: object
      additionalProperties: true

Metadata Limitations

REST Connect generates metadata for each operation based on your schema definition in the request and response for each method in your API specification. REST Connect cannot generate metadata based on examples in the specification.

REST Connect supports only one input/output type and uses the first one declared in the API specification. You can change this behavior by using the default property from the REST Connect library.

The following examples uses the REST Connect library:

RAML Example:

#%RAML 1.0
title: Sample API
baseUri: https://jsonplaceholder.typicode.com
version: 0.1
mediaType: application/json

uses:
  rest-connect: exchange_modules/org.mule.connectivity/rest-connect-library/1.0.0/rest-connect-library.raml

  ...
  /{postId}:
    uriParameters:
      postId: integer

    get:
      displayName: Get a post by ID.
      responses:
        200:
          body:
            application/json:
             type: string
            application/xml:
             (rest-connect.default): //this sets application/xml response by default
             type: string

OAS Example:

openapi: 3.0.3
info:
  title: Sample API
  version: "0.1"

servers:
  - url: https://jsonplaceholder.typicode.com

paths:
  /{postId}:
    parameters:
      - name: postId
        in: path
        required: true
        schema:
          type: integer

    get:
      summary: Get a post by ID.
      responses:
        '200':
          description: Successful response
          content:
            application/json:
              schema:
                type: string
            application/xml:
              x-rest-connect-default: true  # indicates XML is the default
              schema:
                type: string

Reserved Keywords

Valid identifiers for REST Connect must not use any reserved Java or Mule keywords.

The following list shows the reserved Java keywords to avoid when naming valid identifiers for REST Connect:

abstract
assert
boolean
break
byte
case
catch
char
class
const
continue
default
do
double
else
extends
false
final
finally
float
for
goto
if
implements
import
instanceof
int
interface
long
native
new
null
package
private
protected
public
return
short
static
strictfp
super
switch
synchronized
this
throw
throws
transient
true
try
void
volatile
while

The following list shows the reserved Mule keywords to avoid when naming valid identifiers for REST Connect:

friendlyName
name
operationName
target
targetValue

Generating Connectors With TLS Support

Mule 4 (SmartConnector) connectors support Transport Layer Security (TLS).

When you enable TLS support and generate a connector:

The connector is upgraded to run on Mule runtime 4.6.
TLS is enabled, so that Anypoint Studio displays a form for collecting the connector’s required TLS connection configuration information. To see the connection configuration properties, select Edit inline or Global reference from the Tls context field.

To enable TLS, add a properties.json file to the root directory of the Design Center API project for your app:

In Design Center, Select Files + > New file.
In the Add new file window, select API format > other, name the file properties.json, and then click Create.

In the new file, add "tlsEnabled": true.

Add the properties.json file only if you want to enable TLS support or explicitly opt out of it. If you don’t add a properties.json file to your API project, the REST Connect Service generates the standard connector artifacts without TLS support.

After you add the properties.json file and enable TLS, Anypoint Studio displays the TLS configuration form for the connector.

When you add a properties.json file to your project, ensure that the tlsEnabled property is set correctly with a valid boolean value of either true to enable TLS or false to explicitly disable TLS. If the properties.json file is invalid or the property is incorrectly set, the connector generation is aborted.

View Mule Runtime Version and Compatible Java Version

To view the minimum Mule runtime version or the compatible Java versions for the patch versions of a connector:

From Exchange, select a connector.
In the asset details page, click View versions.

Upgrading a REST Connect Generated Connector

To update your REST-Connect-generated connector to use the latest version of Mule runtime and to be compatible with Java 17:

In Design Center, open your API project.
Click Publish.

The connector is regenerated.

If you want to add TLS support to your application, add it before re-generating the connector so that you only have to test your app once.

Known Limitations

Anypoint Platform, including REST Connect, does not support API fragments for OAS.
Chinese characters are not supported in API specs or their dependencies. Japanese characters are supported in the description and example tags.
