Manage Custom Fields

Exchange administrators and organization owners can create custom fields to extend the Exchange asset metadata model and add custom data to any type of asset.

A custom field is a key-value pair that can be added to an asset version.

Custom fields are managed, which means each asset type has a specific schema defined by an administrator. This enables Exchange to validate the values. For example, an asset can have a custom field configuration named "SupportEndDate," and Exchange can ensure that the value set for this field is a valid date.

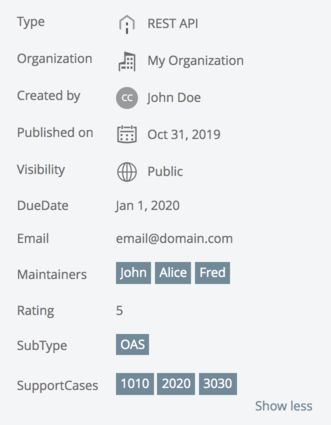

Exchange shows custom fields in an asset’s overview section. In this example SubType is an enum, Rating is a number, DueDate is a date, Email is a text field, SupportCases is a list of numbers, and Maintainers is a list of strings.

custom fields

Get an Access Token

Get an access token with a cURL command such as the following. Optionally, instead of sending HTTP commands with cURL, you can use Postman or another application.

Replace YOUR_USERNAME with your Anypoint Platform user account name and replace YOUR_PASSWORD with your password.

ACCESS_TOKEN=$(curl https://anypoint.mulesoft.com/accounts/login -XPOST -d "username=YOUR_USERNAME&password=YOUR_PASSWORD" | jq -r ".access_token")

Use this access token in your API calls to configure and assign custom fields.

Supported Types

Exchange supports custom fields of the types enum, number, date, text, list of numbers, and list of strings.

Enum

This example shows how to create a custom field of the type enum, a list of enumerated values, with the name SubType and the possible values OAS and RAML. Create your own custom field by setting the organization ID and changing the data parameters after the -d flag.

curl -X POST \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/fields \
  -H 'Authorization: bearer $ACCESS_TOKEN’ \
  -H 'Content-Type: application/json' \
  -d '{
	"dataType": "enum",
	"acceptedValues": ["OAS","RAML"],
	"displayName": "SubType",
	"tagKey": "subType"
  }'

This example shows how to add this field to any asset in an organization. Add the field to your own asset by setting the organization ID, group ID, asset ID, and version in the URL, changing the tag key subType to your tag key, and changing the data parameters after the -d flag.

curl -X PUT \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/assets/:groupId/:assetId/:version/tags/fields/subType \
  -H 'Authorization: bearer $ACCESS_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
	"tagValue": ["OAS"]
  }'

Number

This example shows how to create a custom field of the type number with the name Rating. Create your own custom field by setting the organization ID and changing the data parameters after the -d flag.

curl -X POST \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/fields \
  -H 'Authorization: bearer $ACCESS_TOKEN’ \
  -H 'Content-Type: application/json' \
  -d '{
	"dataType": "number",
	"displayName": "Rating",
	"tagKey": "rating"
  }'

This example shows how to add this field to any asset in an organization. Add the field to your own asset by setting the organization ID, group ID, asset ID, and version in the URL, changing the tag key rating to your tag key, and changing the data parameters after the -d flag.

curl -X PUT \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/assets/:groupId/:assetId/:version/tags/fields/rating \
  -H 'Authorization: bearer $ACCESS_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
	"tagValue": 5
  }'

Date

This example shows how to create a custom field of the type date with the name DueDate. Create your own custom field by setting the organization ID and changing the data parameters after the -d flag.

curl -X POST \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/fields \
  -H 'Authorization: bearer $ACCESS_TOKEN’ \
  -H 'Content-Type: application/json' \
  -d '{
	"dataType": "date",
	"displayName": "DueDate",
	"tagKey": "dueDate"
  }'

This example shows how to add this field to any asset in an organization. Add the field to your own asset by setting the organization ID, group ID, asset ID, and version in the URL, changing the tag key dueDate to your tag key, and changing the data parameters after the -d flag.

curl -X PUT \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/assets/:groupId/:assetId/:version/tags/fields/dueDate \
  -H 'Authorization: bearer $ACCESS_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
	"tagValue": "2020-01-01T20:00:00.000Z"
}'

Text

This example shows how to create a custom field of the type text with the name email. Create your own custom field by setting the organization ID and changing the data parameters after the -d flag.

curl -X POST \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/fields \
  -H 'Authorization: bearer $ACCESS_TOKEN’ \
  -H 'Content-Type: application/json' \
  -d '{
	"dataType": "text",
	"displayName": "Email",
	"tagKey": "email"
  }'

This example shows how to add this field to any asset in an organization. Add the field to your own asset by setting the organization ID, group ID, asset ID, and version in the URL, changing the tag key email to your tag key, and changing the data parameters after the -d flag.

curl -X PUT \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/assets/:groupId/:assetId/:version/tags/fields/email \
  -H 'Authorization: bearer $ACCESS_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
	"tagValue": "john@doe.com"
  }'

List of Numbers

This example shows how to create a custom field of the type number-list with the name SupportCases. Create your own custom field by setting the organization ID and changing the data parameters after the -d flag.

curl -X POST \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/fields \
  -H 'Authorization: bearer $ACCESS_TOKEN’ \
  -H 'Content-Type: application/json' \
  -d '{
	"dataType": "number-list",
	"displayName": "SupportCases",
	"tagKey": "supportCases"
  }'

This example shows how to add this field to any asset in an organization. Add the field to your own asset by setting the organization ID, group ID, asset ID, and version in the URL, changing the tag key supportCases to your tag key, and changing the data parameters after the -d flag.

curl -X PUT \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/assets/:groupId/:assetId/:version/tags/fields/supportCases \
  -H 'Authorization: bearer $ACCESS_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
	"tagValue": [1010,2020,3030]
  }'

List of Strings

This example shows how to create a custom field of the type text-list with the name Maintainers. Create your own custom field by setting the organization ID and changing the data parameters after the -d flag.

curl -X POST \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/fields \
  -H 'Authorization: bearer $ACCESS_TOKEN’ \
  -H 'Content-Type: application/json' \
  -d '{
	"dataType": "text-list",
	"displayName": "Maintainers",
	"tagKey": "maintainers"
  }'

This example shows how to add this field to any asset in an organization. Add the field to your own asset by setting the organization ID, group ID, asset ID, and version in the URL, changing the tag key maintainers to your tag key, and changing the data parameters after the -d flag.

curl -X PUT \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/assets/:groupId/:assetId/:version/tags/fields/maintainers \
  -H 'Authorization: bearer $ACCESS_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
	"tagValue": ["John", "Alice", "Fred"]
  }'

Restrict Asset Types

You can restrict a custom field so that it can only be added to certain types of assets. This example shows how to create a custom field that only applies to REST APIs. Create your own custom field by setting the organization ID and changing the data parameters after the -d flag.

curl -X POST \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/fields \
  -H 'Authorization: bearer $ACCESS_TOKEN’ \
  -H 'Content-Type: application/json' \
  -d '{
	"dataType": "enum",
	"acceptedValues": ["OAS","RAML"],
	"displayName": "SubType",
	"tagKey": "subType",
	"assetTypeRestrictions": ["rest-api"]
  }'

Delete a Custom Field from an Asset Version

This example shows how to delete the custom field subType from a specific asset version. Delete a custom field by setting the organization ID, group ID, asset ID, and version, and changing the tag key subType to your tag key.

curl -X DELETE \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/assets/:groupId/:assetId/:version/tags/fields/:subType \
  -H 'Authorization: bearer $ACCESS_TOKEN' \
  -H 'Content-Type: application/json'

Delete a Custom Field

This example shows how to delete the custom field subType from all assets in an organization. Delete a custom field by setting the organization ID and changing the tag key subType to your tag key.

curl -X DELETE \
  https://anypoint.mulesoft.com/exchange/api/v1/organizations/:organizationId/fields/:subType \
  -H 'Authorization: bearer $ACCESS_TOKEN’ \
  -H 'Content-Type: application/json'
